Product Parameters
| ITEM | WATT | LUMEM | VOLTAGE | CCT |
| MXEL-8266 | 300W | 36000lm | AC220V/AC110V/DC24V/DC12V | 3000K 4000K 5000K 6500K |
| 400W | 48000lm |
| 500W | 60000lm |
| OTHERS | Support for customizing wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc.Digital Smart System(DALl, DMX,0-10V) |
| COMMOM | MODEL: | MXEL-8266 | LED QTY: | 368PCS |
| POWER: | 300-500W | IP GRADE: | IP66 |
| BASE SPECIFICATIONS: | CREE3030 | ANTI CORROSION GRADE: | WF2 |
| LIGHTING ANGLE: | 45/60/90° | EXPLOSION PROOF GRADE: | Ex d e mb IIC |
| EFFICIENCY: | 120Lm/W | FREQUENCY: | 50/60Hz |
| POWER FACTOR: | >0.95 | LIGHT SOURCE: | LED |
| OPERATING TEMPERATURE: | -20~50ºC | STORAGE TEMPERATURE: | -20~50ºC |
| CRI: | ≥70 | LIFESPAN: | 100000 Hours |
| START-UP TIME: | ≤0.2s | WARRANTY: | 5 Years |

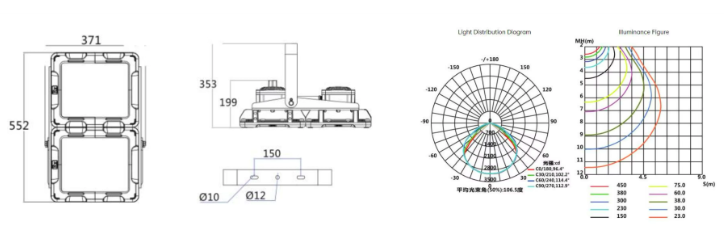

| SIZE: | Φ552×323×190mm | WEIGHT: | 21KG |
| CERT | ATEX, CE,IP66, IK10，ROHS,ISO9001 |
| FEATURES | Configuration: It adopts imported LED light source, with an average service life of up to 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, and has short-circuit and over-voltage protection functions, which greatly prolongs the service life of the lamps. Heat dissipation:explosion-proof electrical box and lamp holder double cavity design, large space size to ensure the assembly of various large-scale electrical appliances. Excellent heat dissipation performance, so that the LED chip and power supply temperature rise is reasonably controlled within a reasonable range, greatly ensuring the service life of the lamp. Light distribution: light projection is even and soft, especially suitable for all kinds of need to cast light, floodlights as a fixed lighting. Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. The surface of the lamp body will never corrode and never rust. Installation method: Various installation methods such as ceiling, suction wall and U-shaped anti-vibration bracket (angle adjustable) can be used as needed. |

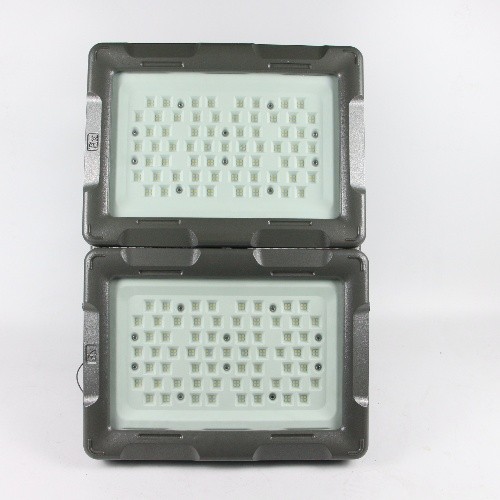

Product Details

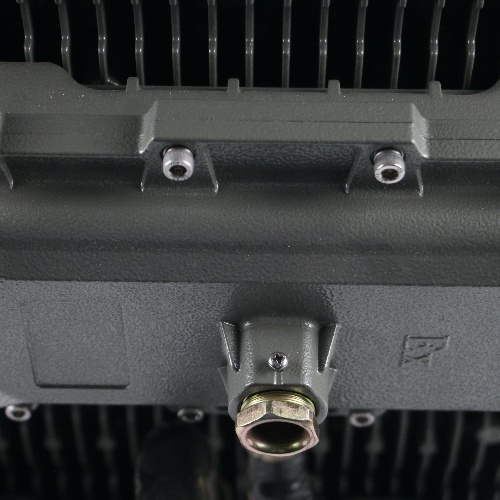

EXCELLENT HEAT CONDUCTIONAND STRONGER HEAT
The whole lamp adopts air diversion and heat dissipation structure design;
The radiator adopts special ADC12 alloy aluminum material for die casting, which is formedby high pressure die casting, with high
strength, fast heat conduction and strong heatdissipation;
Adopt silicone grease with thermal conductivity of 3.0, which can conduct heat more quickly

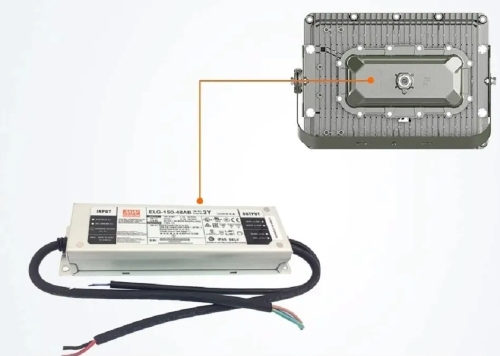

BRAND-DRIVEN AND MORE STABLE
Adopt first-line well-known brand power supply (optional Meanwell, Moso, DONE, InventronicsDriver, etc.), with guaranteed quality and three guarantees;
The powersupply adopts the latest wide voltage technology, which has the characteristicsof constant current output, lighting protection, surge protection, shortcircuit and overvoltage protection, etc. The powerfactor is as high as 0.99, and the quality is more stable;

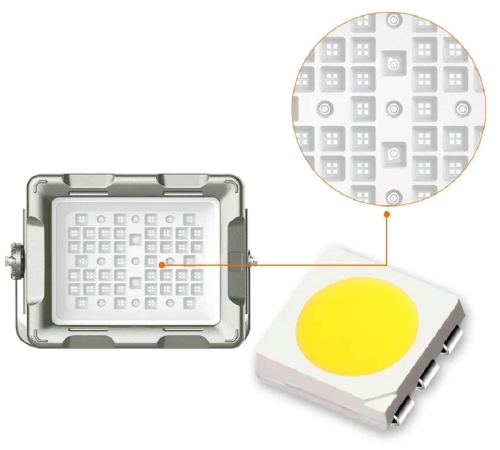

GOOD "CORE" AND HIGH LIGHT EFFICIENCY
The first-line brand CREE LED light-emitting chip is adopted, which has high brightness and high light efficiency, and the chip light efficiency is > 130 lm/W;
The performance is stable and the average service life of the chip is as long as 100,000 hours;
Smt array patch technology is adopted, which has high heat conduction efficiency and low light attenuation;

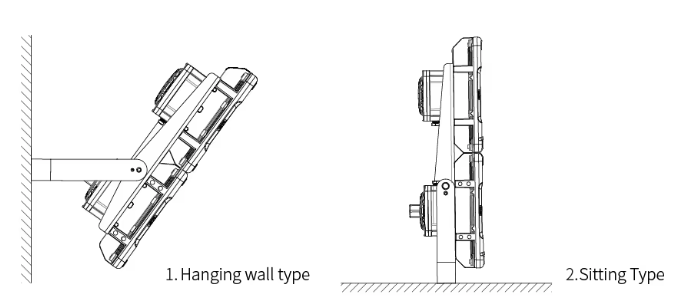

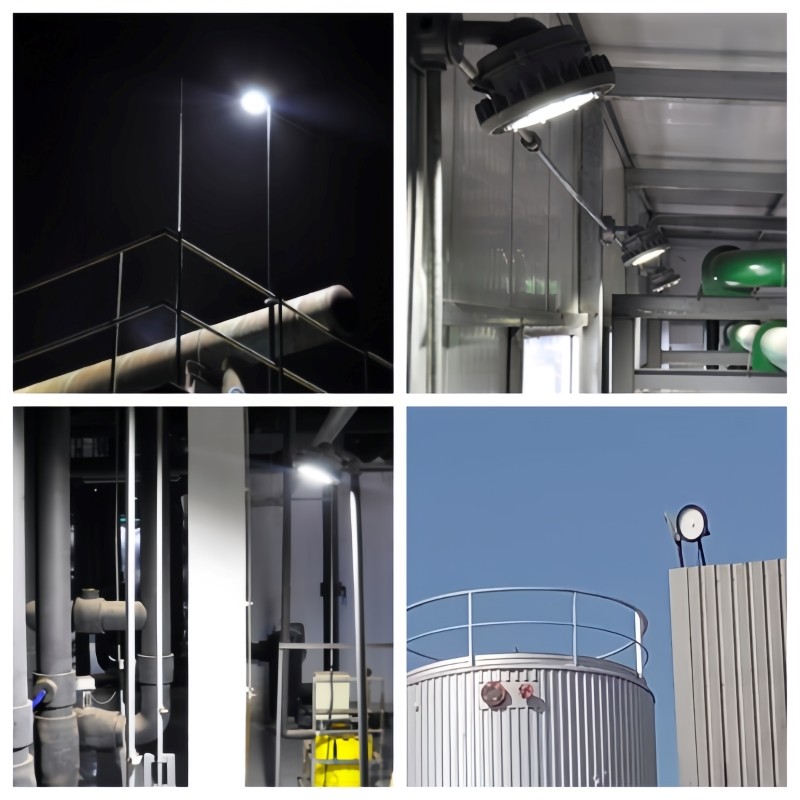

Product Install

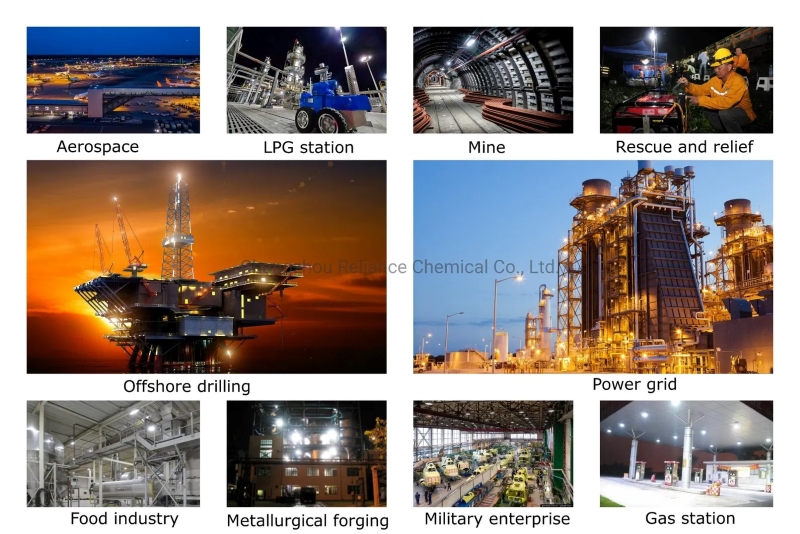

Product Applications
Oil and Gas Facilities
Chemical Processing Plants
Mining Operations
Industrial Zones with Hazardous Materials
Marine Environments
Wastewater Treatment Plants
Chemical Storage Areas
Railway and Highway Tunnels
High-Risk Industrial Zones
