Explosion-proof LED floodlight is a lighting solution tailored for high-risk environments, integrating multiple protection functions such as explosion-proof, waterproof, dustproof and anti-corrosion. Its core uses high-efficiency LED light source, which not only has outstanding brightness, but also has extremely low energy consumption, a lifespan of tens of thousands of hours, and long-lasting and stable light effect.
Product Description
| ITEM | WATT | LUMEN | SIZE | KG |
| MXEL-9193A | 50W | 6000lm | 360×267×50mm | 3.8kg |
| 70W | 8400lm | |||
| 80W | 9600lm | |||
| 100W | 12000lm | |||
| MXEL-9193B | 120W | 14400lm | 393×338×85mm | 5.75kg |
| 150W | 18000lm | |||
| MXEL-9193C | 180W | 21600lm | 495×338×85mm | 7.65kg |
| MXEL-9193D | 360W | 43200lm | 683.22×519.93×85mm | 15.4kg |
| OTHERS | Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc. Digital Smart System(DALl, DMX,0-10V) | |||
| COMMON | MODEL: | 9193 | EFFICIENCY: | 120Lm/W |
| RATED POWER: | 50-360W | Rated voltage: | AC220V/AC110V/DC24V/DC12V | |
| POWER FACTOR: | >0.95 | OPERATING TEMPERATURE: | -20~40ºC | |
| IP GRADE: | IP66 | ANTI-CORROSION GRADE: | WF2 | |
| BEAM ANGLE: | 100° | CRI: | ≥70RA | |
| LED QTY: | 95/144/192/384 pcs | BASE SPECIFICATIONS: | CREE3030 | |
| EXPLOSION PROOF GRADE: | Exd IIC T6 | LIFESPAN: | 100000 Hours | |
| CERT | ATEX, CE, IP66, IK10,ROHS,ISO9001 | |||
| FEATURES | Configuration: Imported LED light source is used, with an average service life of up to 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, has short circuit and overvoltage protection functions, and greatly prolongs the service life of the lamp. Heat dissipation: The upper and lower ventilation and convection structures are adopted to improve heat dissipation performance and avoid dust accumulation in traditional LED heat sinks. Light distribution: Using high-precision, high-transmittance optical devices, the light projection distance is longer and the illumination intensity is stronger. It is suitable for various places that require ultra-long light projection. Protection: IP66 protection level, anti-corrosion protection level can reach WF2, the surface of the lamp body is not easy to corrode and rust. Installation method: various installation methods such as ceiling type, sitting type, wall type, etc. can be adopted according to the needs. | |||
Product Details
Surface treatment
The lamp body is treated with high-voltage electrostatic spraying, and the screw fasteners are made of stainless steel. With high-precision processing technology, it has the characteristics of high corrosion resistance, high waterproofness, and high dust resistance.

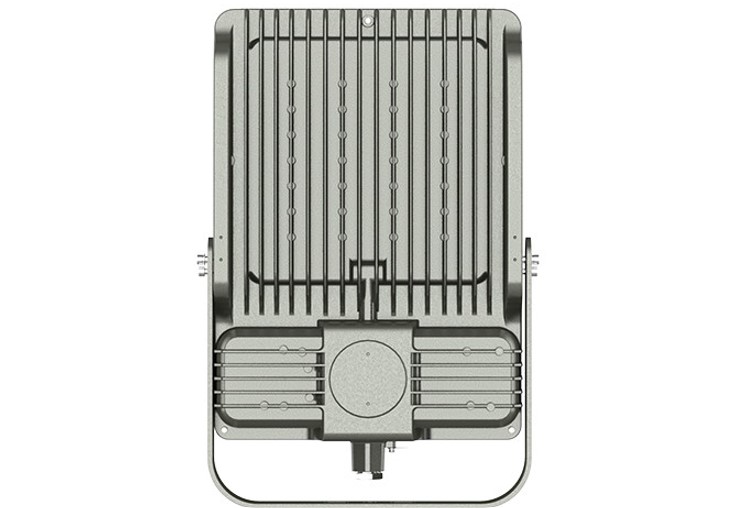

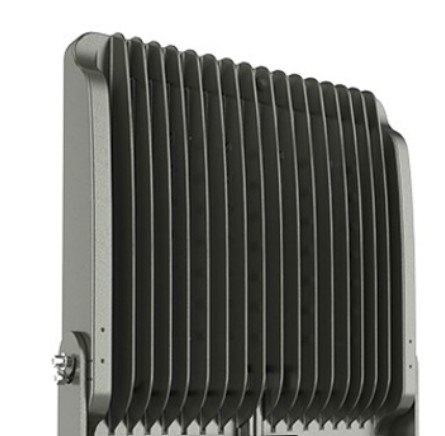

Heat dissipation performance
The light source radiator is constructed using a one-piece die-casting molding process, ensuring a robust and durable structure. This design provides exceptional thermal conductivity and efficient heat dissipation, effectively preventing overheating and maintaining optimal operating temperatures. As a result, it significantly enhances the stability and performance of the lamp, ultimately extending its lifespan and ensuring long-term reliability in various applications.

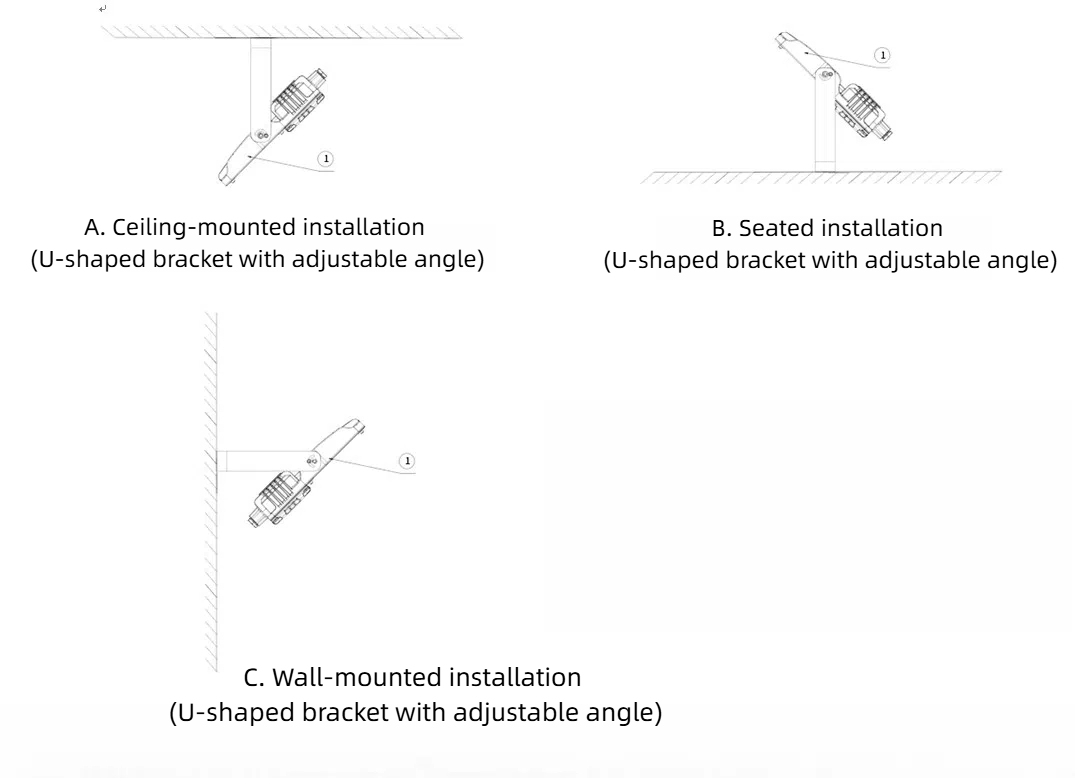

Product Installation

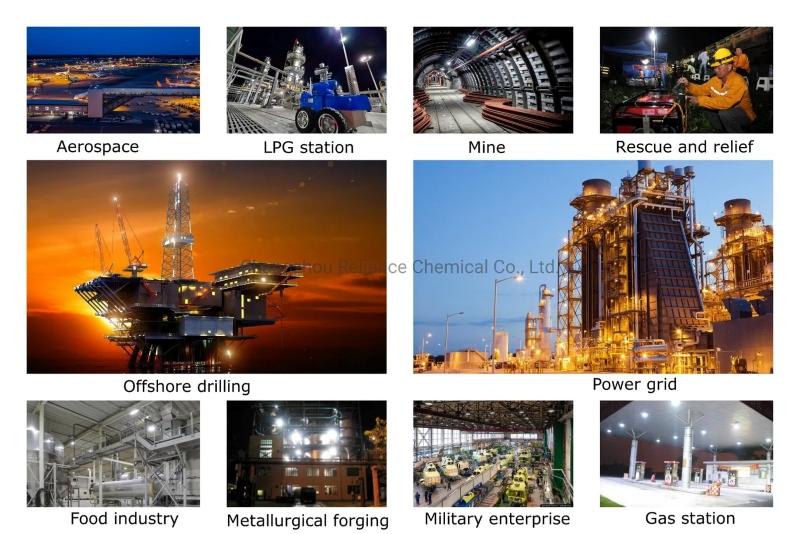

Product Application
Packaging
