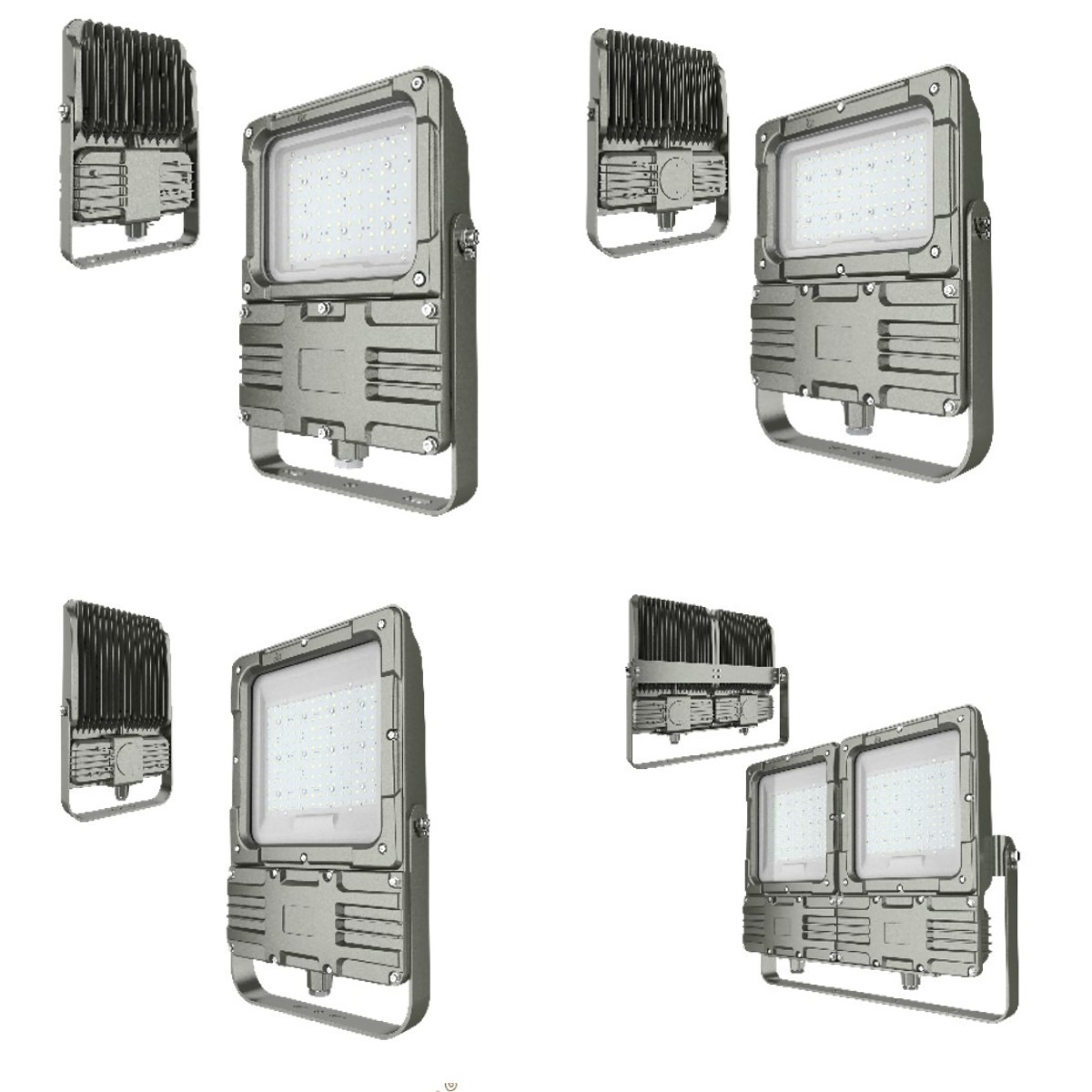

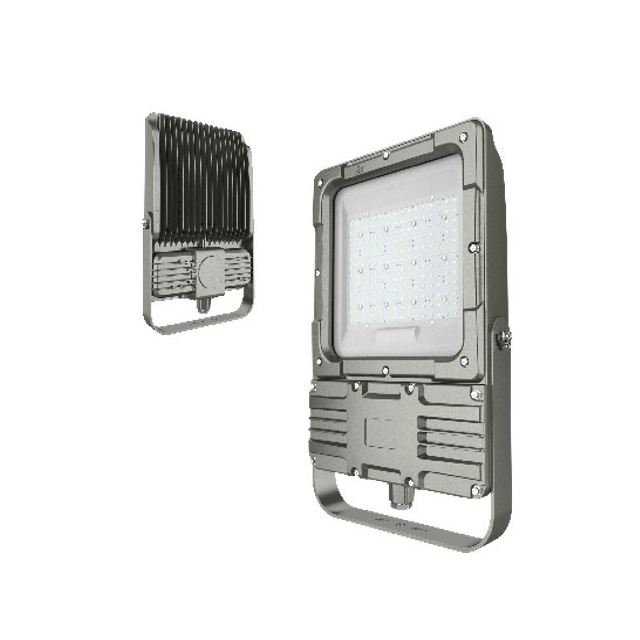

LED Projector Flood Light is a lighting device designed for hazardous environments, with explosion-proof, waterproof, dust-proof and anti-corrosion properties. It uses high-quality LED light sources, has the advantages of high brightness, low energy consumption and long life, stable light efficiency, and a service life of up to tens of thousands of hours.
Product Description
| ITEM | WATT | LUMEN | SIZE | KG |

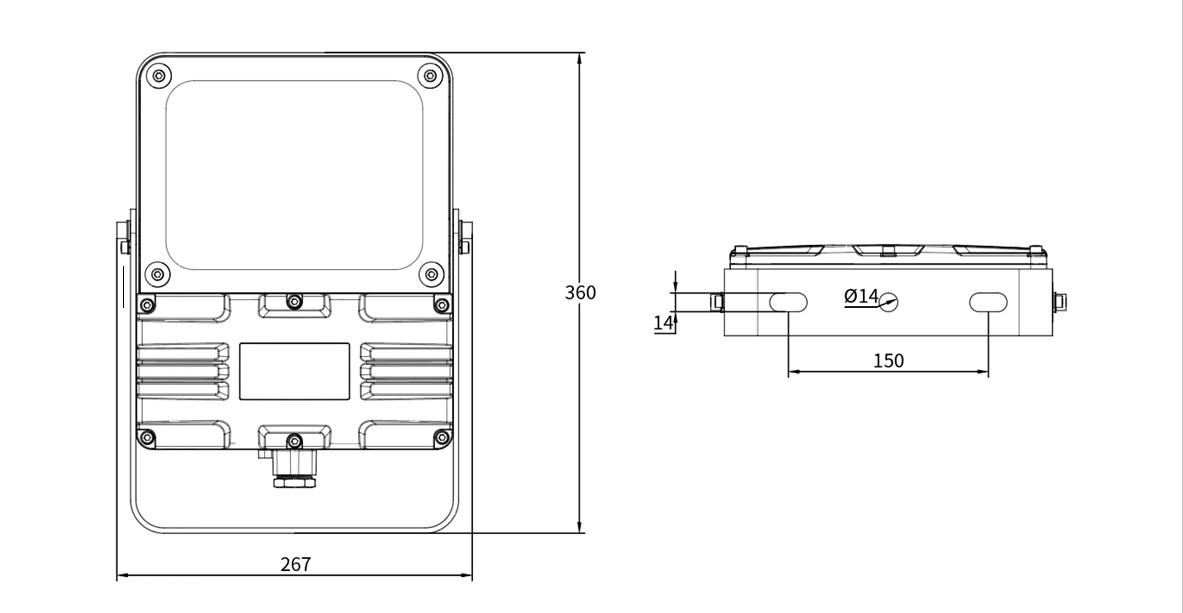

| MXEL-9193A | 50W | 6000lm | 360×267×50mm | 3.8kg |
| 70W | 8400lm | |||
| 80W | 9600lm | |||
| 100W | 12000lm | |||

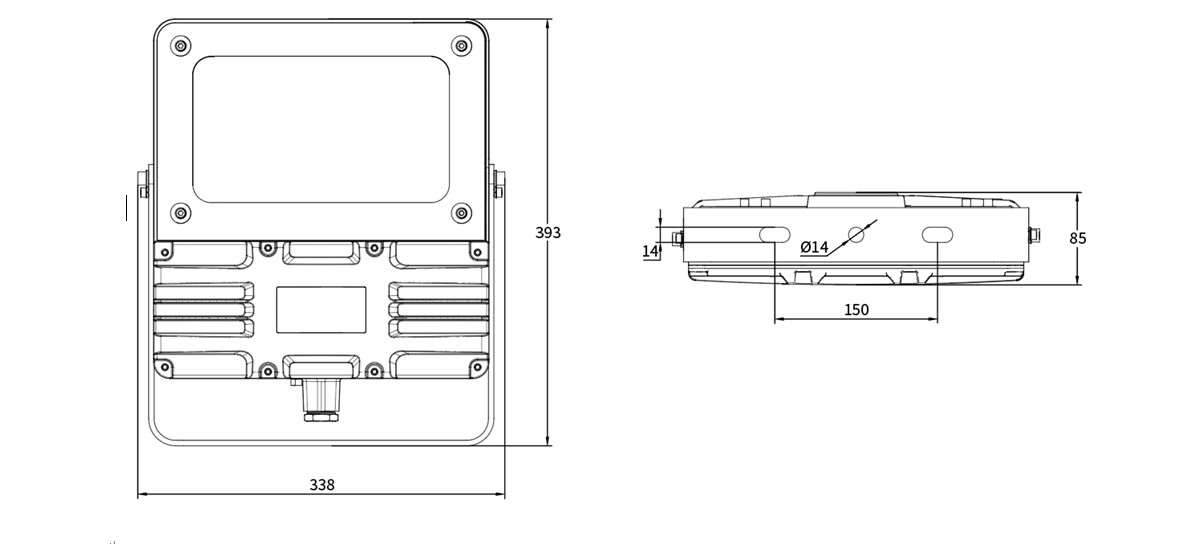

| MXEL-9193B | 120W | 14400lm | 393×338×85mm | 5.75kg |
| 150W | 18000lm | |||

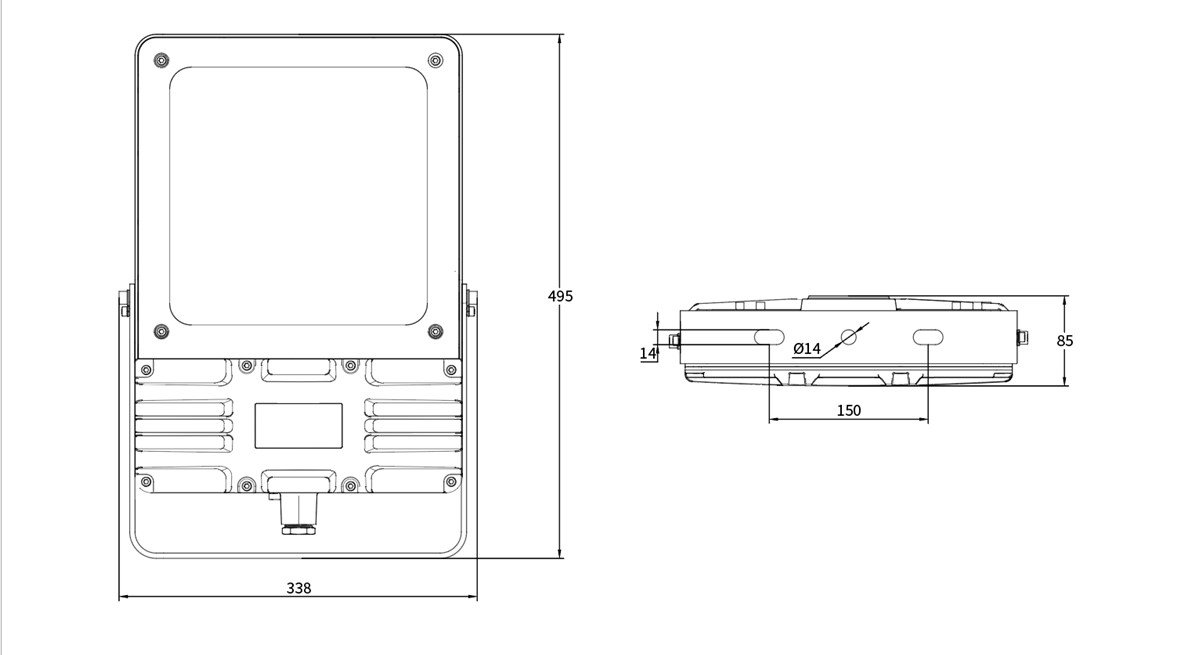

| MXEL-9193C | 180W | 21600lm | 495×338×85mm | 7.65kg |

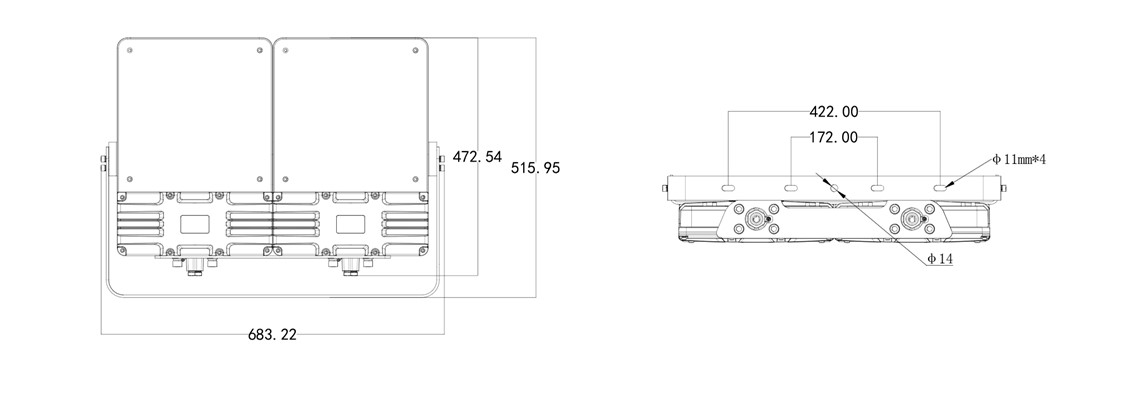

| MXEL-9193D | 360W | 43200lm | 683.22×519.93×85mm | 15.4kg |
| OTHERS | Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc. Digital Smart System(DALl, DMX,0-10V) | |||
| COMMON | MODEL: | 9193 | EFFICIENCY: | 120Lm/W |
| RATED POWER: | 50-360W | Rated voltage: | AC220V/AC110V/DC24V/DC12V | |
| POWER FACTOR: | >0.95 | OPERATING TEMPERATURE: | -20~40ºC | |
| IP GRADE: | IP66 | ANTI-CORROSION GRADE: | WF2 | |
| BEAM ANGLE: | 100° | CRI: | ≥70RA | |
| LED QTY: | 95/144/192/384 pcs | BASE SPECIFICATIONS: | CREE3030 | |
| EXPLOSION PROOF GRADE: | Exd IIC T6 | LIFESPAN: | 100000 Hours | |
| CERT | ATEX, CE, IP66, IK10,ROHS,ISO9001 | |||
Product Details

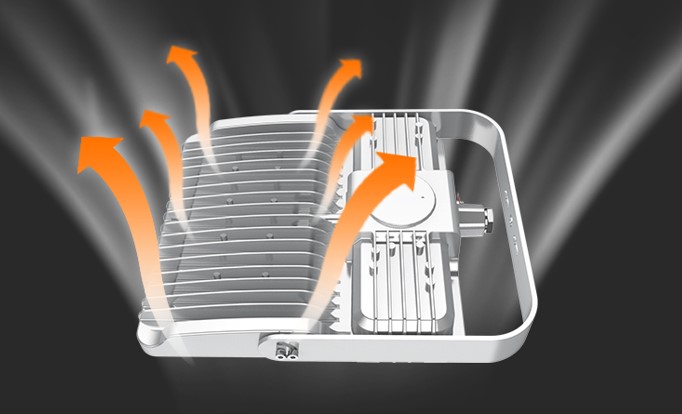

Excellent thermal conductivity, stronger heat dissipation
This LED Projector Flood Light has excellent heat dissipation performance and adopts an innovative air-conducting heat dissipation structure design to ensure efficient heat dissipation. The radiator is made of ADC12 aluminum alloy material and is formed in one piece through a high-pressure die-casting process. It is not only strong but also has excellent thermal conductivity, which further improves the heat dissipation effect. In addition, silicone grease with a thermal conductivity of up to 3.0 is used inside the lamp, which can quickly conduct heat and ensure that the entire lamp maintains a stable temperature during long-term operation, extending its service life and improving its performance.

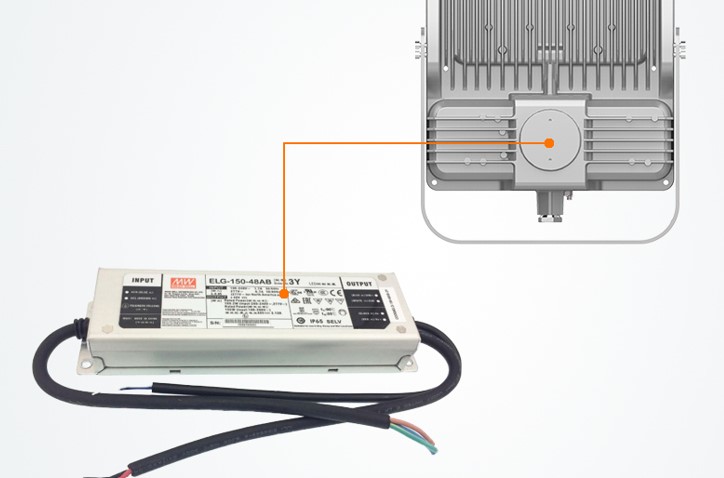

Brand driven, more stable
Driven by renowned brands, ensuring superior stability and reliability. The LED Projector Flood Light is equipped with high-quality power supplies from well-known brands (options include Mean Well, Moso, DONE, OSRAM, Inventec, etc.), all backed by a comprehensive three-guarantee service. The power supply features advanced wide-voltage technology, delivering constant current output and integrated protections against lightning, surges, short circuits, and overvoltage. With a power factor of up to 0.99, it guarantees exceptional performance and unparalleled stability.

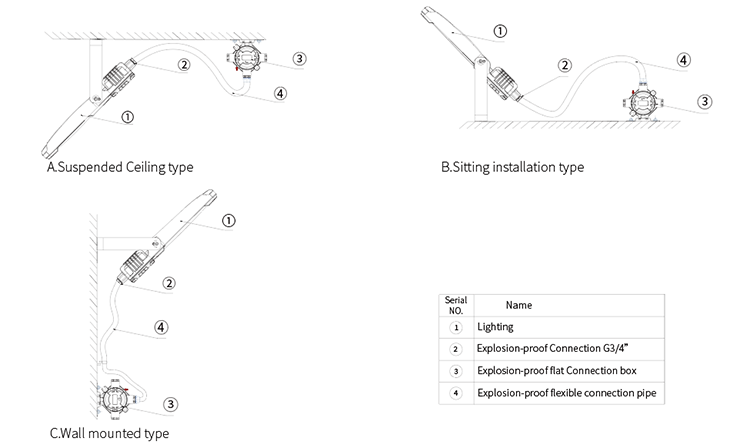

Product Install

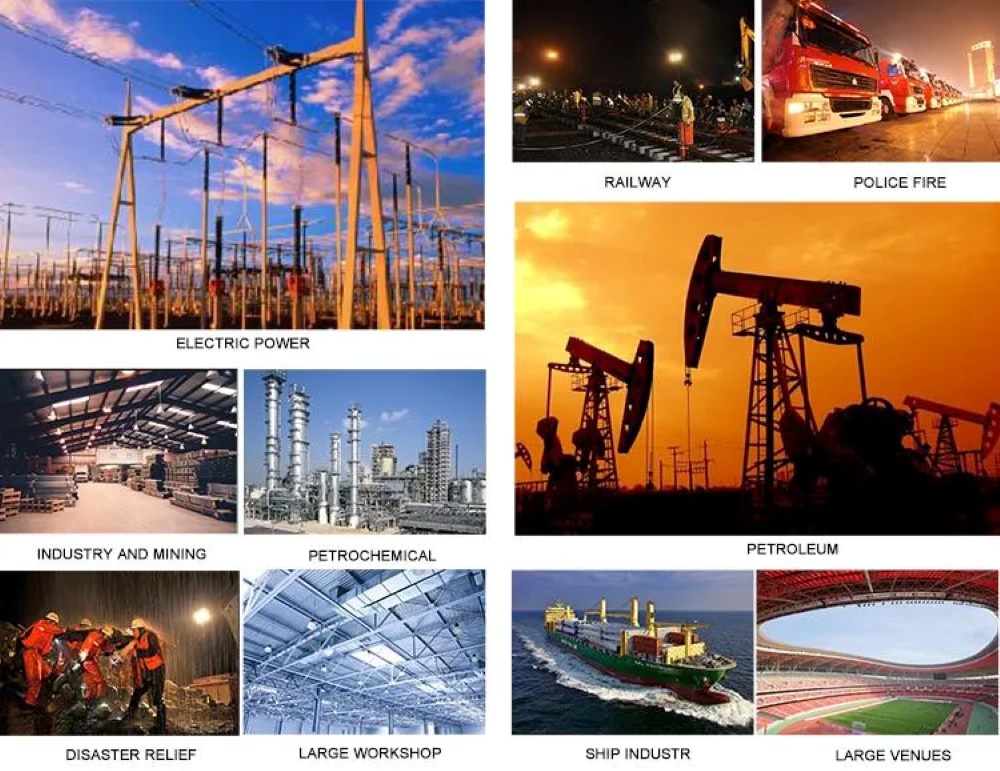

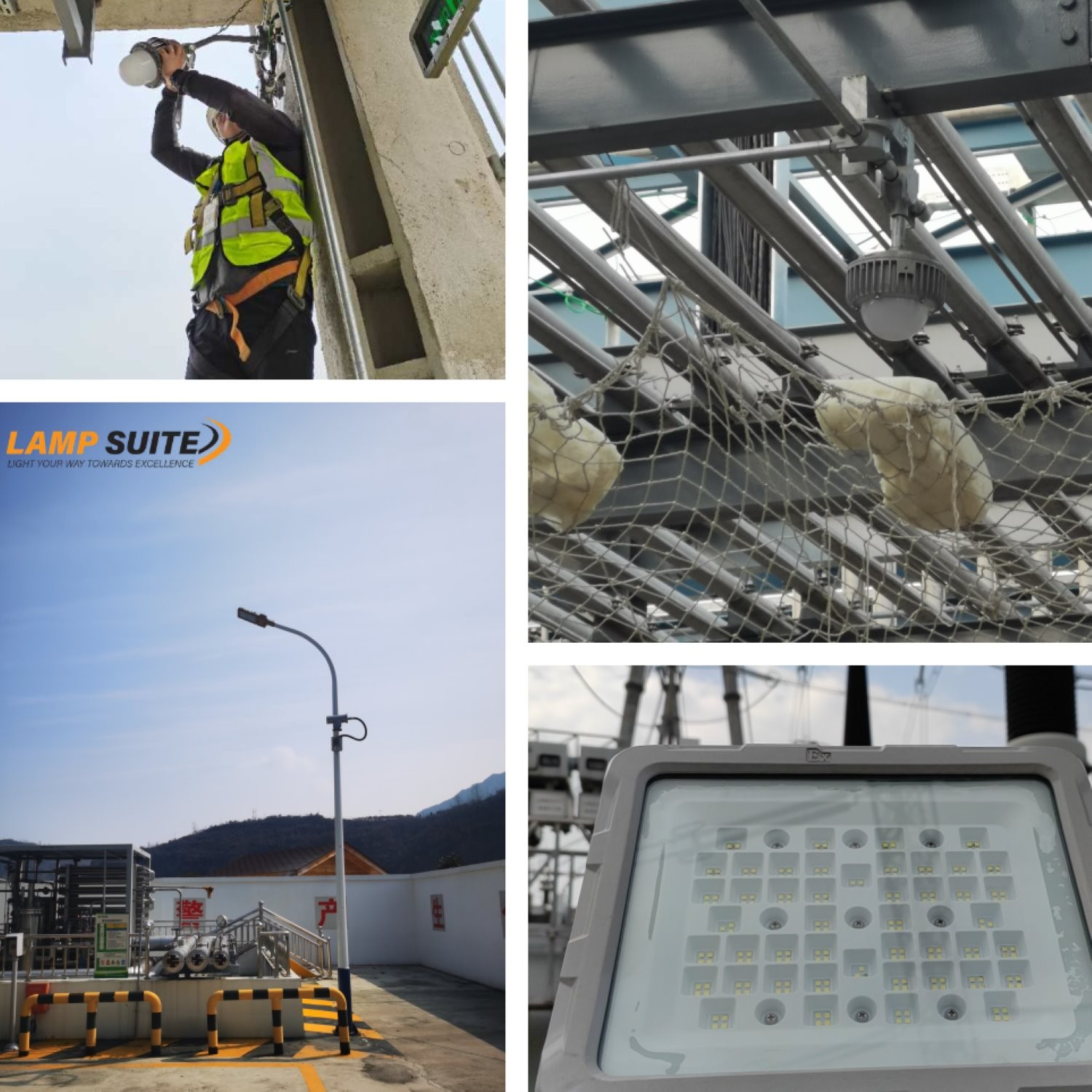

Product Applications
