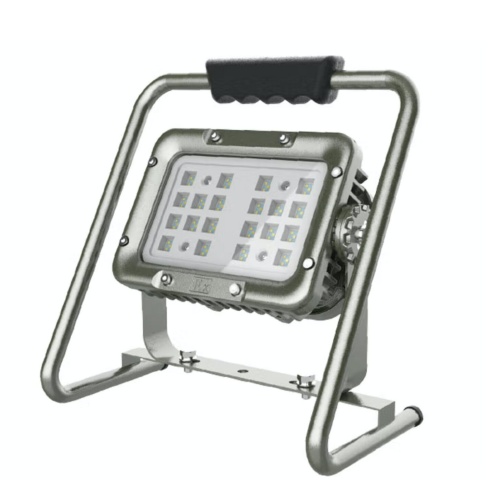

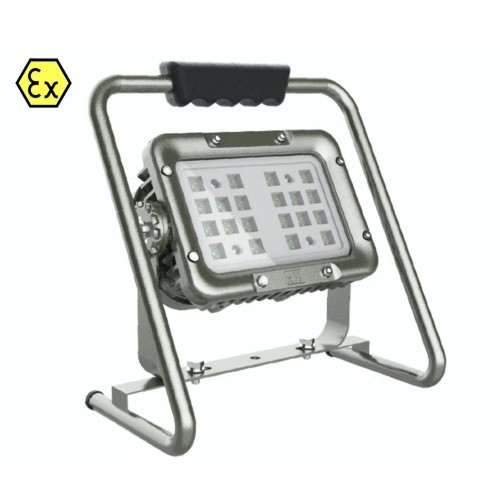

This explosion-proof floodlight is portable, small in size, light in weight, and equipped with a handle for easy carrying and movement. It has explosion-proof, waterproof, dustproof, and impact-resistant features, and is suitable for indoor and outdoor operations, maintenance, inspection, construction, and other scenes.

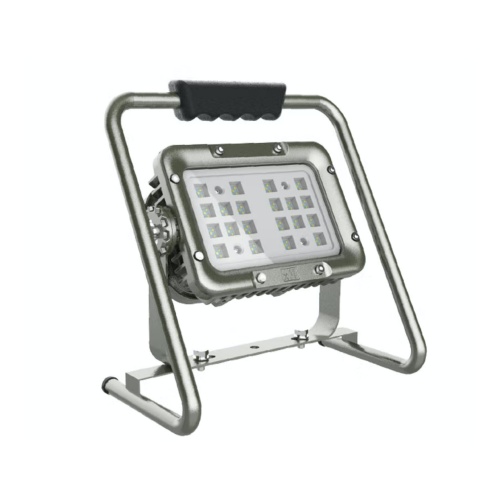

Product Display
Product Description
ITEM | WATT | LUMEN | VOLTAGE | CCT |
MXEL 8189 | 50W | 6000lm | AC220V 50/60Hz | 3000K 4000K 5000K 6500K |
60W | 7200lm | |||
70W | 8400lm | |||
80W | 9600lm | |||
COMMON | Type Of Light Source: | LED | LIFESPAN: | >100,000h |
IP Grade: | IP66 | IK GRADE: | IK10 | |
CRI: | ≥70RA | Beam Angle: | 15/25/36/45/ 60/90/120 | |
Start Time: | ≤0.2s | Base Specifications: | CREE3030 | |
Anti-corrosion Level: | WF2 | Executive Standard: | GB3836.1,GB3836.2 | |
Explosion-proof Grade: | Ex d IIB T6 Gb | Light Effect: | 120LM/w | |

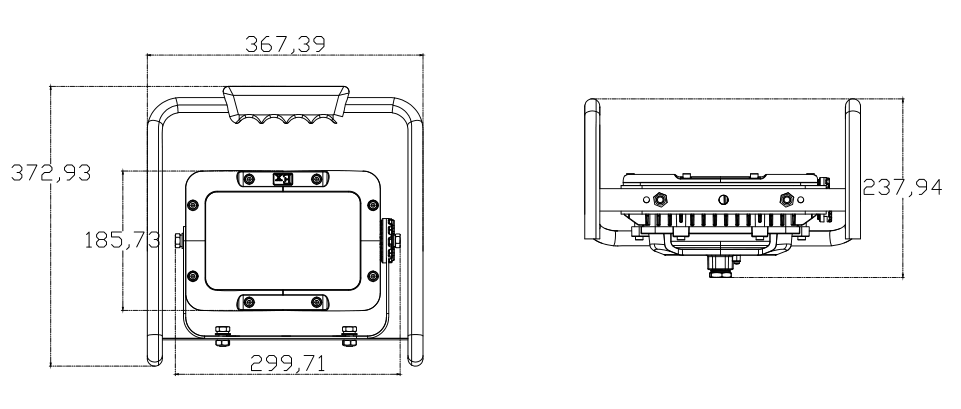

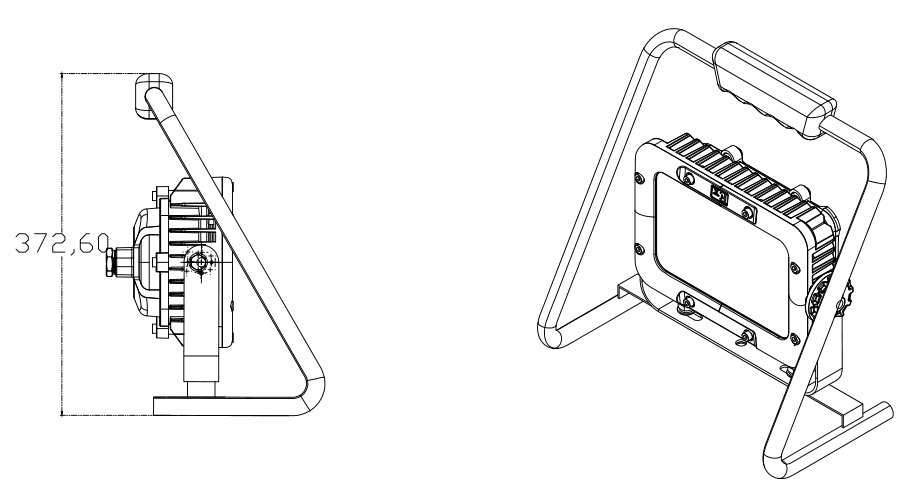

Weight: | 2.3KG | Size: | 300*186*137 mm | |
CERT | ATEX, CE,IP67, IK10 | |||
FEATURES | High Lumen, excellent CRI, accurate CCT; High brightness, no flickering; Meanwell driver assure long time life span; Easy to install with structure; Ideal replacement for conventional incandescent lamp; No mercury and other hazardous materials, fully CE compliant; | |||
APPL | Gas station, Factory, Industry, Dust explosion area, Equipment depot, Petroleum pipeline, Chemical plant, Oil platform, Warehouse, Explosive workshop etc. | |||
Product Details
Convenient
● This product is a lightweight multi-purpose emergency maintenance lighting product with a large irradiation range, uniform illumination and high brightness, and is suitable for large-scale team operations.
● Use large-capacity, high-energy, memoryless
lithium battery pack with low self-discharge rate.
● The lamp body is made of aluminum alloy die-casting, and the surface is sprayed with high-voltage electrostatic spray. The exposed fasteners are made of high-anti-corrosion stainless steel, and the overall anti-corrosion performance is excellent.

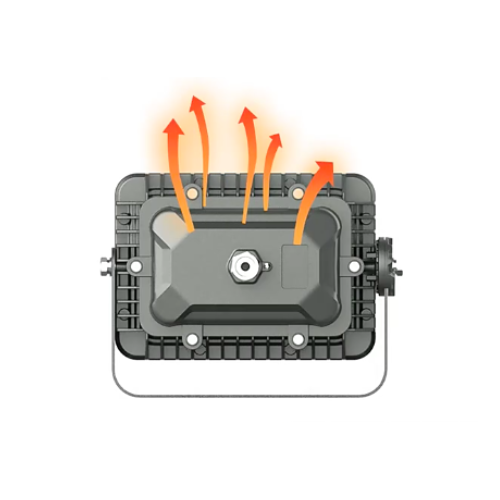

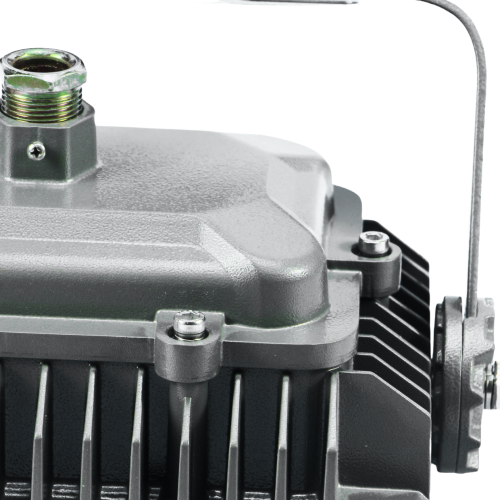

Heat Dissipation
It adopts integrated streamlined structure to better increase heat conduction.
The explosion-proof electric box and lamp head is split double cavity design, so the large space size ensures the assembly of various large-scale electrical appliances. The heat
dissipation performance is excellent, so that the temperature rise of LED chip and power supply can be reasonably controlled within a reasonable range, and the service life of lamps and lanterns can be greatly guaranteed.
Safety and Reliable
● Applicable to Zone 1 and Zone 2 places in explosive gas environment;
● Applicable to IIA, IIB, IIC, explosive gas environment;
● Suitable for flammable dust environment 21, 22 places;
● Applicable to T1-T6 (T5) group temperature group;
● Applicable to energy-saving renovation projects and places where maintenance and replacement are difficult;
● Suitable for places with high protection requirements, humid and harsh environments;
● Suitable for places with high anti-corrosion requirements, corrosion and harsh environments;

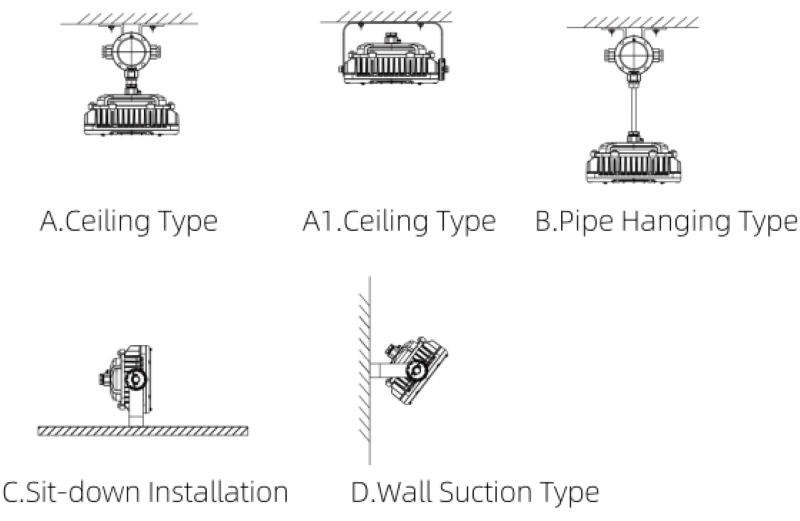

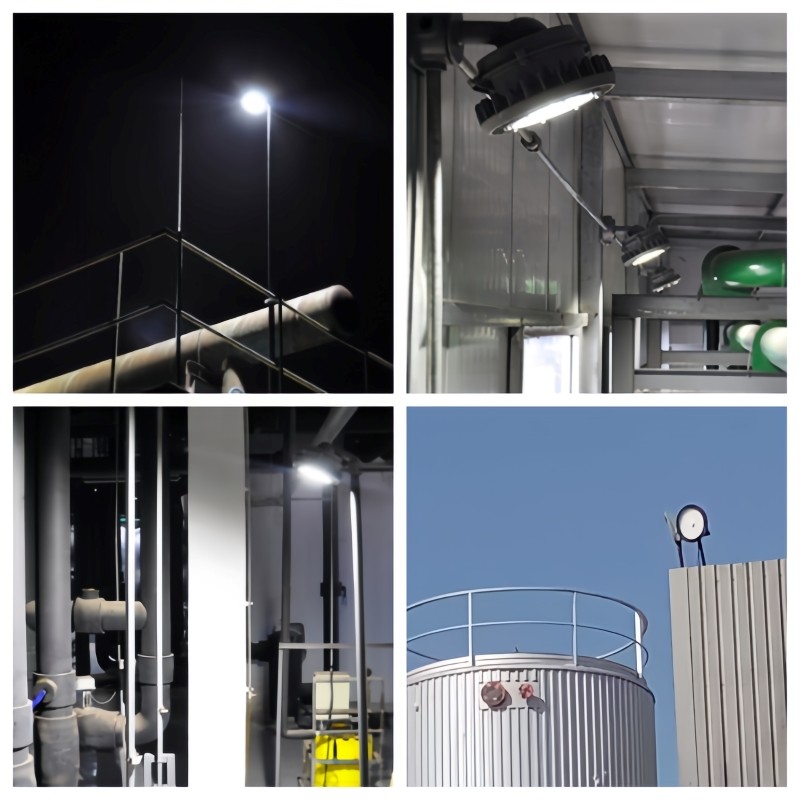

Product Installation
Packing&Shipping
