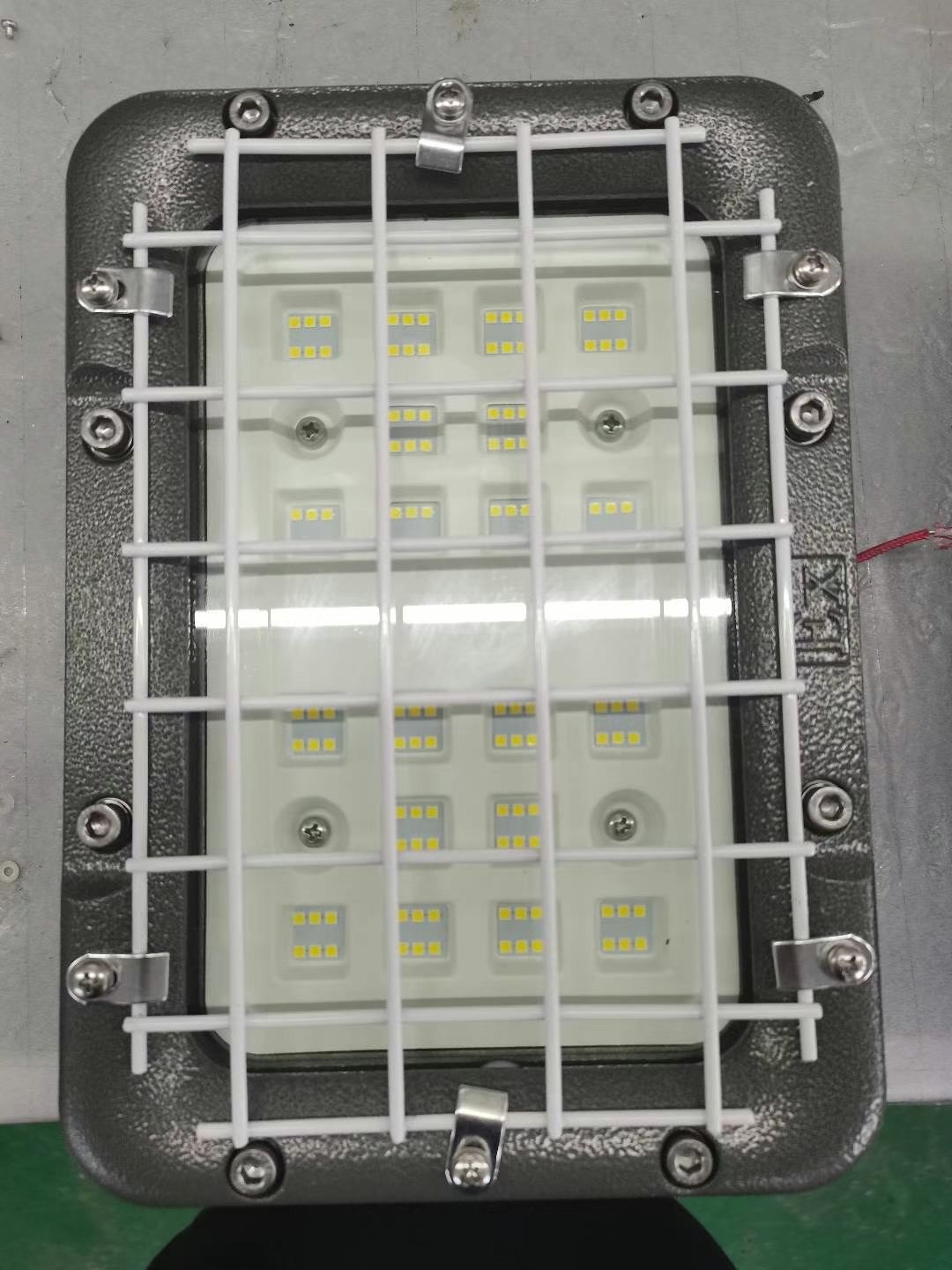

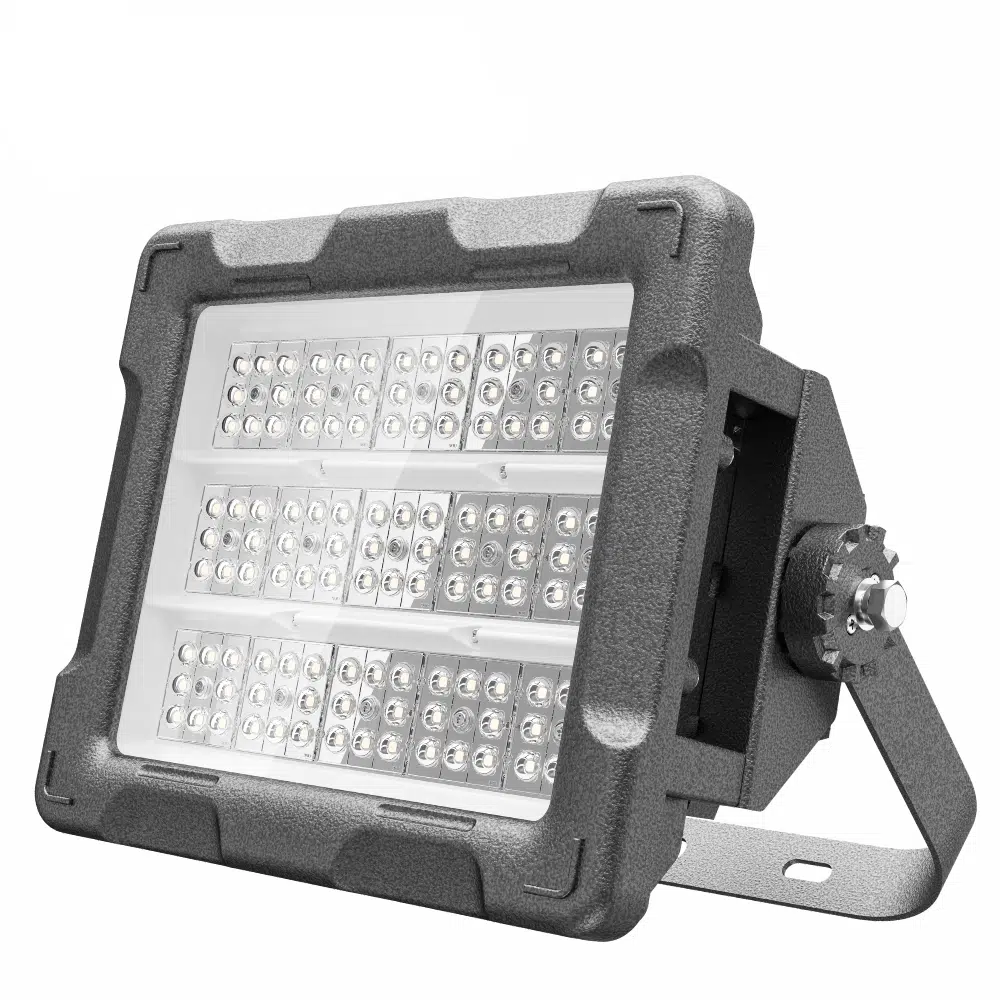

LED Explosion Proof Flood Light is a high-intensity lighting device specially used in flammable and explosive environments. It can prevent explosion accidents caused by electrical sparks or high temperatures. It has a wide illumination range and high brightness, and is suitable for large working areas.
Product Description
ITEM | WATT | LUMEN | VOLTAGE | CCT |
MXEL 8260 | 30W | 3600lm | AC220V 50/60Hz | 3000K 4000K 5000K 6500K |
40W | 4800lm | |||
60W | 7200lm | |||
80W | 9600lm | |||
100W | 12000lm | |||
120W | 14400lm | |||
150W | 18000lm | |||
200W | 24000lm | |||
240W | 28800lm | |||
280W | 33600lm | |||
300W | 36000lm | |||
OTHERS | Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc. | |||
COMMON | MODEL: | 8260 | INPUT VOLTAGE: | AC 100~277V 50/60Hz |
EFFICIENCY: | 120Lm/W | POWER FACTOR: | >0.95 | |
BEAM ANGLE: | 30°,45°,60°,120° | WORK TEMP: | -30ºC ~ 50ºC | |
CCT: | 3000K-6500K | ATEX LEVEL: | Zone1/Div1 | |
CRI: | Ra80 | LED CHIPS: | CREE | |
MATERIAL: | Aluminum | DRIVER: | Meanwell/Other | |
IP GRADE: | IP66 | LIFESPAN: | 50,000 hours | |
IK GRADE: | IK10 | WARRANTY: | 5 years | |
Ambient Temperature: | -40ºC~ +55ºC-40°F ~ +131°F | Mounting Type | Bracket,Wall,Celling,block mounting,with adjustable angle | |
CERT | ATEX, CE,IP67, IK10 | |||
FEATURES | High Lumen, excellent CRI, accurate CCT; High brightness, no flickering; Meanwell driver assure long time life span; Easy to install with structure; Ideal replacement for conventional incandescent lamp; No mercury and other hazardous materials, fully CE compliant; | |||
APPL | Gas station, factory, industry, dust explosion area, equipment depot, petroleum pipeline, chemical plant, oil platform, warehouse, tunnel, explosive workshop etc. | |||
Product Details

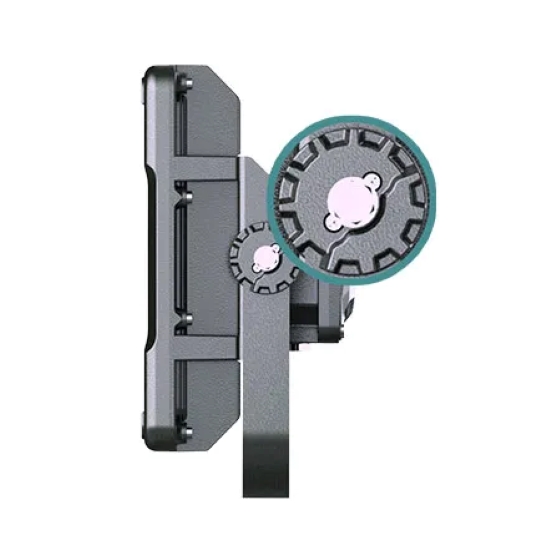

Tailor the lighting direction to specific points with the flexibility of an adjustable angle, ensuring precise illumination where needed

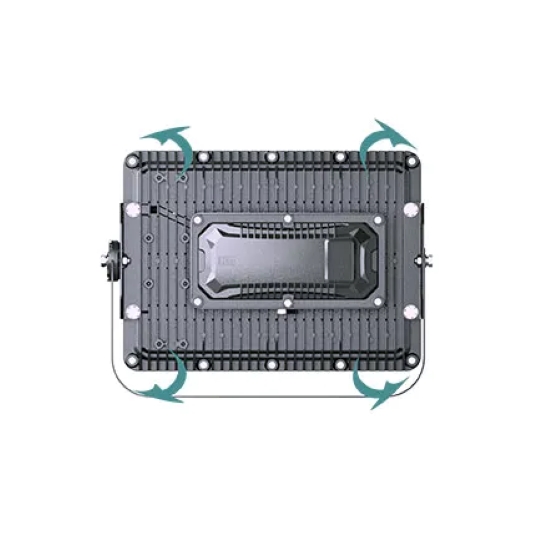

Incorporating an extensive and efficient heat dissipation structure across a broad area, our design promotes stable operation by
effectively managing thermal conditio

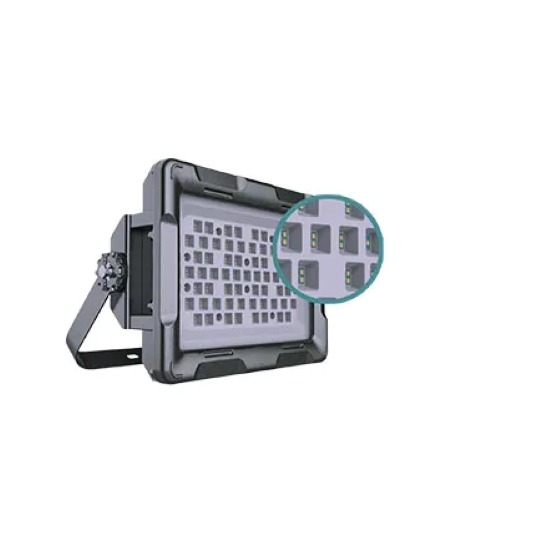

Implementing an individualized lens for each LED chips unit, our design minimizes light waste, ensuring efficient and targeted illumination

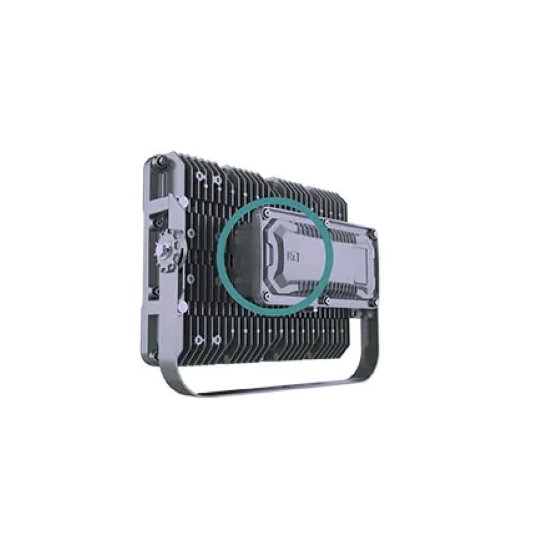

Featuring an isolated high-intensity flame-proof aluminum housing specifically designed for the LED driver, our system prioritizes
safety and reliability in challenging environments

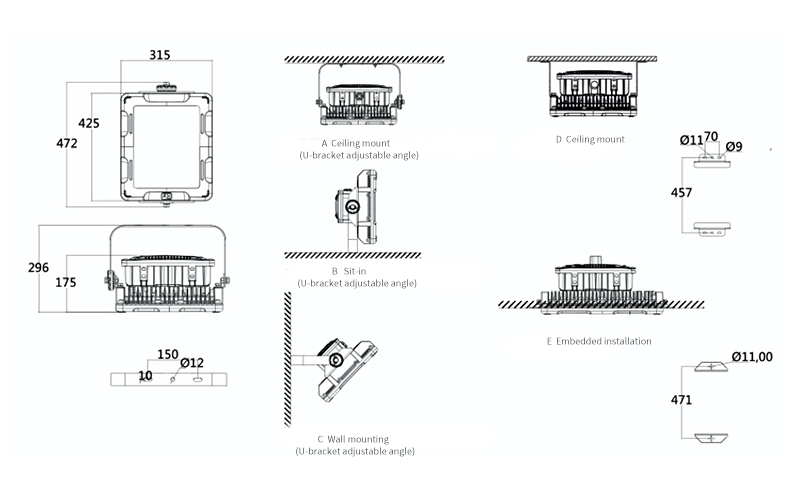

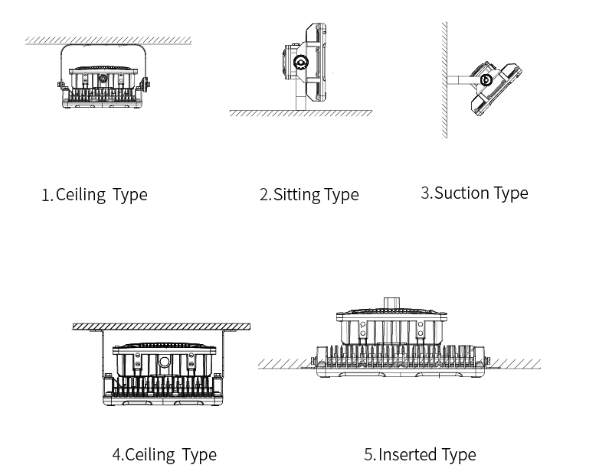

Product Installation

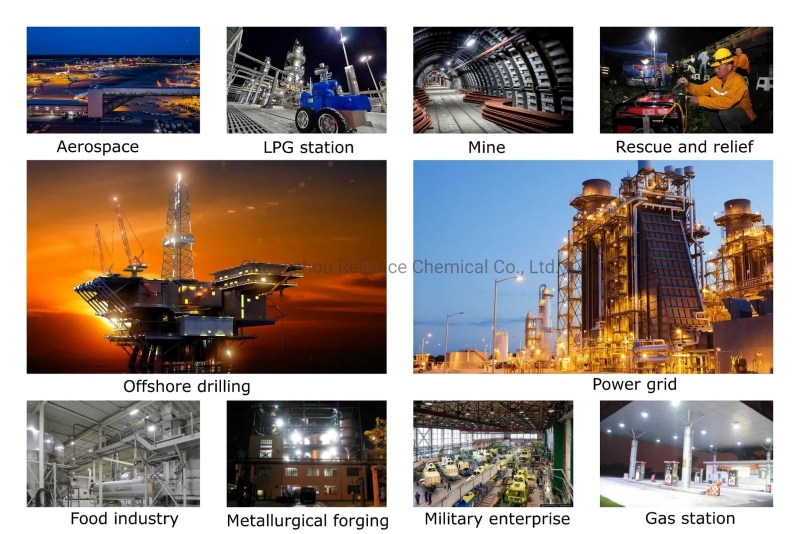

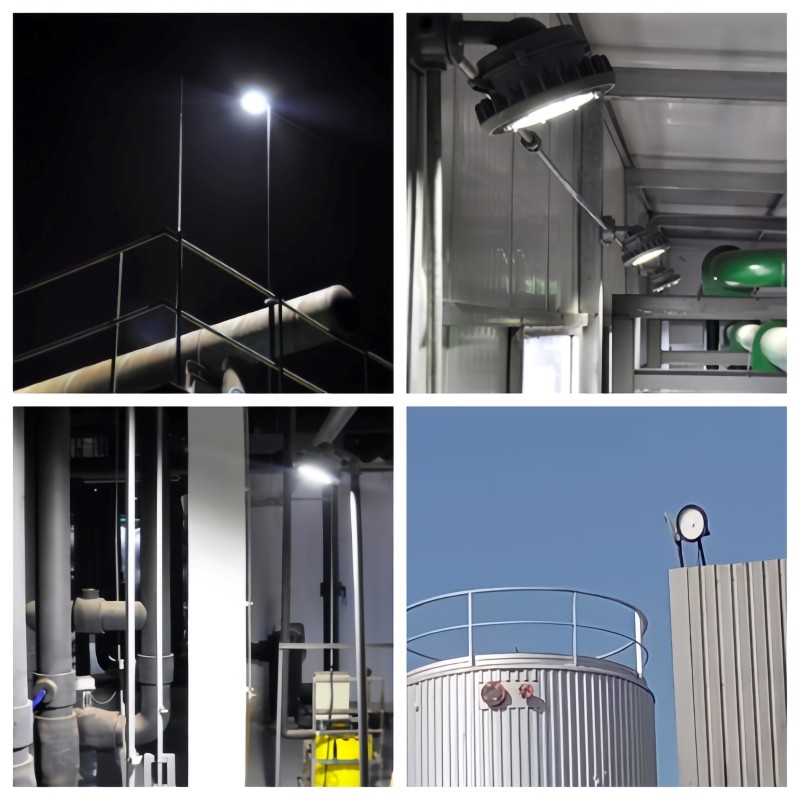

Product Application
