ATEX Floodlight With Net Customizable Colors

ATEX Flood light With Net Customizable Colors

Explosion-proof ATEX floodlights are lighting equipment specially designed for use in flammable and explosive environments. This type of explosion-proof lamp can be customized in different colors, such as orange, yellow, red, silver, etc. At the same time, this type of explosion-proof lamp can also be equipped with protective wire mesh to prevent foreign objects from hitting or damaging the lampshade, thereby improving safety.

Inquire Now

Product Detail


Product Presentation

ITEM	WATT	LUMEN	VOLTAGE	CCT
MXEL-8189	50W	6000lm	AC220V 50/60Hz	3000K 4000K 5000K 6500K
	60W	7200lm
	70W	8400lm
	80W	9600lm
	90W	10800lm
	100W	12000lm
OTHERS	Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, shell color etc. DALI System
COMMON	POWER:	50-100W	IP GRADE:	IP66
	LIGHTING ANGLE:	90°	LED QTY:	95PCS
	BASE SPECIFICATIONS:	CREE3030	ANTI-CORROSION GRADE:	WF2
	EXPLOSION PROOF GRADE:	Ex de mb IIC T6	LIGHT EFFICIENCY:	120Lm/W
	FREQUENCY:	50/60Hz	POWER FACTOR:	＞0.95
	OPERATING TEMPERATURE:	-20~40℃	STORAGE TEMPERATURE:	-20~40℃
	LIGHT SOURCE:	LED	CRI:	◉Ra70 〇Ra80 〇Ra90 Optional
	LIFESPAN:	100000hours	START-UP TIME:	≤0.2s
	EXECUTIVE STANDARD:	GB3836.1 GB3836.2	CCT:	3000-6500K

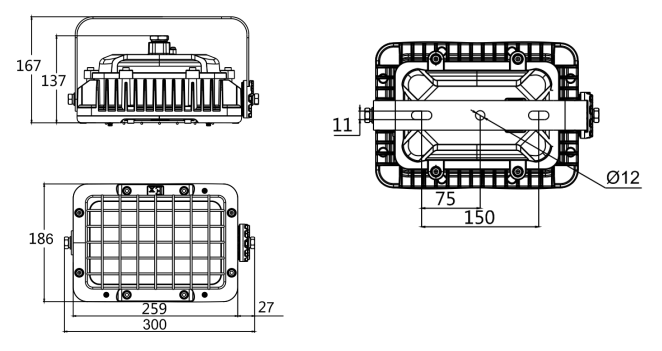

	SIZE:	300×186×137	WEIGHT:	3.8KG
CERT	ATEX, CE, IP66, IK10
FEATURES	●The lamp body is made of aluminum alloy by die casting. The surface of the lamp is sprayed with high voltage electrostatic.The exposed fastener is stainless steel with high anticorrosive performance. The whole lamp has excellent anticorrosive performance. ●High-strength transparent cover, high light transmission, impact resistance, unique anti-glare design, with optical reflector cup, high reflection efficiency. ●The explosion-proof structure designed in accordance with the national explosion-proof standard GB3836 has reliable explosion-proof performance, long life, special constant current power supply, low power consumption, constant output power meter, high temperature and aging resistant silica gel sealing ring, and high protection grade. ●Adopt the international first-line brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up. ●Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps. ●Cable wiring, fast and convenient.
APPL	●Warehouse ●Workshop ●Power Generation ●Plastic Manufacturing ●Oil And Gas Station ●Hazardous Environment ●Pharmaceutical Sector ●Water Treatment Facilities ●Transportation ●Food and Beverage Processing ●Offshore Drilling Platform

Product Features

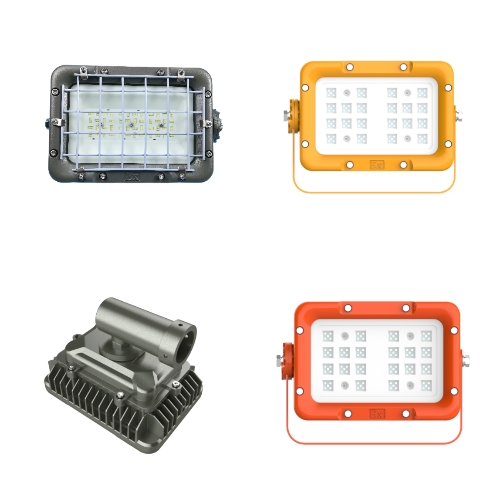

Customizable colors

Different colors can be customized to meet different environmental needs, such as red for dangerous areas, green for safe passages, and yellow or orange lamps are more conspicuous in mines, construction sites and other environments, which helps to improve safety. Special color coatings (such as white or silver) can also reflect some heat, reduce the temperature rise inside the lamp, and improve heat dissipation performance. Personalized customization to meet customer needs

Applicable to projects with special design requirements, such as government projects, special equipment applications, etc., to enhance product competitiveness. Diversified options can be provided according to the preferences or brand image of different customers to improve market recognition.

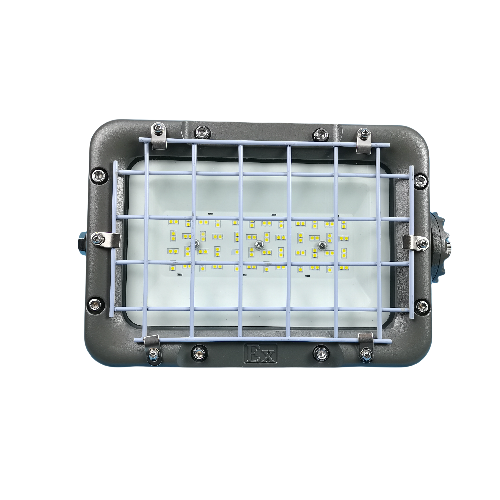

Add protective wire mesh

Enhance impact resistance

The protective wire mesh can effectively prevent external objects (such as tools, equipment parts, etc.) from directly hitting the lampshade, reducing the risk of breakage.

Protect the lampshade and prevent glass from shattering and splashing

Under strong impact, even if the lampshade glass breaks, the wire mesh can effectively fix the fragments to prevent glass fragments from splashing and causing harm to personnel or equipment.

Improve corrosion resistance and weather resistance

The protective mesh is usually made of stainless steel or high-strength galvanized iron wire, which is corrosion-resistant, rust-proof and moisture-proof, and can be used for a long time in harsh environments (such as oceans and petrochemical sites).Special coating treatment (such as epoxy resin spraying) can further enhance corrosion resistance.

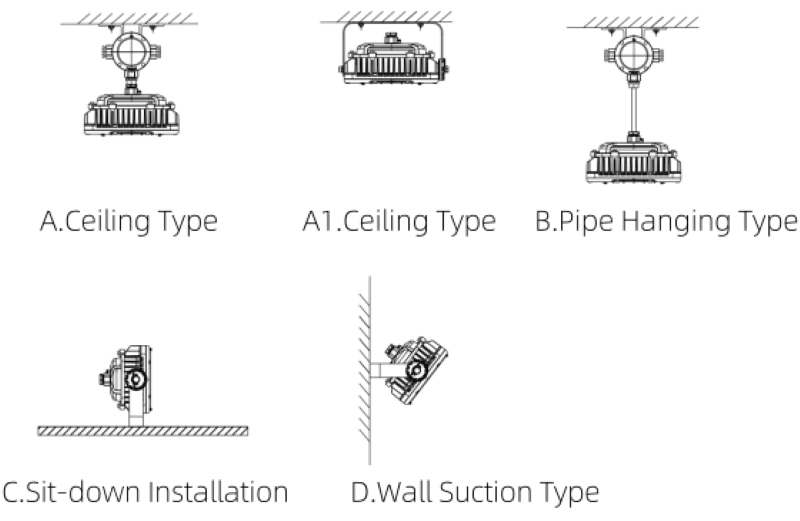

Product Install
