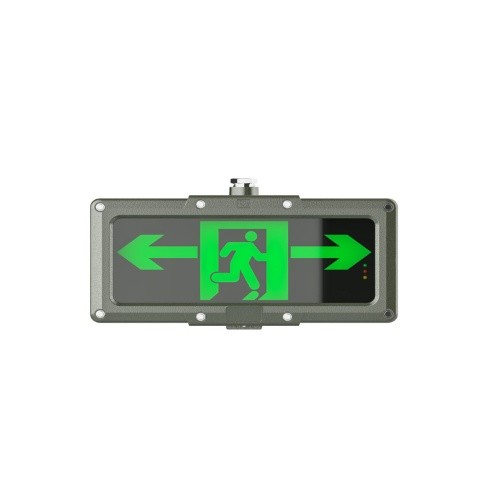

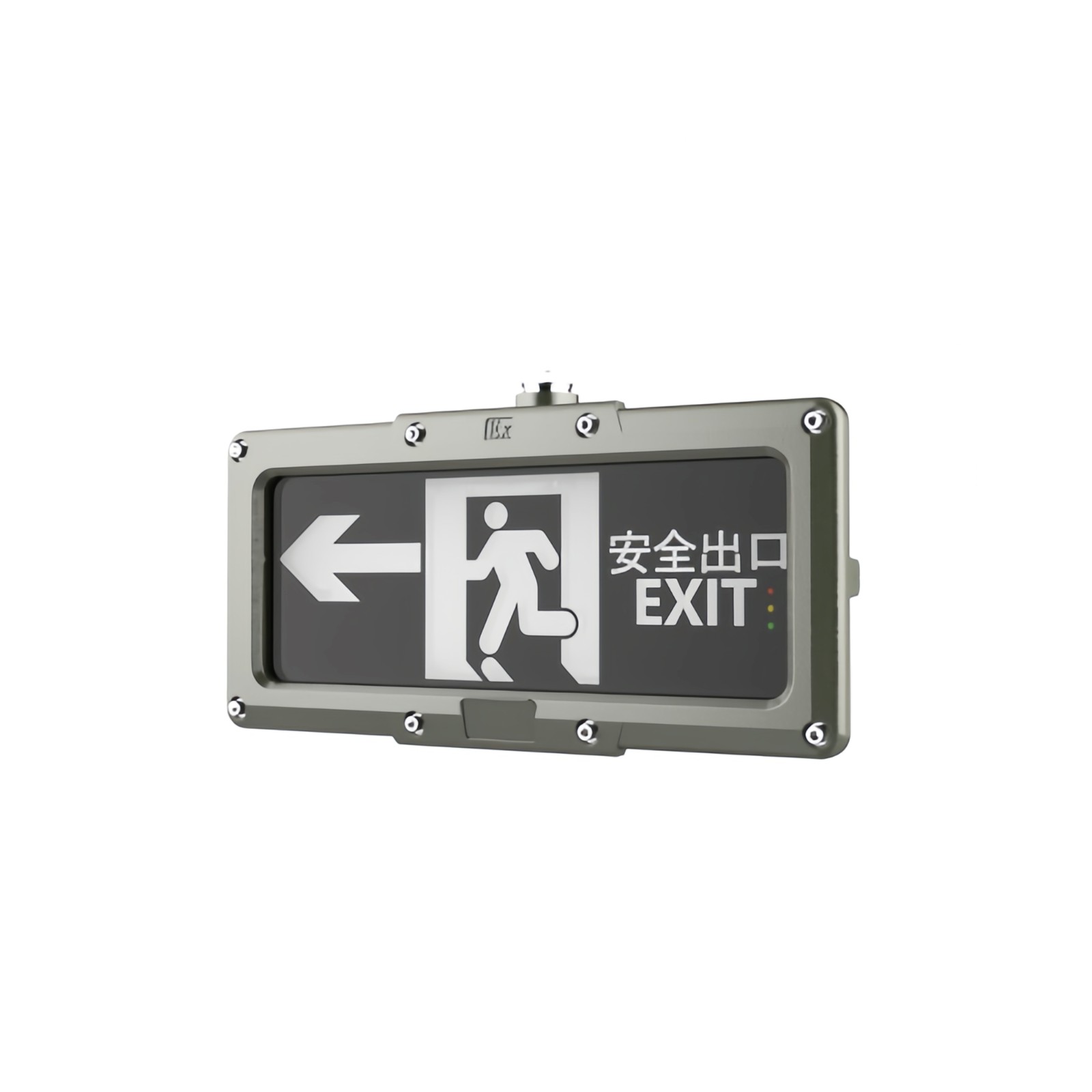

Safety Emergency Indicator Light

Explosion-proof emergency exit lights are safety devices used in flammable and explosive hazardous places. They are mainly used to indicate escape routes in emergency situations to ensure safe evacuation of personnel. The outer shell is made of explosion-proof materials, which can effectively prevent internal electrical sparks from causing explosions. The lamps usually have high brightness and long battery life, and can continue to work for several hours even in power outages.

Inquire Now

Product Detail

Product Description

ITEM	WATT	LUMEN	VOLTAGE	CCT
MXEL-8191	2W	240lm	AC220V/AC110V/DC24V/DC12V	3000-6500K
	3W	360lm
	6W	720lm
COMMON	RATED POWER:	3W	EFFICIENCY:	120Lm/W
	CABLE SPECIFICATION:	Φ5mm-Φ8mm	LED QTY：	6PCS
	ANTI-CORROSION GRADE：	WF2	EXPLOSION PROOF GRADE：	ExdIIBT6Gb
	POWER FACTOR：	＞0.95	OPERATING TEMPERATURE:	-20~40℃
	LIGHT SOURCE:	LED	STORAGE TEMPERATURE：	-20~40℃
	CRI:	≥70RA	LIFESPAN:	＞100000h
	START-UP TIME:	≤0.2s	EXECUTIVE STANDARD：	GB3836.1 GB3836.2
	EMERGENCY TIME:	≥120min	BATTERY SPECIFICATION：	Lithium Battery
	IP GRADE：	IP66	FEED THREAD:	G3/4"
	IK GRADE:	IK10	INSTALLATION:	Bracket, Wall, Ceiling, Embedded Type

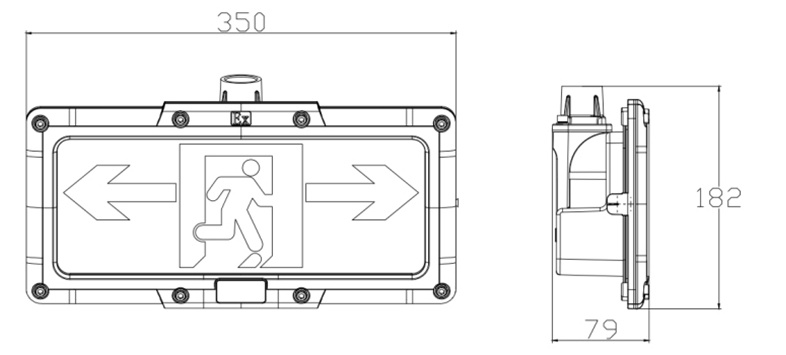

	WEIGHT：	2.8KG	SIZE：	35019379mm
OTHERS	Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, shell color etc.Digital Smart System(DALl, DMX,0-10V)
CERT	ATEX, CE,IP67, IK10,ROHS,ISO9001

Product Details

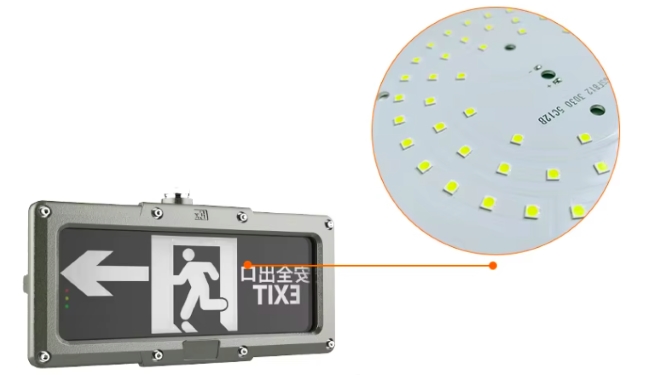

High Efficiency With

Quality Chip

Utilizes top-tier CREE LED chips, offering high brightness and efficiency, with a chip efficiency of >130 lm/W. The performance is stable, and the chip has an average lifespan of up to 100,000 hours.

Incorporates SMT array mounting technology, ensuring excellent thermal conductivity and minimal light decay.

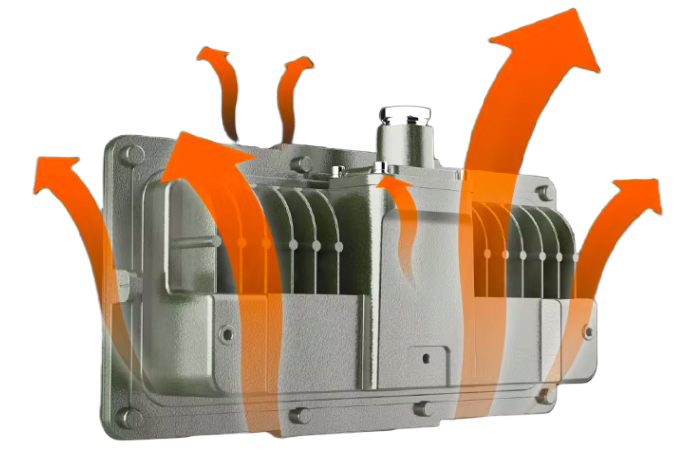

Enhanced Heat Dissipation

The entire lamp is designed with a wind-guiding heat dissipation structure, delivering excellent thermal conductivity.

The heat sink is crafted from specialized ADC12 aluminum alloy through high-pressure die-casting, ensuring high strength, rapid thermal conductivity, and superior heat dissipation.

Thermal grease with a thermal conductivity coefficient of 3.0 is applied for even faster heat transfer.

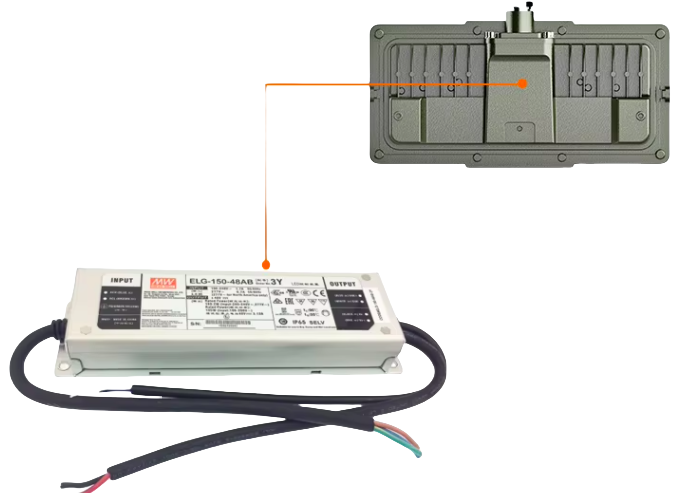

Brand-Name Driver For

Enhanced Stability

Equipped with top-tier power supplies (options include MeanWell, Moso, DONE, Osram, and Inventronics Driver, etc.), ensuring reliable quality and comprehensive after-sales support. The power supply incorporates the latest wide-voltage technology, featuring constant current output, lightning protection, surge protection, and short-circuit/over-voltage protection. With a power factor of up to 0.99, it delivers even more stable performance.

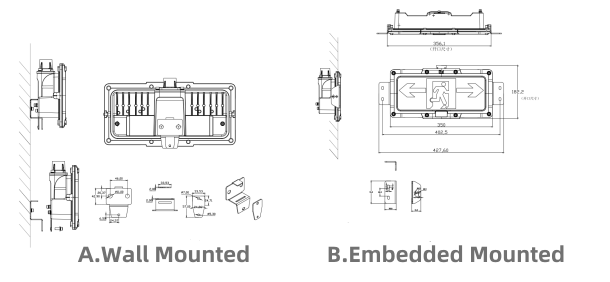

Product Installation
