Weatherproof High Bay Explosion Proof LED Light

Applications: Oil & gas facilities, chemical plants, hazardous warehouses
Power Range: 80W–200W (high-lumen industrial high bay output)
Protection Rating: Ex d IIC T6 / IP66 (explosion-proof & weatherproof)
Housing: Die-cast aluminum, anti-corrosion coating
Light Source: High-efficiency LED chips, long lifespan >50,000 hrs
Customization: Voltage, beam angle, mounting options available

WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
img of mask_layer_close
high bay explosion proof led light
high bay explosion proof led light
high bay explosion proof led light
high bay explosion proof led light
Product Detail

Product Overview

The Lampsuite high bay explosion proof LED light is engineered for hazardous and demanding industrial environments where safety, reliability, and high illumination are critical. Designed to operate safely in explosive atmospheres containing flammable gases, vapors, or dust, this fixture combines robust mechanical structure with advanced LED technology.

Built with a heavy-duty aluminum housing and certified explosion-proof protection, it delivers powerful, uniform lighting while minimizing maintenance and energy costs. This high bay explosion proof LED light is ideal for large-area installations with high ceilings, offering stable performance even under extreme temperatures, humidity, and corrosive conditions. It is a dependable lighting solution for industrial operators seeking long-term safety compliance and operational efficiency.

Product Parameter

ModelMXEL 8231
Rated VoltageAC220V
Power40-80W
Protection LevelIP66
Lighting Angle120°
LED Qty80pcs
Base SpecificationsCREE3030
Anti-corrosion GradeWF2
Explosion Proof GradeExdIICT6Gb
Light Efficiency120Lm/W
Frequency50/60Hz
Power Factor>0.95PF
Operating Temperature-20~40℃
Storage Temperature-20~40℃
Light Sourceled
Correlate Color Temperature3000-6500K
Color Rendering Index≥70RA
LED'S Operating Life100000Hours
Start-up Time≤0.2S
Weight3.5KG
SizeΦ225×189MM

Lampsuite High Bay Explosion Proof LED Light Features

Certified Explosion-Proof Safety:

Designed to meet strict hazardous area standards, ensuring safe operation in Zone 1 & Zone 2 explosive environments.

High Lumen Output for High Bays:

Optimized optical design delivers strong, wide-area illumination suitable for high ceiling industrial spaces.

Rugged Industrial Construction:

Die-cast aluminum body with corrosion-resistant coating ensures durability in harsh chemical and marine conditions.

Energy-Efficient LED Technology:

Compared to traditional HID fixtures, this high bay explosion proof LED light significantly reduces power consumption and heat generation.

Low Maintenance & Long Service Life:

LED lifespan exceeding 50,000 hours minimizes downtime and replacement costs in difficult-access installations.


Lampsuite High Bay Explosion Proof LED Light Applications

Oil & Gas Processing Areas:

Safe lighting for refineries, drilling platforms, and fuel storage facilities.

Chemical & Petrochemical Plants:

Reliable illumination in zones with flammable gases or chemical vapors.

Hazardous Warehouses & Workshops:

Ideal for high-bay lighting in explosive material storage and handling areas.

Power & Energy Facilities:

Suitable for turbine halls, substations, and industrial energy infrastructure.

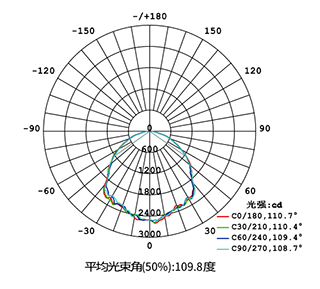

Light Distribution Diagram

Light Distribution Diagram of high bay explosion proof led light

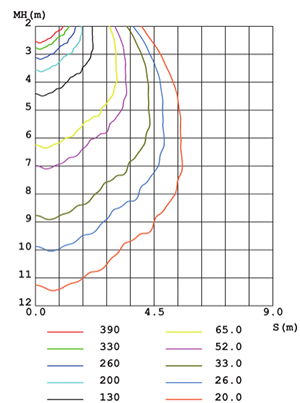

Illuminance Figure

Illuminance Figure of high bay explosion proof led light

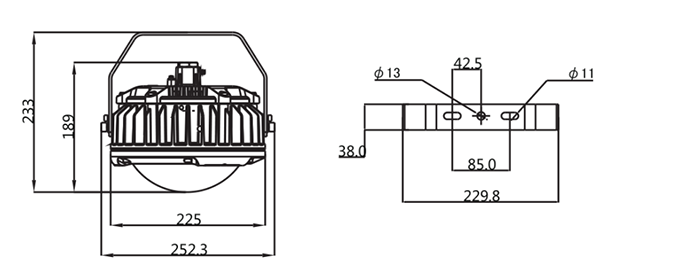

Dimension

Dimension of high bay explosion proof led light

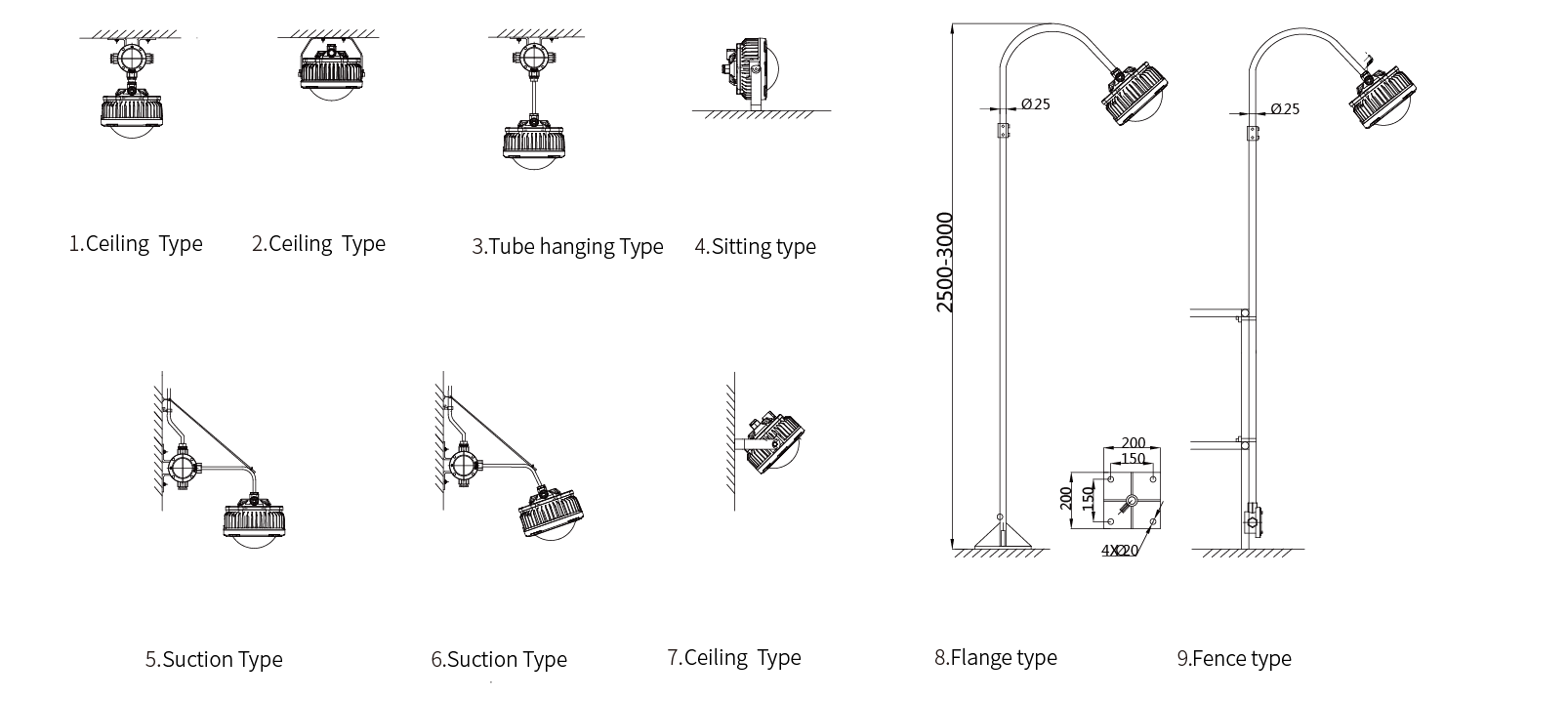

Insatllation

Insatllation of high bay explosion proof led light


FAQ About High Bay Explosion Proof LED Light

Q1: What hazardous zones is this high bay explosion proof LED light suitable for?

A: It is suitable for Zone 1 and Zone 2 environments with explosive gases, as well as industrial areas requiring high safety standards.

Q2: Can the light be customized for different voltages or mounting types?

A: Yes. Lampsuite supports OEM customization including voltage range, mounting brackets, and beam angles.

Q3: How does LED compare to traditional explosion-proof HID lights?

A: LED lights offer higher energy efficiency, longer lifespan, instant start, and lower maintenance costs.

Q4: Is this product suitable for outdoor use?

A: Yes. With IP66 protection, it performs reliably in outdoor and weather-exposed industrial environments.
