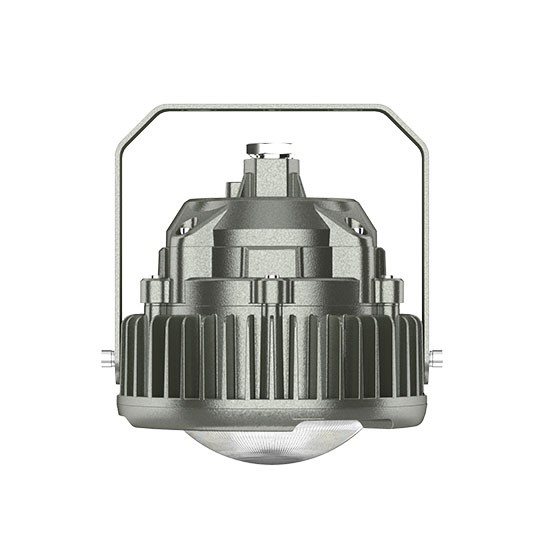

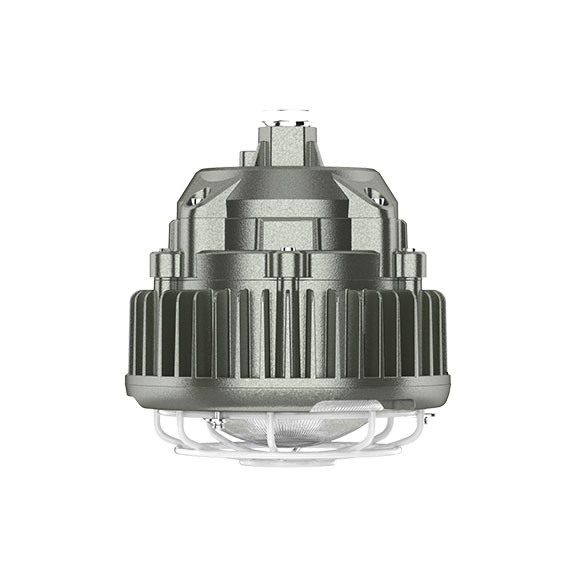

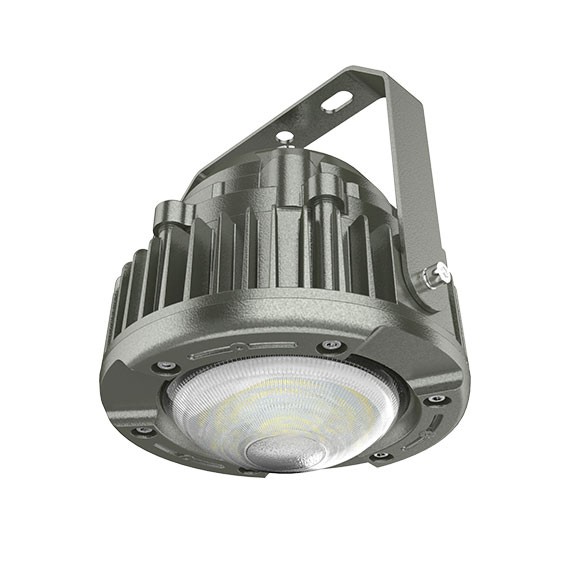

Zone 1 UFO Explosion Proof High Bay Lighting

MXEL 8237 Explosion proof high bay light is widely used for work lighting in dangerous places such as petroleum exploration, oil refining, chemical industry, and electric power.
MXEL 8237 Explosion proof high bay light is applicable to explosive gas or dust environment in Zone 1, Zone 2 or Zone 21, Zone 22.

Inquire Now

Product Detail

Product Parameter

Model	MXEL 8237
Rated Voltage	AC220V
Power	10-50W
Frequency	50Hz
Light Efficiency	120Lm/W
Power Factor	＞0.95PF
Operating Temperature	-20~40℃
Storage Temperature	-20~40℃
Protection Level	IP66
Lighting Angle	120°
Light Source	LED
Correlate Color Temperature	3000-6500K
Color Rendering Index	≥70RA
LED CHIP Qty	60PCS
Base Specifications	CREE3030
LED'S Operating Life	100000hours
Start-up Time	≤0.2s
Anti-corrosion Grade	WF2
Explosion Proof Grade	Ex d IIC T6 Gb
Inlet thread	DN20
Cable length	50cm
Weight	2.5KG
Size	Φ198×182MM

Features

1. MXEL 8237 Explosion proof high bay light is widely used for work lighting in dangerous places such as petroleum exploration, oil refining, chemical industry, and electric power;
2. Applicable to places with high humidity and corrosion protection;
3. Applicable to explosive gas or dust environment in Zone 1, Zone 2 or Zone 21, Zone 22;
4. MXEL 8237 Explosion proof high bay light is suitable for IIA, IIB, IIC explosive gas environment;
5. Suitable for temperature group T1~T6/ T5 group;
6. Applicable ambient temperature is -40℃~40℃/55℃.

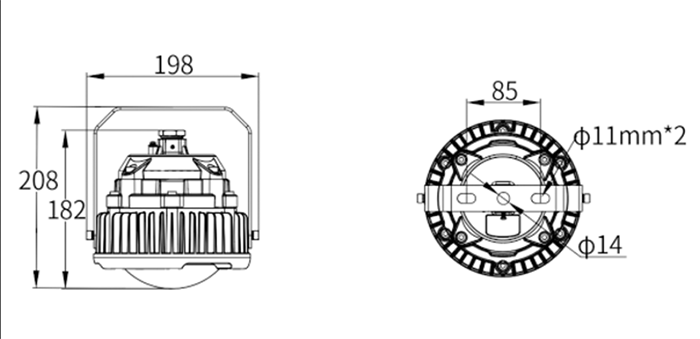

Dimension

dimension of MXEL 8237 Explosion proof zone 1 lighting
