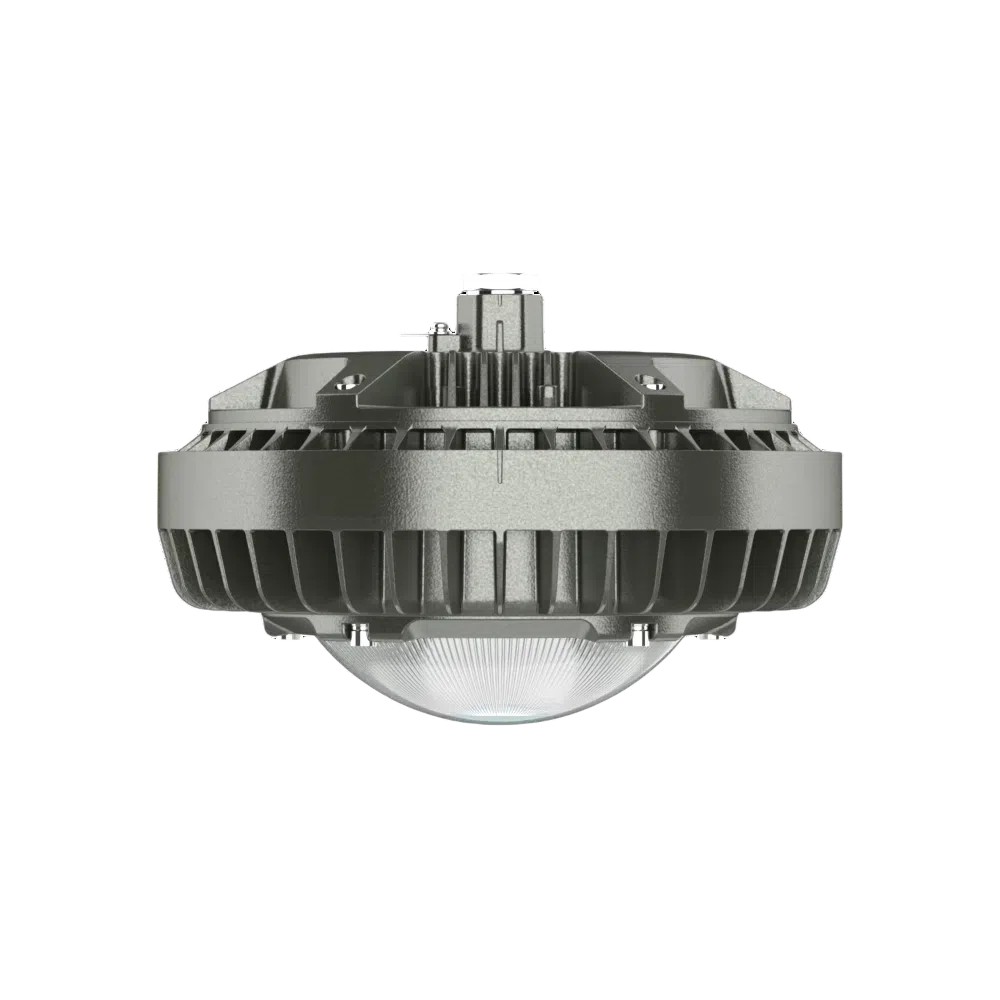

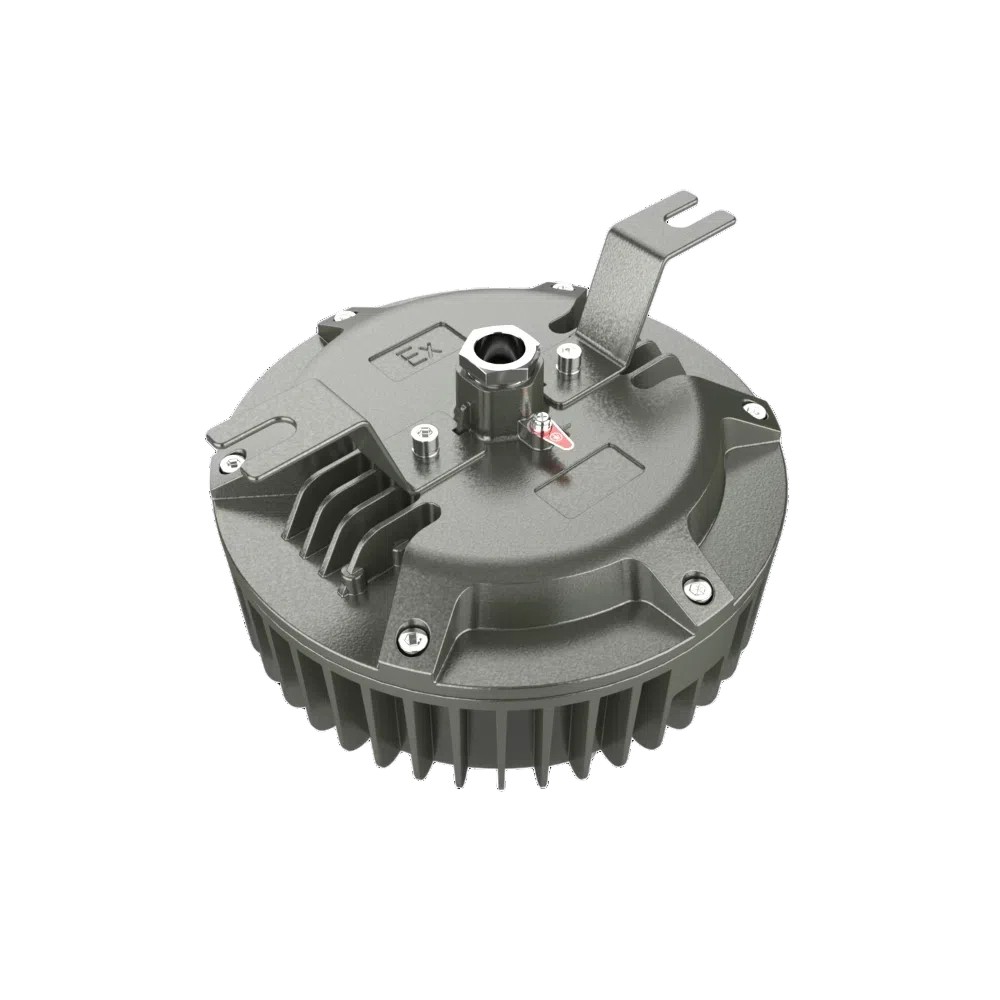

Spark-Resistant Anti Ex Light

Spark-proof explosion-proof lamps are lighting equipment designed for flammable and explosive environments. Their circuit structure has been specially optimized to ensure that no arcs or sparks are generated during normal operation, thereby effectively reducing the risk of explosion. This lamp usually uses LED light sources, which have the advantages of high brightness, low energy consumption and long service life, and can provide safe and reliable lighting in hazardous areas.

Inquire Now

Product Detail

Product Parameters

COMMON	MODEL:	812	EFFICIENCY:	120Lm/W
	RATED POWER:	10-120W	Rated voltage:	AC220V/AC110V/DC24V/DC12V
	POWER FACTOR:	>0.95	OPERATING TEMPERATURE:	-20~40ºC
	IP GRADE:	IP66	ANTI-CORROSION GRADE:	WF2
	BEAM ANGLE:	110°/115°/112°	CRI:	≥70RA
	LED QTY:	60/80/120 pcs	BASE SPECIFICATIONS:	CREE3030
	EXPLOSION PROOF GRADE:	Exd IIC T6	LIFESPAN:	100000 Hours
CERT	ATEX, CE, IP66, IK10,ROHS,ISO9001
FEATURES	1. Product configuration: The light source adopts (CREE) brand LED light-emitting chip, with ultra-high light efficiency and an average service life of up to 100,000 hours. It is driven by a first-line brand power supply and processed with wide voltage technology. The quality is guaranteed, with constant current output, short circuit, overvoltage protection and other characteristics. 2. Heat dissipation design: The light source radiator adopts one-piece die-casting, with a tight structure, excellent thermal conductivity and heat dissipation performance, and effectively controls the temperature rise of the lamp within a reasonable range, thereby ensuring the service life of the lamp. 3. Explosion-proof performance: The products are strictly developed and designed in accordance with the national explosion-proof standard GB3836 series documents and have obtained national certified explosion-proof certificates and test reports. The certificates are complete, the manufacturing is precision, and the explosion-proof performance is safe and reliable. 4. Protective lampshade: It adopts high borosilicate tempered glass, which is corrosion-resistant, impact-resistant, with high light transmittance, uniform and soft light irradiation, and anti-glare. 5. Protection and anti-corrosion: The lamp body adopts high-voltage electrostatic spraying treatment, and the screw fasteners are made of stainless steel. With high-precision processing technology, it has the characteristics of high corrosion resistance, high waterproofness, and high dustproofness. 6. Easy installation: It can be installed in various ways such as ceiling and hanging rod according to the needs, which can meet the use of fixed lighting in various places such as low ceiling, platform, high ceiling and high shed. The independent human-machine wiring cavity design can quickly realize the series and parallel connection requirements of lamps, making installation and wiring more convenient. 7. Product appearance: The appearance is a perfect fusion of industrial elements and structure, with exquisite design, clear edges and corners, and a special gray color scheme, which is suitable for matching various factory environments.
APPL	Oil and Gas Facilities Chemical Processing Plants Mining Operations Industrial Zones with Hazardous Materials Marine Environments Wastewater Treatment Plants Chemical Storage AreasRailway and Highway Tunnels High-Risk Industrial Zones Iia, Iib, Iic Explosive Gas Atmosphere Wet Fire Explosive Location

Product Details

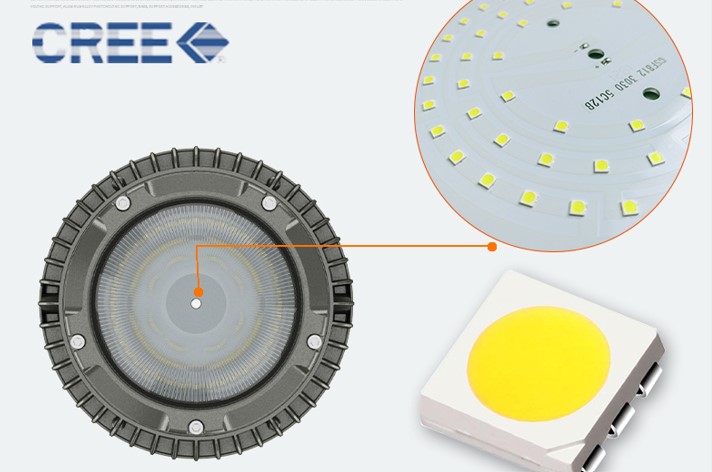

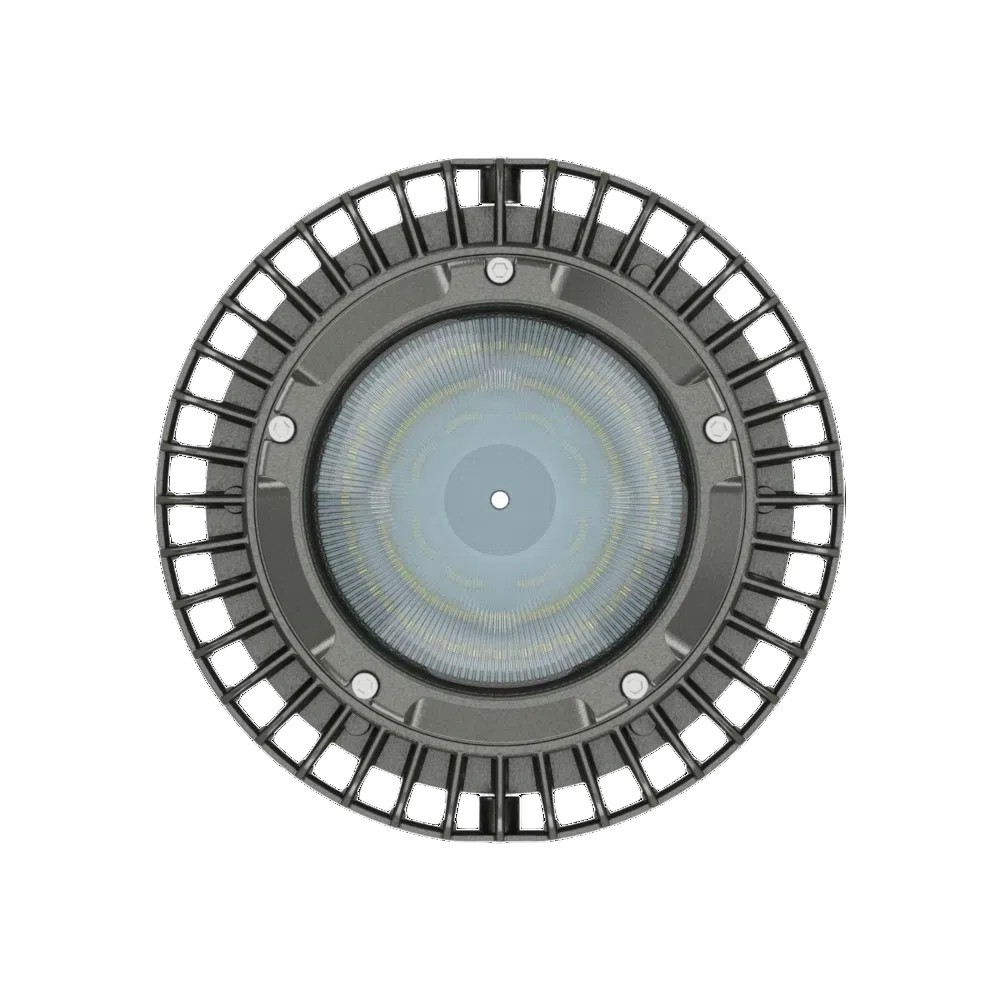

Good "core", high light efficiency

The light features a high-quality core with exceptional luminous efficiency, ensuring reliable and long-lasting performance. It utilizes a premium CREE LED light-emitting chip, known for its high brightness and superior light efficiency, with a chip luminous efficacy exceeding 120 lm/W. The stable performance of the LED chip ensures an impressive average lifespan of up to 100,000 hours, significantly reducing maintenance costs. Additionally, the lamp adopts advanced SMT array patch technology, which enhances heat conduction efficiency, effectively dissipates heat, and minimizes light decay, ensuring consistent brightness over time.

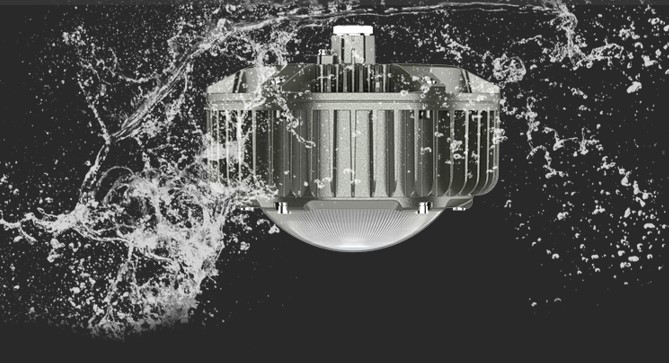

Waterproof, dustproof, anti-corrosion

This lamp has excellent performance in waterproof, dustproof and anti-corrosion. It uses a special silicone sealing ring, which has excellent anti-aging, high and low temperature resistance and strong sealing, and can effectively block the intrusion of moisture, dust and corrosive gases. Combined with high-precision machining technology, the overall protection level of the lamp reaches IP66, ensuring that it can still operate stably in harsh environments without fear of wind, rain, dust or moisture.

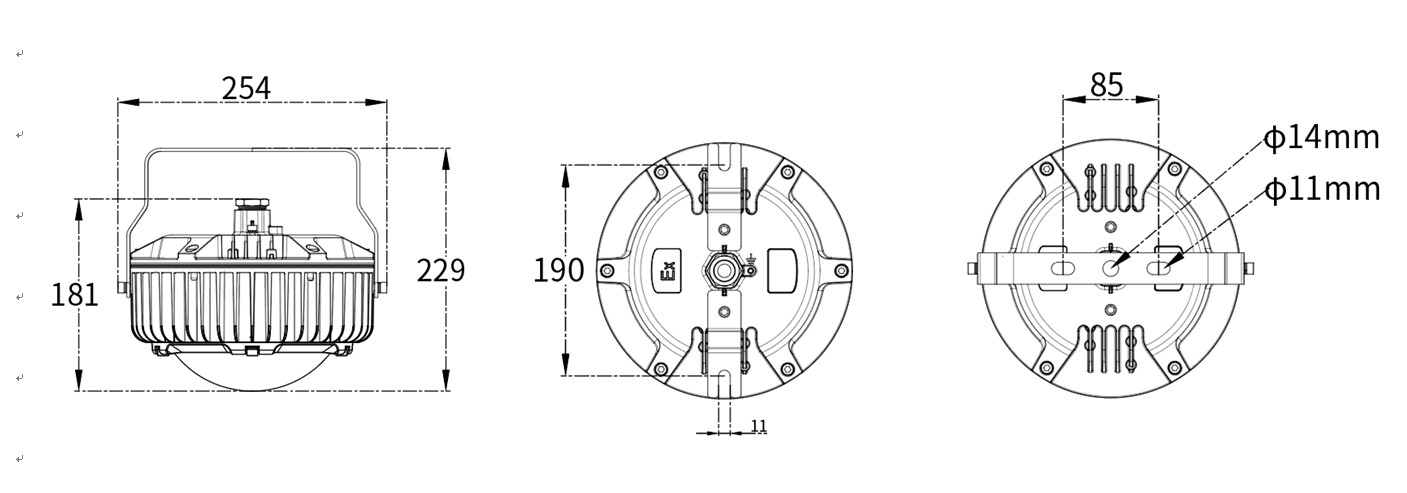

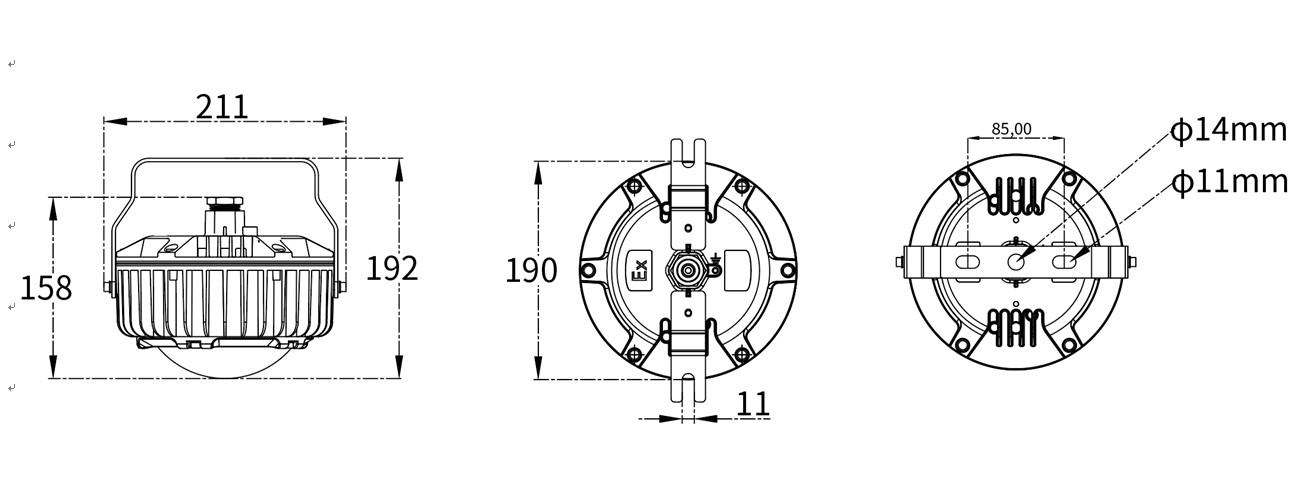

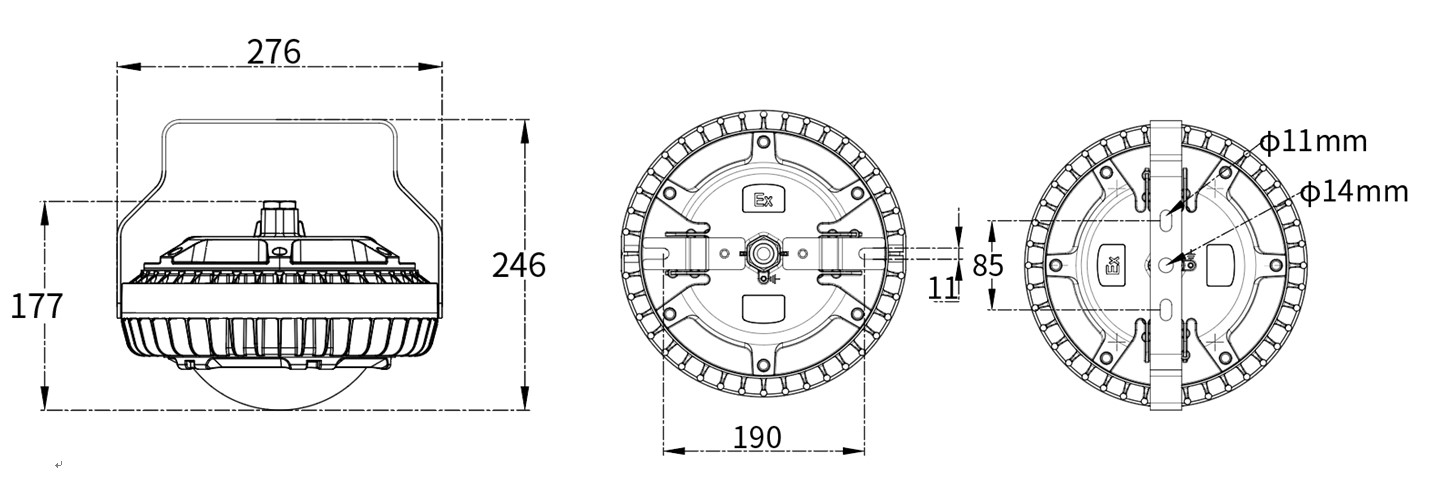

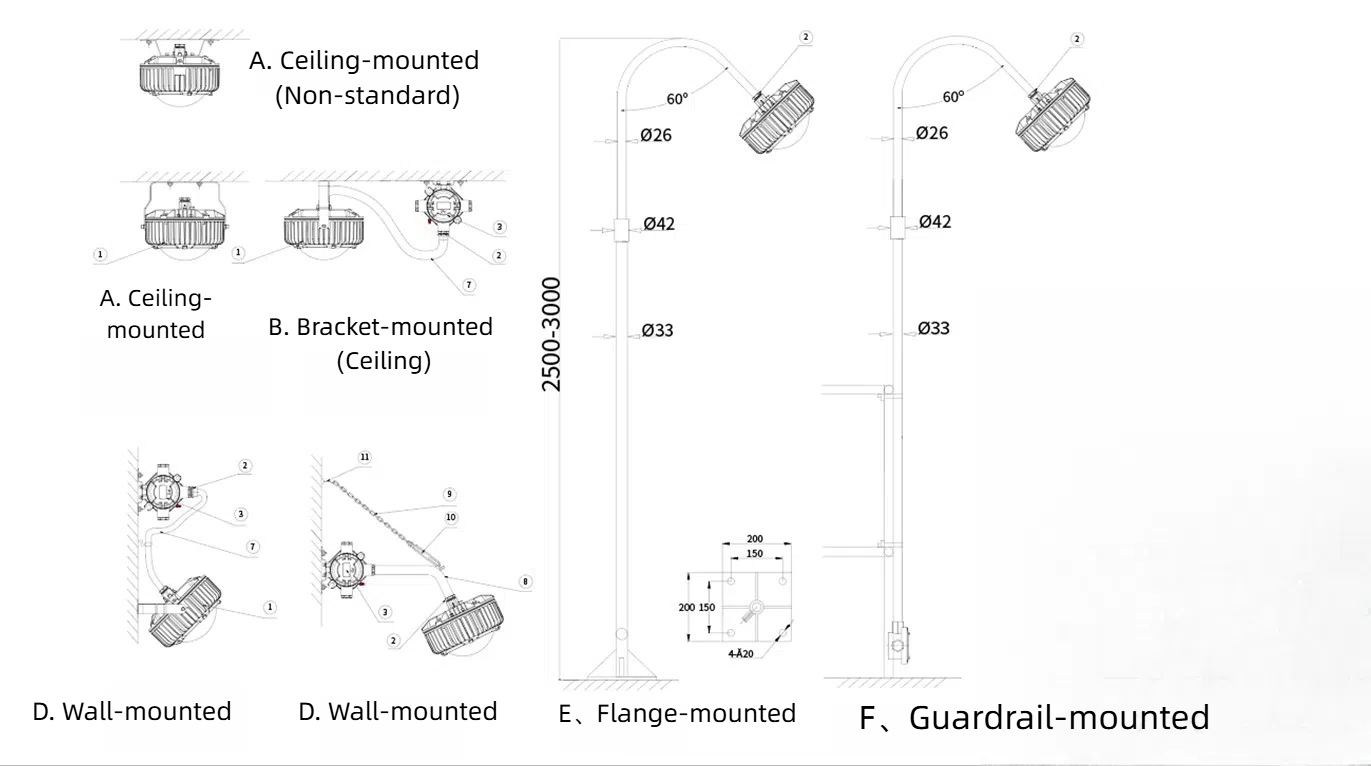

Product Installation
