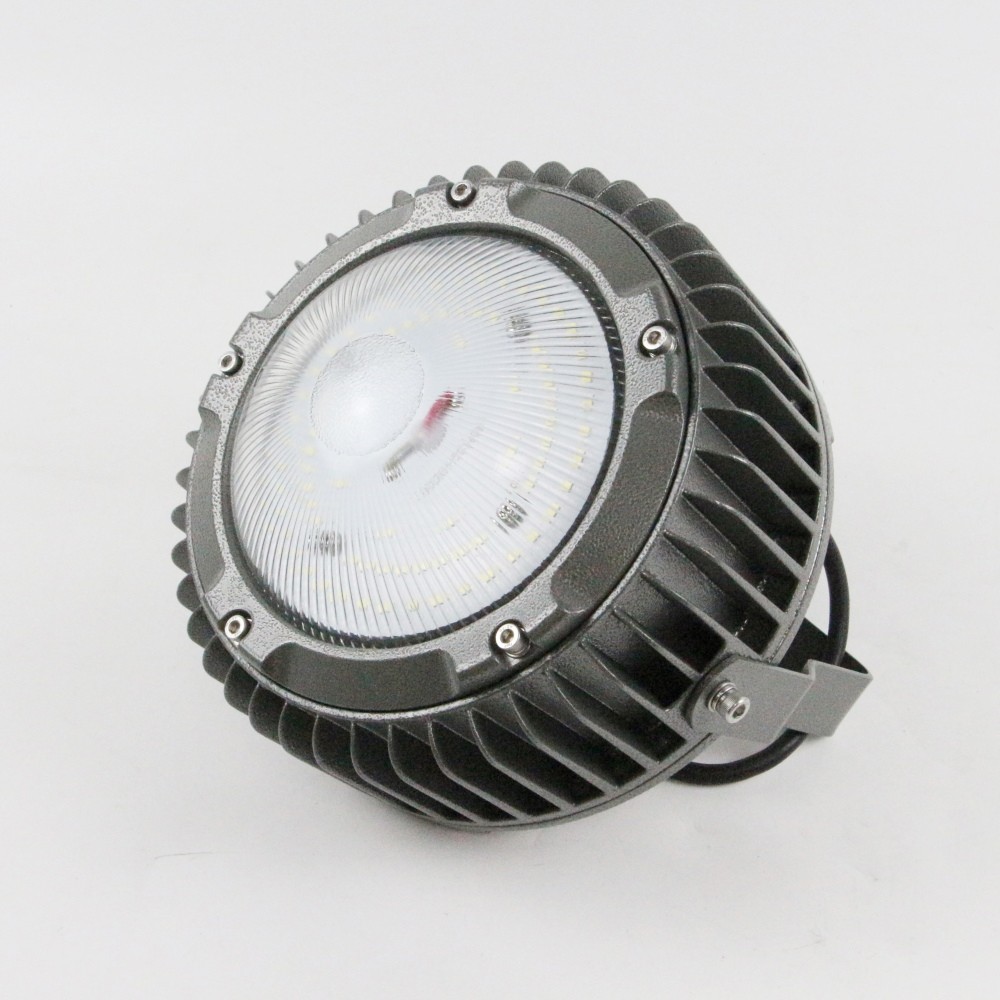

Spark-proof explosion-proof lamp is a specially designed lighting device suitable for flammable and explosive environments. It adopts spark-proof circuit design to avoid arc or spark in normal working state, thus reducing the risk of explosion. It uses LED light source, which has the characteristics of low energy consumption, high brightness and long life.
Product Description
| ITEM | WATT | LUMEN | SIZE | KG |
| MXEL-812(S) | 20W | 2400lm | Φ211×158mm | 2.6kg |
| 30W | 3600lm | |||
| 50W | 6000lm | |||

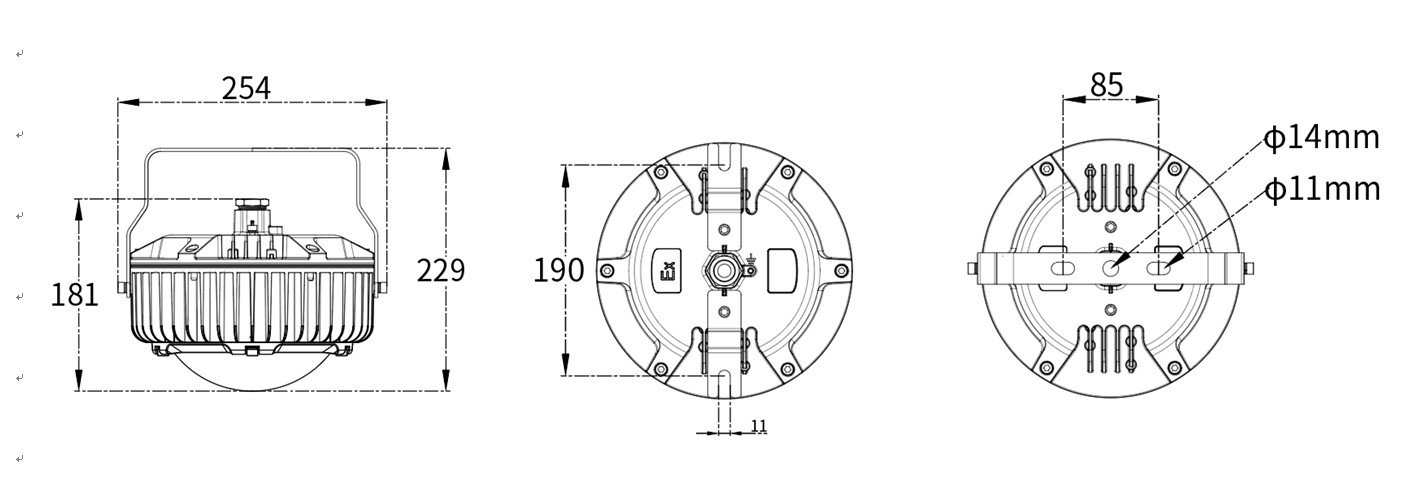

| MXEL-812(M) | 60W | 7200lm | Φ254×181mm | 3.4kg |
| 70W | 8400lm | |||
| 80W | 9600lm | |||

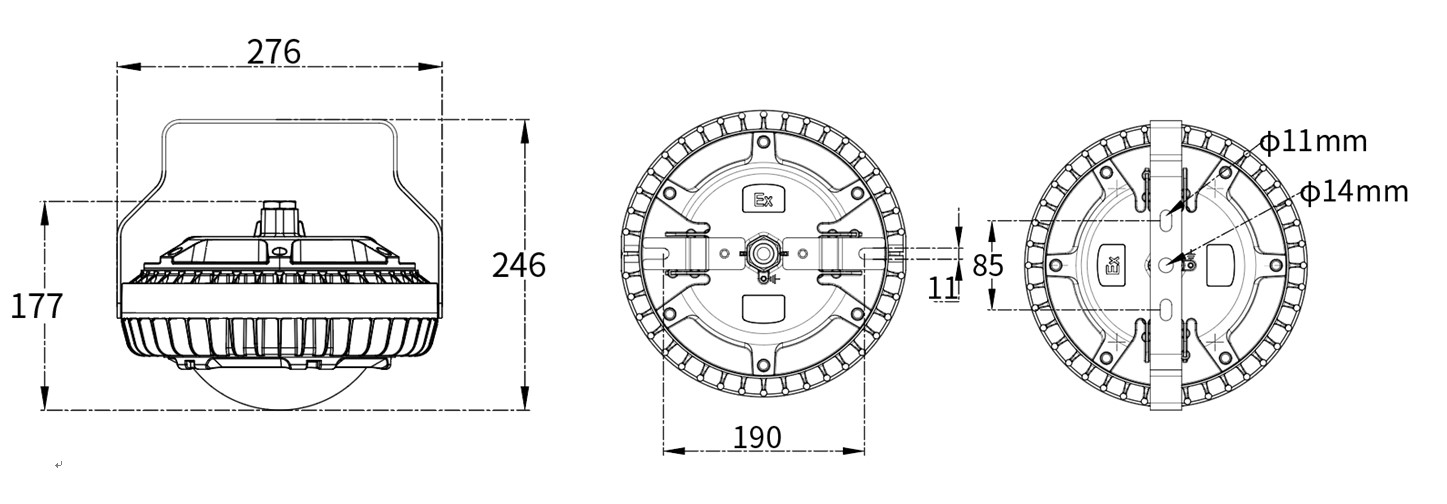

| MXEL-812(L) | 100W | 12000lm | Φ276×177mm | 4.2kg |
| 120W | 14400lm | |||
| OTHERS | Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc. Digital Smart System(DALl, DMX,0-10V) | |||
| COMMON | MODEL: | 812 | EFFICIENCY: | 120Lm/W |
| RATED POWER: | 10-120W | Rated voltage: | AC220V/AC110V/DC24V/DC12V | |
| POWER FACTOR: | >0.95 | OPERATING TEMPERATURE: | -20~40ºC | |
| IP GRADE: | IP66 | ANTI-CORROSION GRADE: | WF2 | |
| BEAM ANGLE: | 110°/115°/112° | CRI: | ≥70RA | |
| LED QTY: | 60/80/120 pcs | BASE SPECIFICATIONS: | CREE3030 | |
| EXPLOSION PROOF GRADE: | Exd IIC T6 | LIFESPAN: | 100000 Hours | |
| CERT | ATEX, CE, IP66, IK10,ROHS,ISO9001 | |||
Product Features
Heat dissipation performance

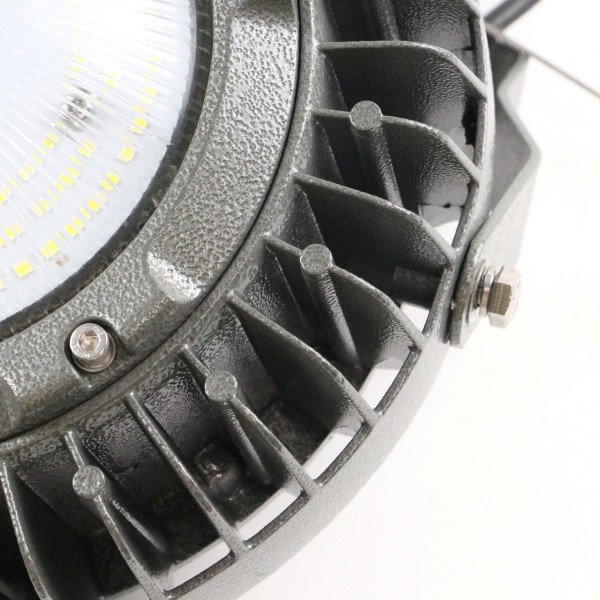

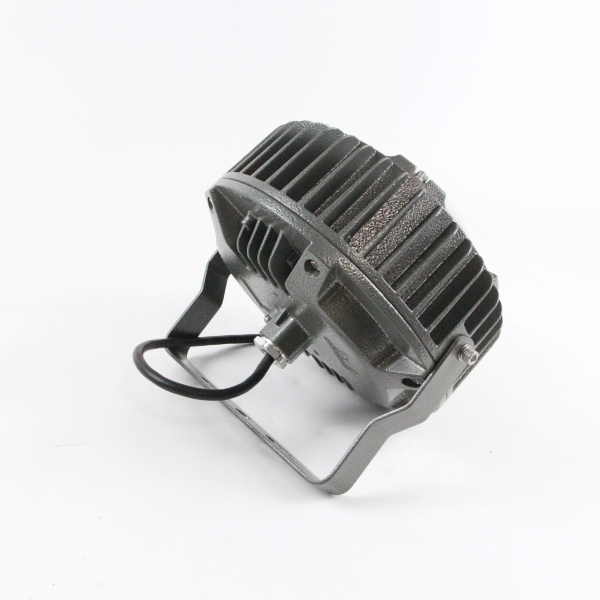

The heat dissipation performance is a highlight of this lamp design. Its light source heat sink adopts an integrated die-casting process, made by high-precision molds and high-quality aluminum alloy materials. This design not only ensures the integrity and firmness of the heat sink structure, but also greatly improves the heat conduction efficiency. The heat sink surface is treated with a special process to increase the heat dissipation area, and the scientific fin design optimizes the air flow, which can quickly transfer the heat generated by the light source to the external environment to avoid heat accumulation. The excellent thermal conductivity and heat dissipation performance effectively reduce the internal temperature of the lamp, prevent the light source from attenuating or the aging of electronic components due to overheating, and thus significantly extend the service life of the lamp.
Surface treatment
Surface treatment is an important part of the manufacturing process of this lamp. After the lamp body is formed, it is first pre-treated by pickling and shot blasting. The pickling process thoroughly removes the oxide layer and impurities on the metal surface to ensure the purity of the base material; the shot blasting process further strengthens the surface structure and enhances adhesion by spraying steel shots at high speed. The lamp body is coated with high-voltage electrostatic spraying technology to ensure that the lamp remains beautiful and functional in harsh environments. In addition, the fasteners of the lamp are all made of high-quality stainless steel, which has excellent corrosion resistance and mechanical strength, and can effectively prevent loosening or failure caused by rust.

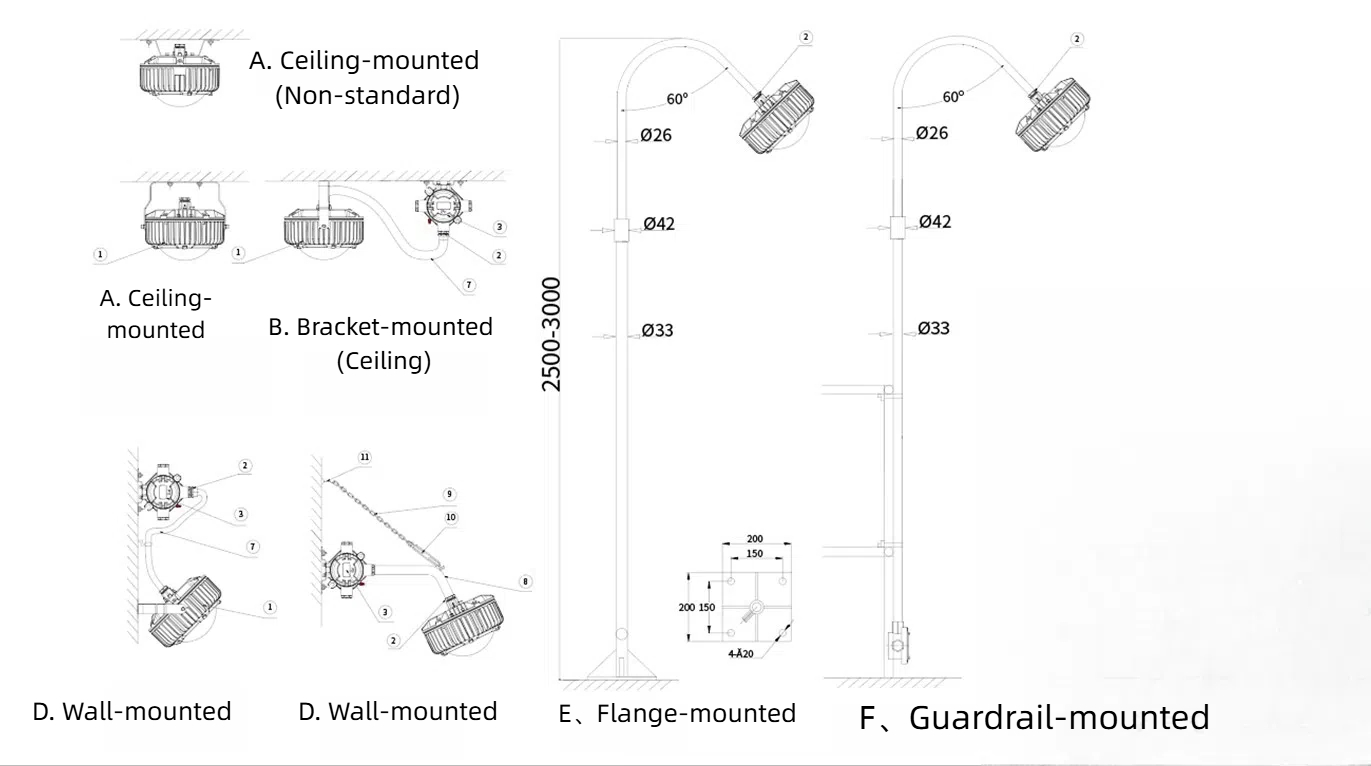

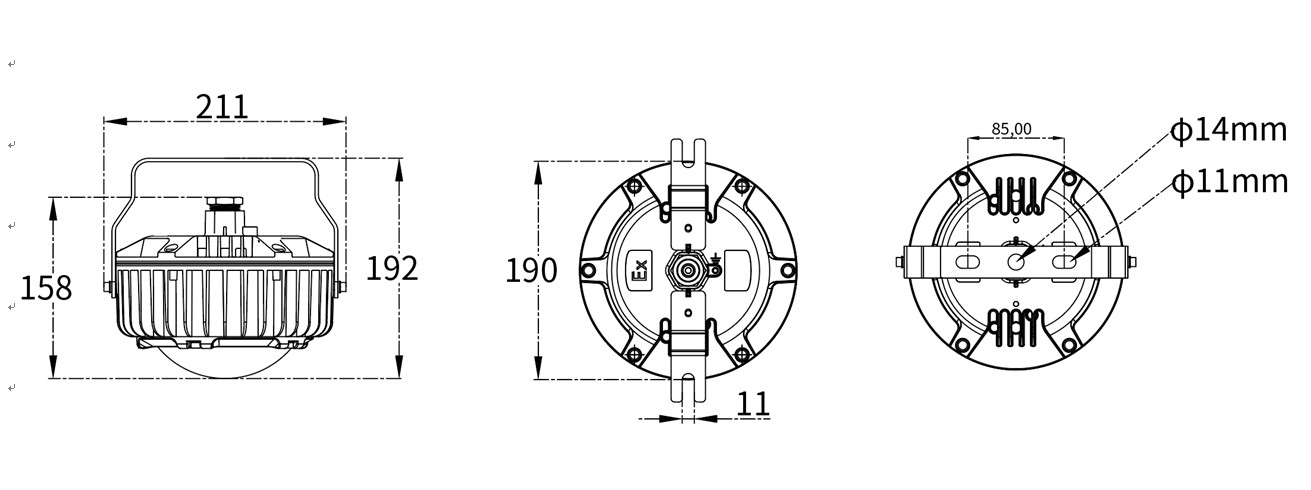

Product Installation

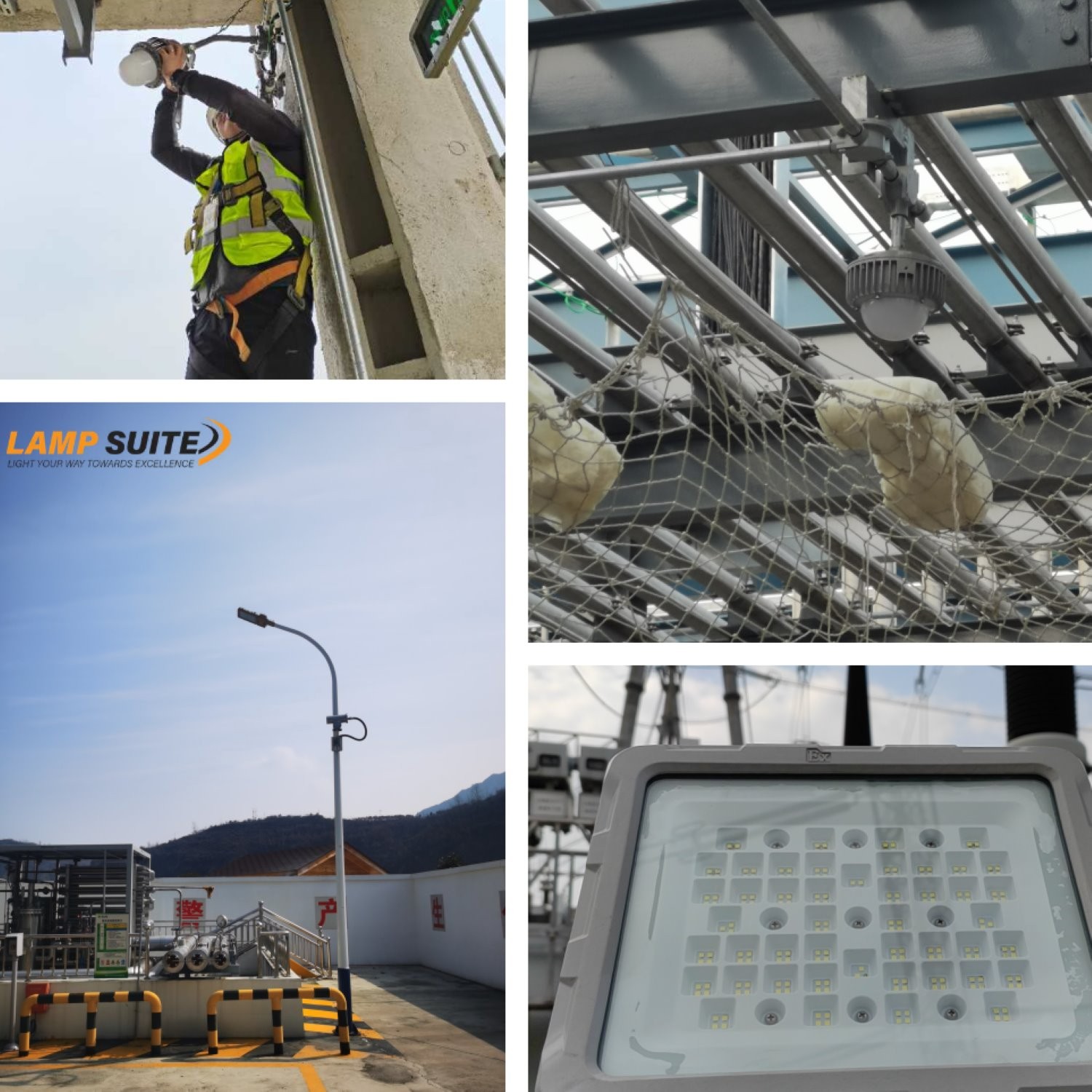

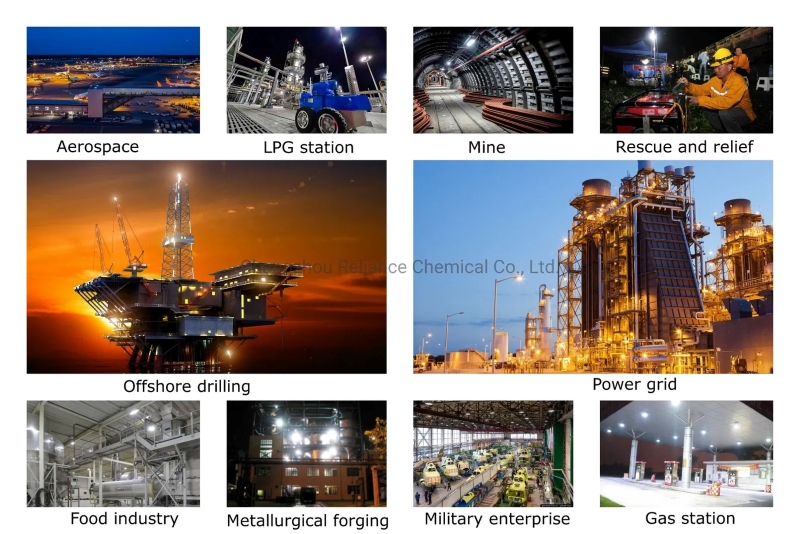

Product Applications
Petrochemical industry
Mines and tunnels
Pharmaceutical and food processing
Aerospace and military industry
Energy and power industry
Shipping and offshore engineering
Hazardous goods storage and transportation
Laboratories and scientific research facilities
