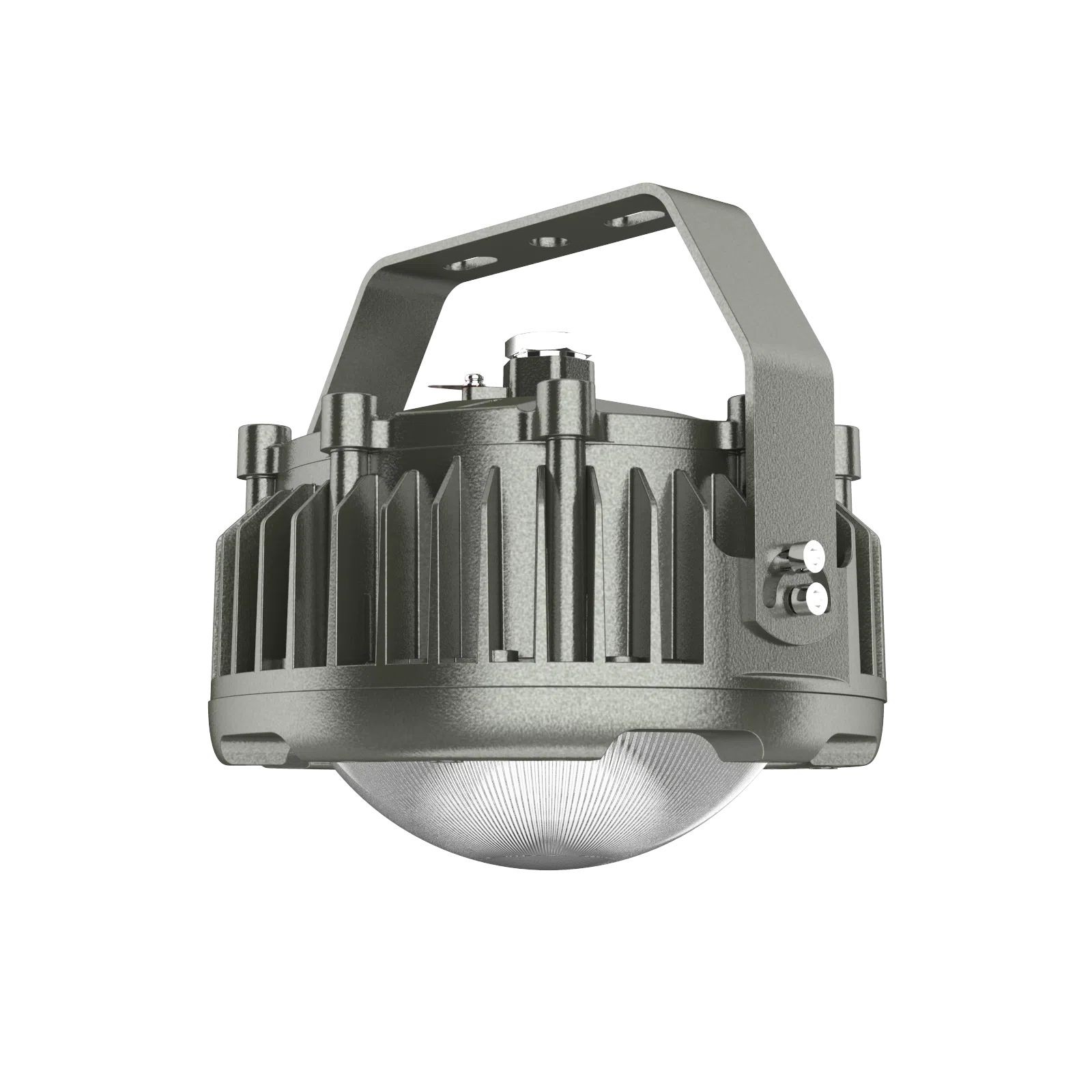

Product Parameters
| | | | |
| | | AC220V/AC110V/DC24V/DC12V | |
| |
| |
| |
| |
| Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc. Digital Smart System(DALl, DMX,0-10V) |
| MODEL: | 8231C | ANTI-CORROSION GRADE: | WF2 |
EFFICIENCY: | 120Lm/W | POWER FACTOR: | >0.95 |
RATED POWER: | 50-100W | FREQUENCY: | 50-60Hz |
IP GRADE: | IP66 | BEAM ANGLE: | 90° |
OPERATING TEMPERATURE: | -20~40ºC | STORAGE TEMPERATURE: | -20~40ºC |
CRI: | ≥70RA | LED QTY: | 100pcs |
EXPLOSION PROOF GRADE: | Exd IIC T6 | BASE SPECIFICATIONS: | CREE3030 |
LIFESPAN: | 100000 Hours | START-UP TIME: | ≤0.2 s |
SIZE: | φ253×185mm | WEIGHT: | 4.8kg |
| ATEX, CE, IP66, IK10,ROHS,ISO9001 |
| 1. Product configuration: The light source adopts (CREE) brand LED light-emitting chip, with ultra-high light efficiency and an average service life of up to 100,000 hours. It is driven by a first-line brand power supply and processed with wide voltage technology. The quality is guaranteed, with constant current output, short circuit, overvoltage protection and other characteristics.
2. Heat dissipation design: The light source radiator adopts one-piece die-casting, with a tight structure, excellent thermal conductivity and heat dissipation performance, and effectively controls the temperature rise of the lamp within a reasonable range, thereby ensuring the service life of the lamp.
3. Explosion-proof performance: The products are strictly developed and designed in accordance with the national explosion-proof standard GB3836 series documents and have obtained national certified explosion-proof certificates and test reports. The certificates are complete, the manufacturing is precision, and the explosion-proof performance is safe and reliable.
4. Protective lampshade: It adopts high borosilicate tempered glass, which is corrosion-resistant, impact-resistant, with high light transmittance, uniform and soft light irradiation, and anti-glare.
5. Protection and anti-corrosion: The lamp body adopts high-voltage electrostatic spraying treatment, and the screw fasteners are made of stainless steel. With high-precision processing technology, it has the characteristics of high corrosion resistance, high waterproofness, and high dustproofness.

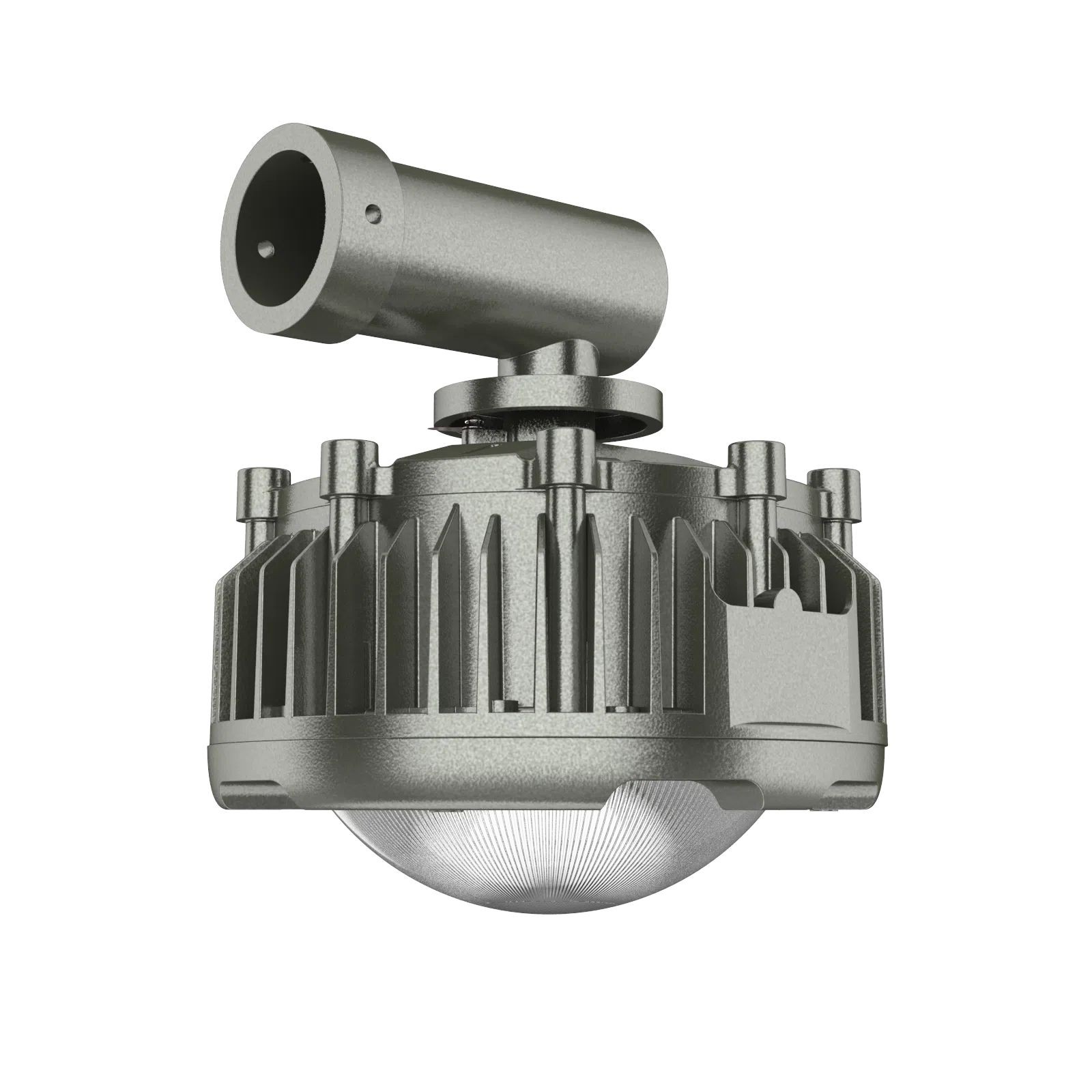

6. Easy installation: It can be installed in various ways such as ceiling and hanging rod according to the needs, which can meet the use of fixed lighting in various places such as low ceiling, platform, high ceiling and high shed. The independent human-machine wiring cavity design can quickly realize the series and parallel connection requirements of lamps, making installation and wiring more convenient.
7. Product appearance: The appearance is a perfect fusion of industrial elements and structure, with exquisite design, clear edges and corners, and a special gray color scheme, which is suitable for matching various factory environments. |
Product Details

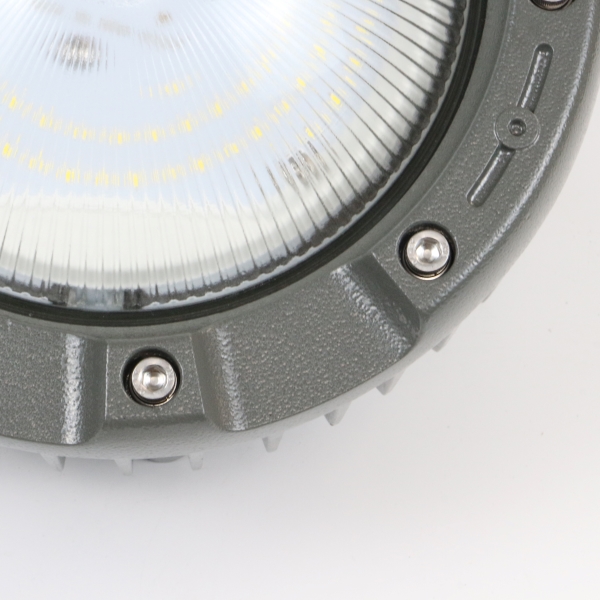

Tempered glass
Adopts high borosilicate tempered glass, which is corrosion-resistant, impact-resistant, has high light transmittance, and provides even and soft light; the inner wall is treated with prisms to prevent glare

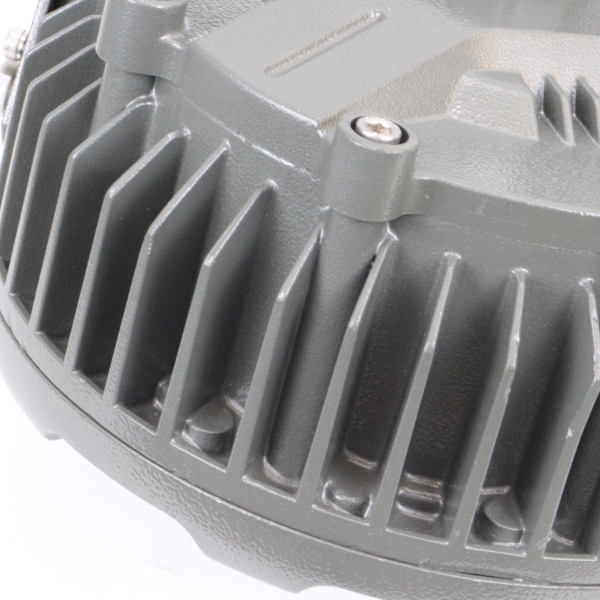

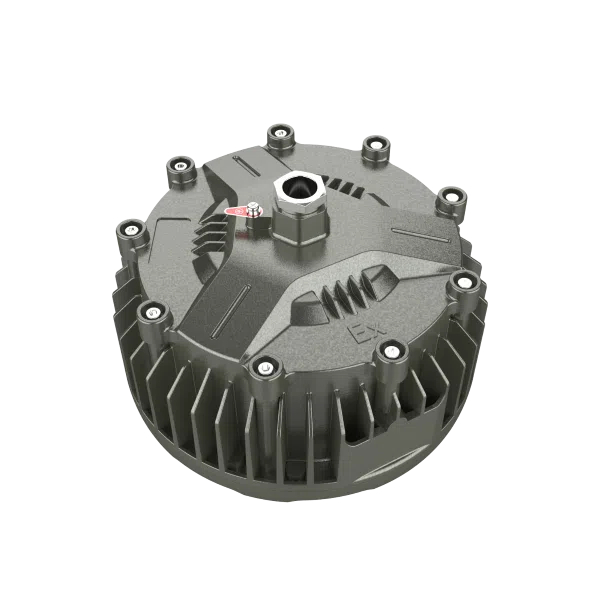

Heat dissipation performance
The light source radiator is made of one-piece die-casting molding, the structure is firm, and has excellent thermal conductivity and heat dissipation performance. lamp life.
Surface treatment

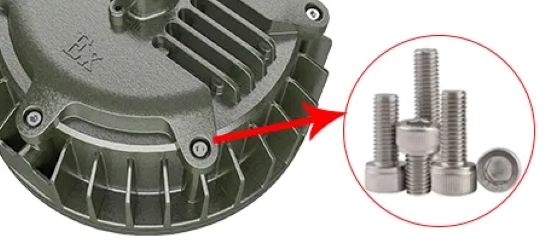

The lamp body is treated with high-voltage electrostatic spraying, and the screw fasteners are made of stainless steel. With high-precision processing technology, it has the characteristics of high corrosion resistance, high waterproofness, and high dust resistance.
Ultra-high anti-corrosion
The surface of the lamp body radiator is treated with high-voltage electrostatic spraying, and the screw fasteners are made of stainless steel.
With high-precision processing technology, it has the characteristics of high anti-corrosion, high anti-rust, high water resistance, etc.
It is especially suitable for all kinds of strong acid, Work in harsh environments with strong alkali and high protection requirements.

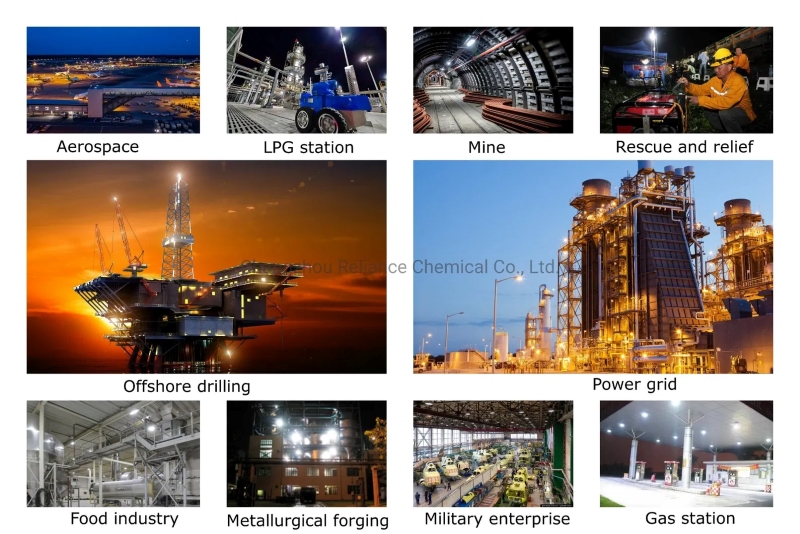

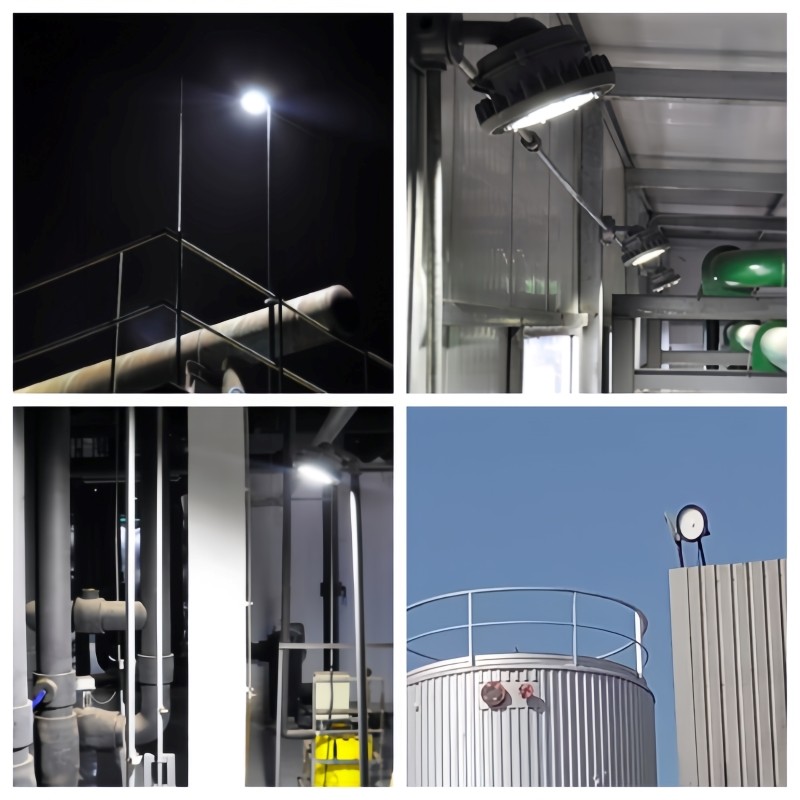

Product Applications
Oil and Gas Facilities
Chemical Processing Plants
Mining Operations
Industrial Zones with Hazardous Materials
Marine Environments
Wastewater Treatment Plants
Chemical Storage AreasRailway and Highway Tunnels
High-Risk Industrial Zones
Iia, Iib, Iic Explosive Gas Atmosphere
Wet Fire Explosive Location
