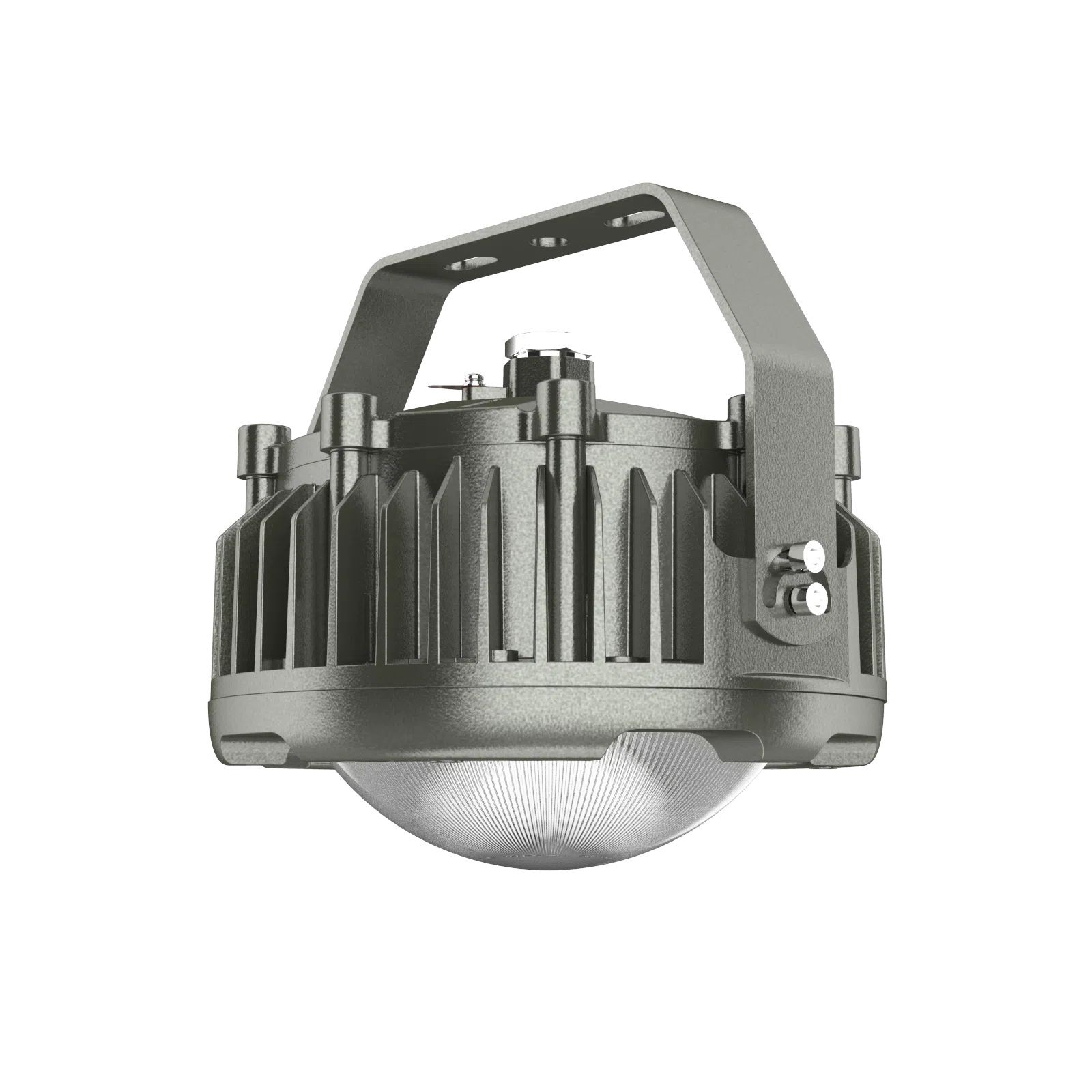

Product Description
| | | | |
| | | AC220V/AC110V/DC24V/DC12V | |
| |
| |
| |
| |
| Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc. Digital Smart System(DALl, DMX,0-10V) |
| MODEL: | 8231C | ANTI-CORROSION GRADE: | WF2 |
EFFICIENCY: | 120Lm/W | POWER FACTOR: | >0.95 |
RATED POWER: | 50-100W | FREQUENCY: | 50-60Hz |
IP GRADE: | IP66 | BEAM ANGLE: | 90° |
OPERATING TEMPERATURE: | -20~40ºC | STORAGE TEMPERATURE: | -20~40ºC |
CRI: | ≥70RA | LED QTY: | 100pcs |
EXPLOSION PROOF GRADE: | Exd IIC T6 | BASE SPECIFICATIONS: | CREE3030 |
LIFESPAN: | 100000 Hours | START-UP TIME: | ≤0.2 s |

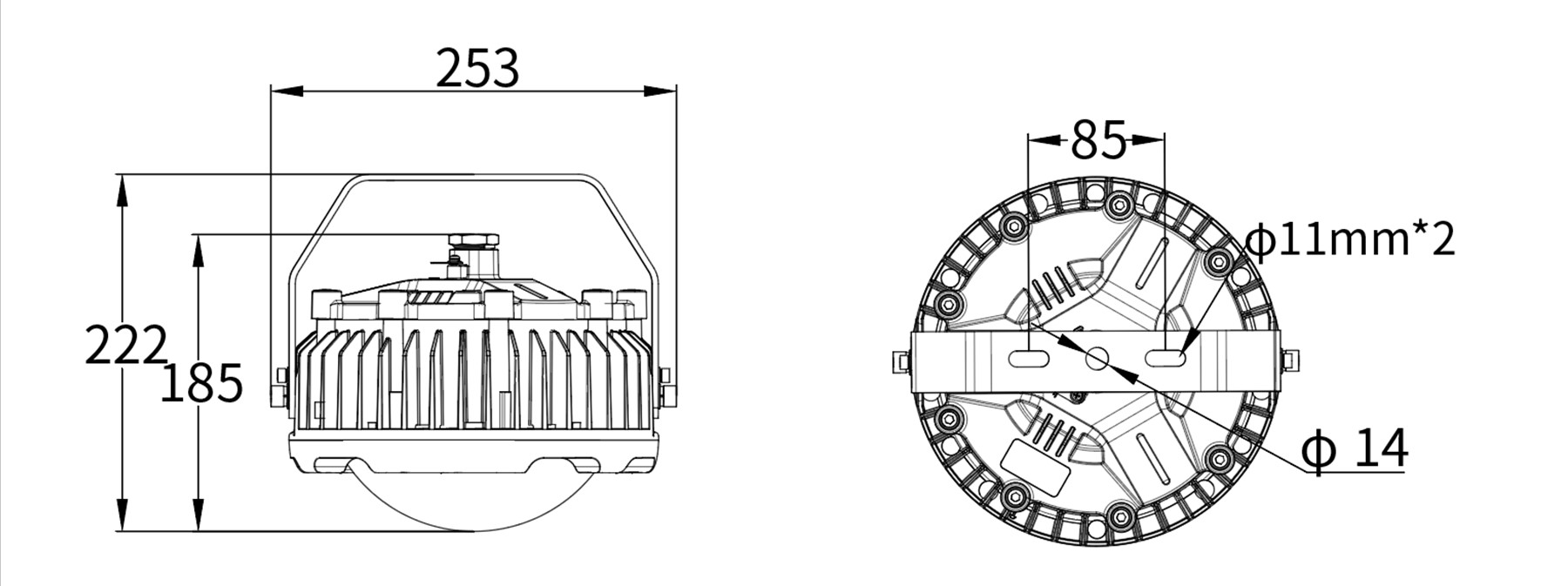

SIZE: | φ253×185mm | WEIGHT: | 4.8kg |
| ATEX, CE, IP66, IK10,ROHS,ISO9001 |
Product Features

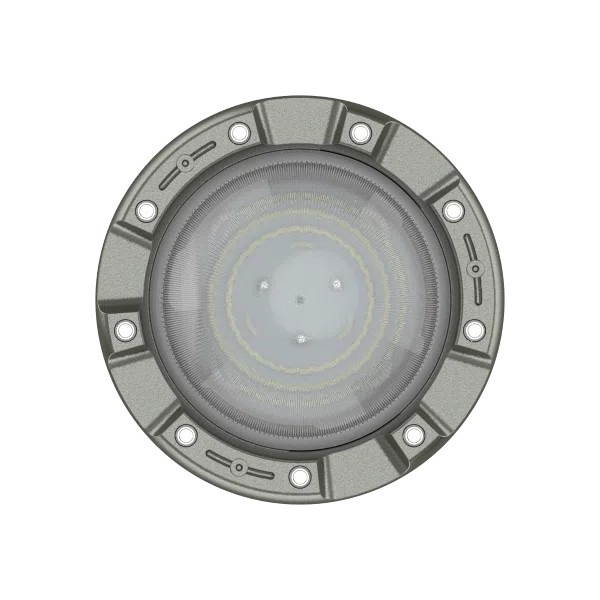

1. Protective Lampshade
The lampshade is made of high borosilicate tempered glass, which offers exceptional durability and protection. It is corrosion-resistant and impact-resistant, ensuring reliable performance in harsh environments. With high light transmittance, it provides uniform and soft illumination, effectively reducing glare and enhancing visual comfort.
2. Protection and Anti-Corrosion
The lamp body undergoes a high-voltage electrostatic spraying process, forming a protective coating that enhances its resistance to corrosion. Additionally, all screw fasteners are made of stainless steel, ensuring long-term durability and preventing rust. With high-precision processing technology, the lamp offers superior waterproof, dustproof, and corrosion-resistant properties, making it suitable for use in demanding industrial environments.
3. Easy Installation

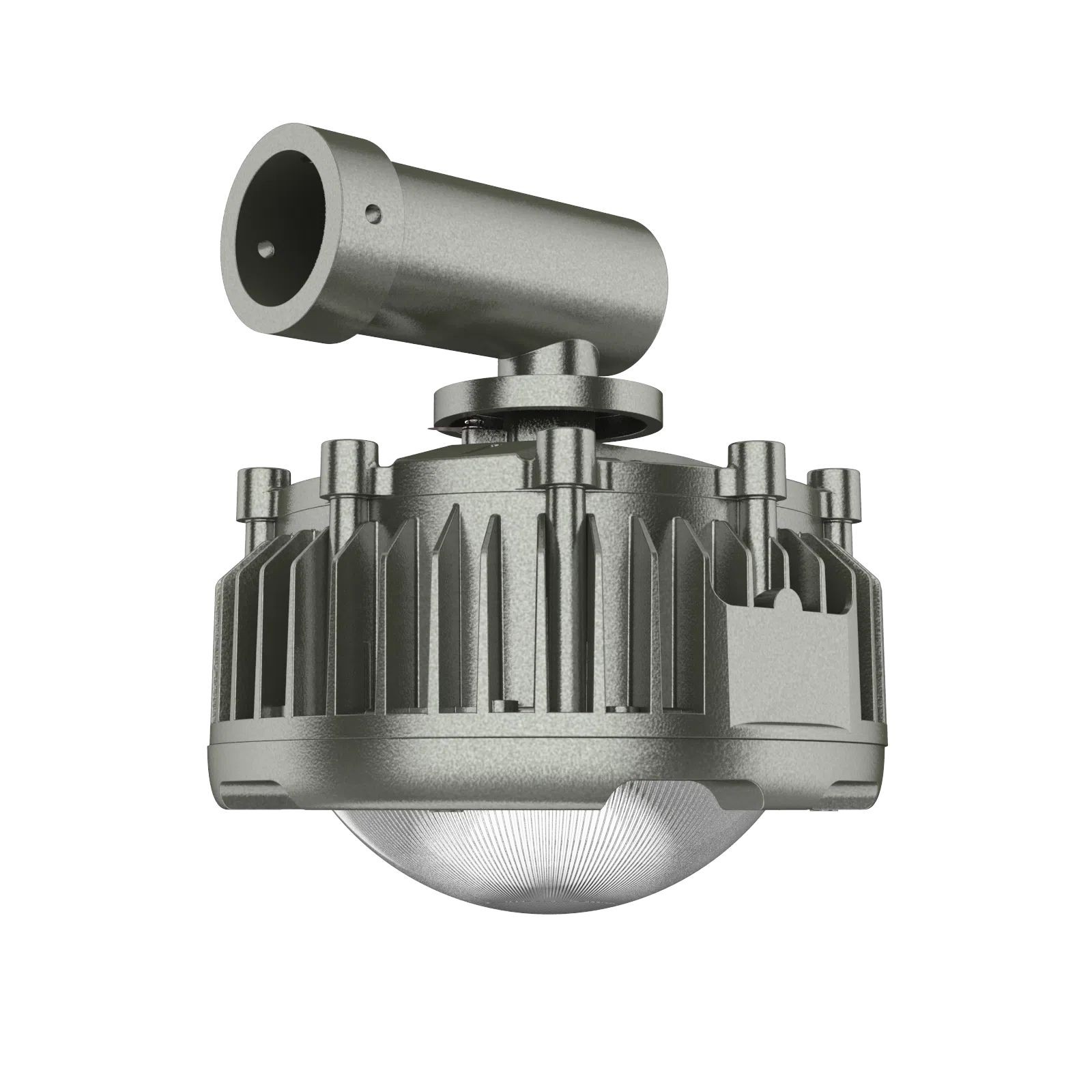

Designed for versatile installation, the lamp can be mounted in various ways, such as ceiling installation or hanging rod mounting, to accommodate different lighting needs. It is ideal for low ceilings, platforms, high ceilings, and large industrial spaces. The independent human-machine wiring cavity design allows for quick and efficient series or parallel connections, simplifying the installation and wiring process.
4. Product Appearance
The lamp features an industrial-inspired design, seamlessly blending aesthetic appeal with structural functionality. With its precisely defined edges and refined details, the design exudes modern industrial craftsmanship. The unique gray color scheme is carefully chosen to complement a variety of factory and industrial environments, ensuring both visual harmony and practical utility.
Product Details

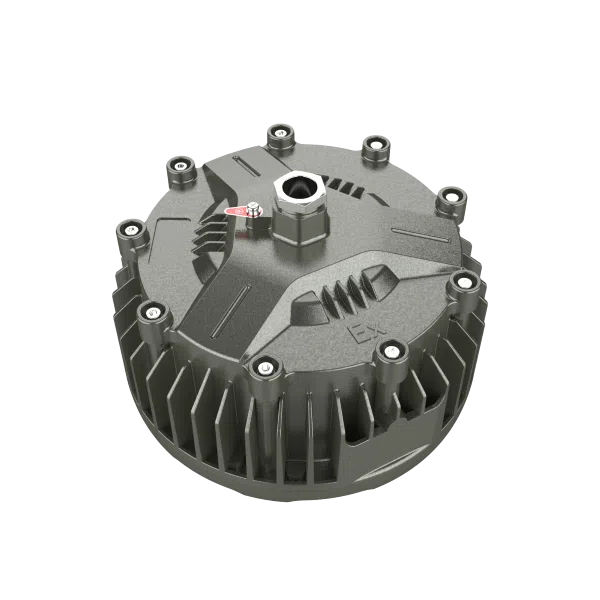

Surface Treatment
The lamp body undergoes a high-voltage electrostatic spraying process, forming a uniform, durable protective coating that enhances its resistance to wear, corrosion, and environmental damage. This advanced surface treatment effectively prevents oxidation and rust, ensuring long-term stability even in harsh industrial conditions, such as high humidity, chemical exposure, and extreme temperatures.To further enhance durability, all screw fasteners are made of high-quality stainless steel, providing exceptional resistance to rust and corrosion. With high-precision processing technology, the lamp achieves superior waterproof, dustproof, and corrosion-resistant properties, making it suitable for demanding outdoor and industrial applications.

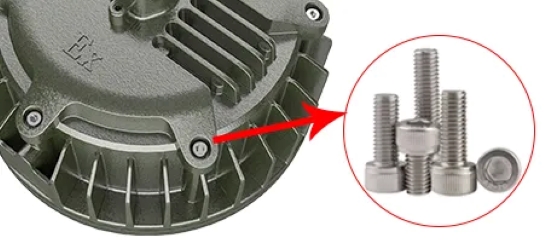

Ultra-high anti-corrosion
The surface of the lamp body radiator is treated with high-voltage electrostatic spraying, and the screw fasteners are made of stainless steel.
With high-precision processing technology, it has the characteristics of high anti-corrosion, high anti-rust, high water resistance, etc.
It is especially suitable for all kinds of strong acid, Work in harsh environments with strong alkali and high protection requirements.

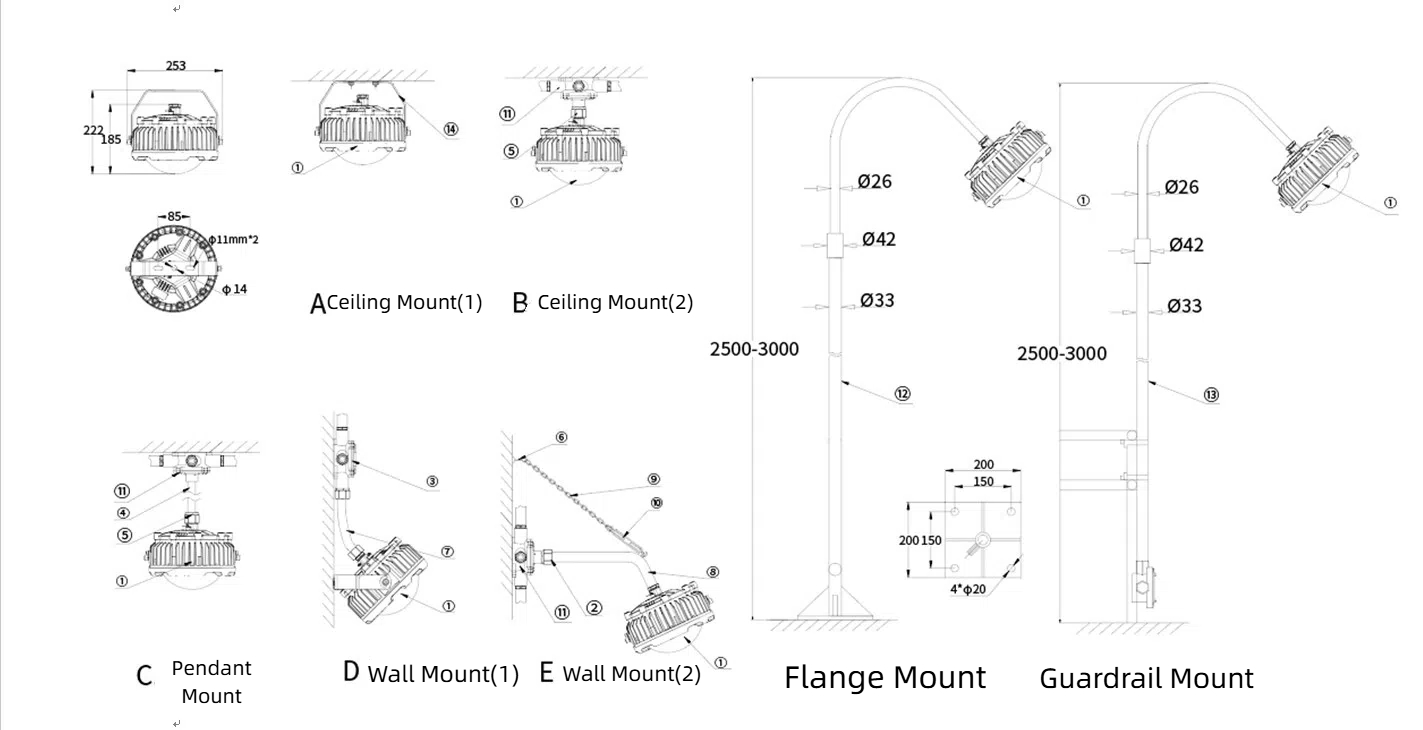

Product Installations

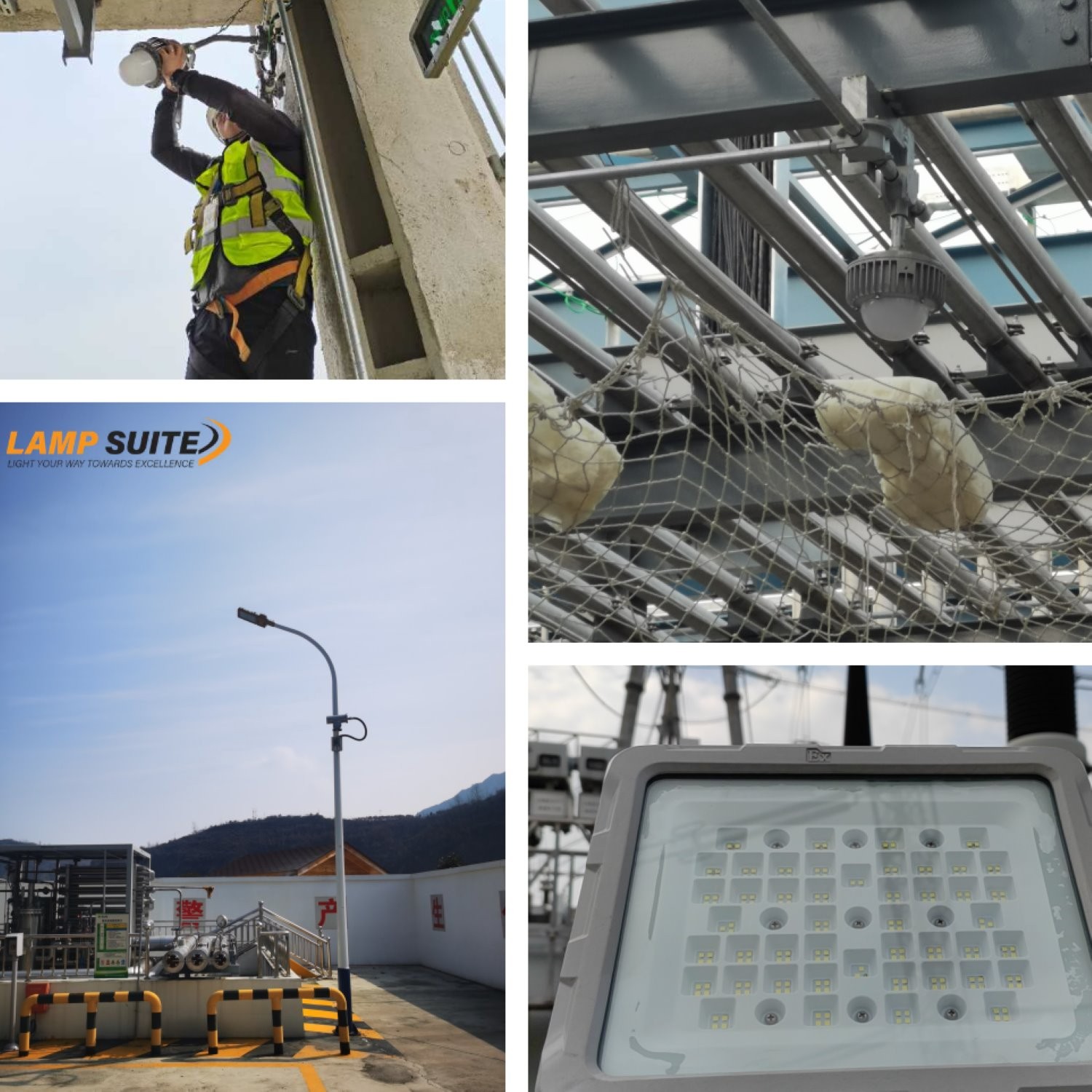

Product Applications
Refinery
Chemical plant
Coal mine
Metal mine
Drilling platform
Oil and gas pipeline
Production workshop
Granary
Flour mill
Fuel storage area
Ammunition depot
Sewage treatment plant
Dockyard
Substation
