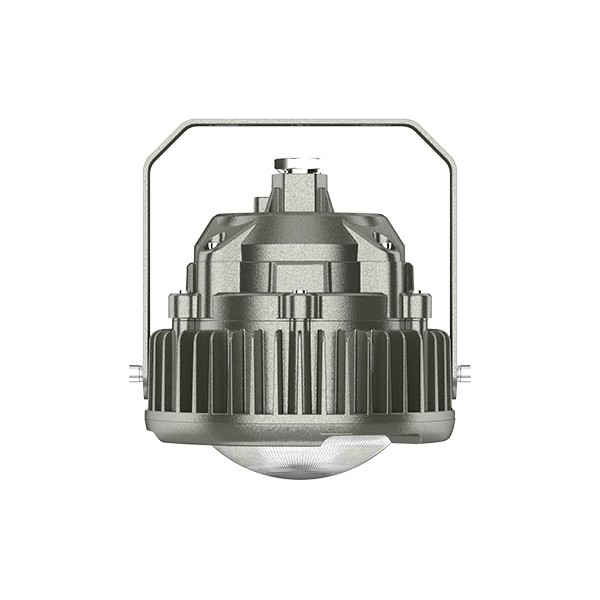

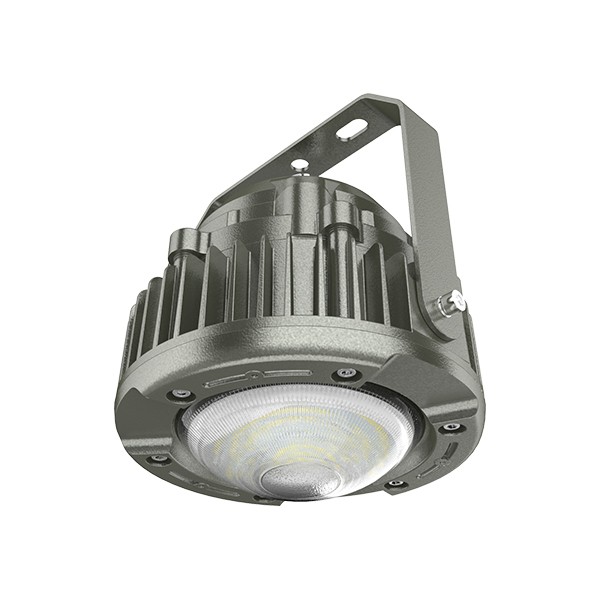

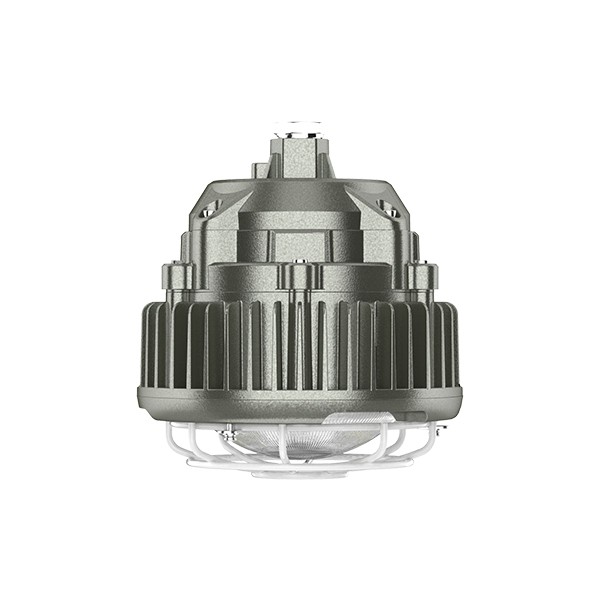

MXEL 8237 ATEX Explosion proof high bay light is widely used for work lighting in dangerous places such as petroleum exploration, oil refining, chemical industry, and electric power;
MXEL 8237 ATEX Explosion proof high bay light is applicable to explosive gas or dust environment in Zone 1, Zone 2 or Zone 21, Zone 22;
MXEL 8237 ATEX Explosion proof high bay light is applicable ambient temperature is -40℃~40℃/55℃.
| Model | MXEL 8237 |
| Rated Voltage | AC220V |
| Power | 10-50W |
| Frequency | 50Hz |
| Light Efficiency | 120Lm/W |
| Power Factor | PF＞0.95 |
| Operating Temperature | -20~+40℃ |
| Storage Temperature | -20~+40℃ |
| Protection Level | IP66 |
| Lighting Angle | 120° |
| Light Source | LED |
| Correlate Color Temperature | 3000-6500K |
| Color Rendering Index | ≥70RA |
| LED CHIP Qty | 60PCS |
| Base Specifications | CREE3030 |
| LED'S Operating Life | 100000Hours |
| Start-up time | ≤0.2S |
| Anti-corrosion Grade | WF2 |
| Explosion Proof Grade | Ex d IIC T6 Gb |
| Inlet thread | DN20 |
| Cable length | 50cm |
| Weight | 2.5KG |

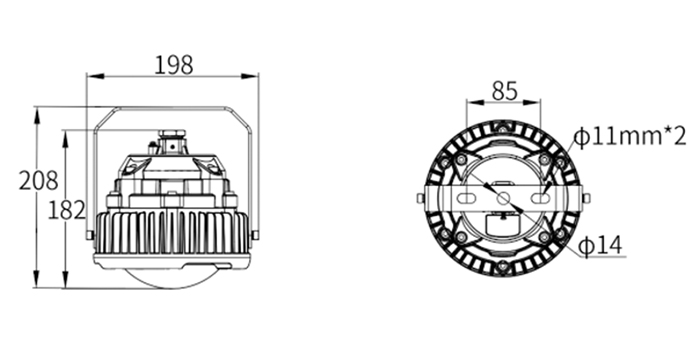

| Size | Φ198×182MM |
1. MXEL 8237 ATEX Explosion proof high bay light is widely used for work lighting in dangerous places such as petroleum exploration, oil refining, chemical industry, and electric power;
2. Applicable to places with high humidity and corrosion protection;
3. MXEL 8237 ATEX Explosion proof high bay light is applicable to explosive gas or dust environment in Zone 1, Zone 2 or Zone 21, Zone 22;
4. Suitable for IIA, IIB, IIC explosive gas environment;
5. Suitable for temperature group T1~T6/ T5 group;
6. MXEL 8237 ATEX Explosion proof high bay light is applicable ambient temperature is -40℃~40℃/55℃.
