Ex-proof Luminaire High Bay Light

Rugged explosion proof construction makes ATEX explosion proof high bay light ideal for rough industrial environment.

ATEX Explosion proof high bay light

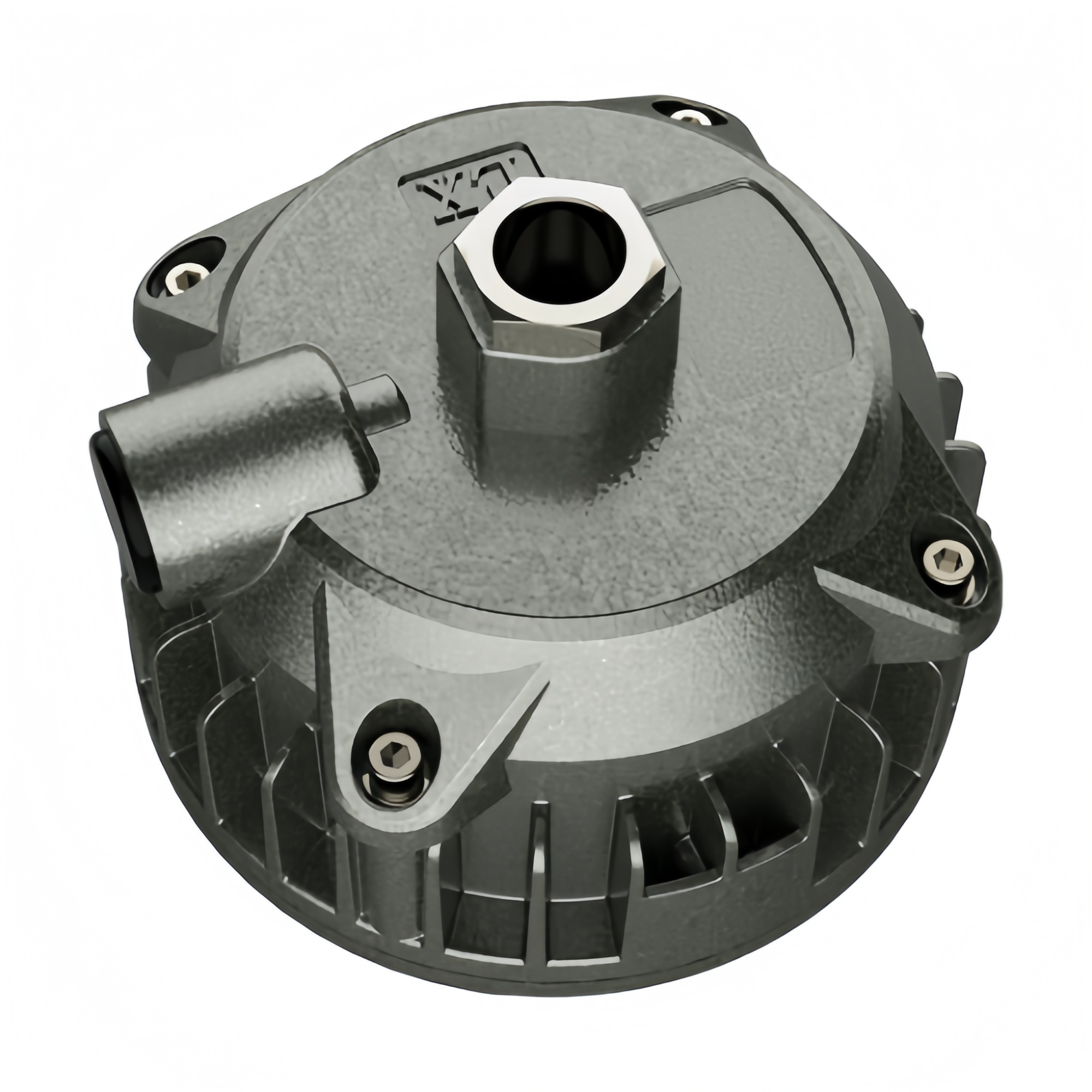

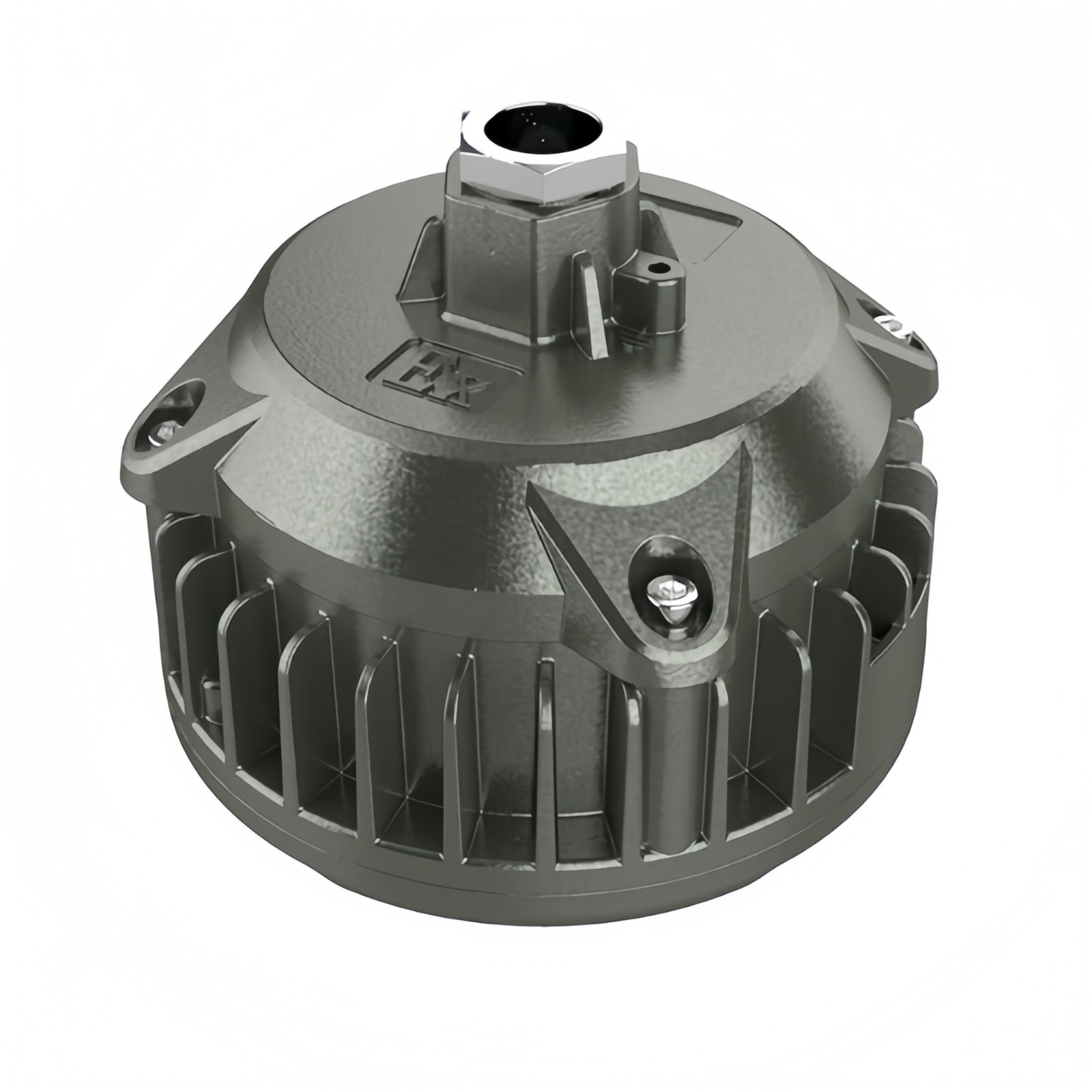

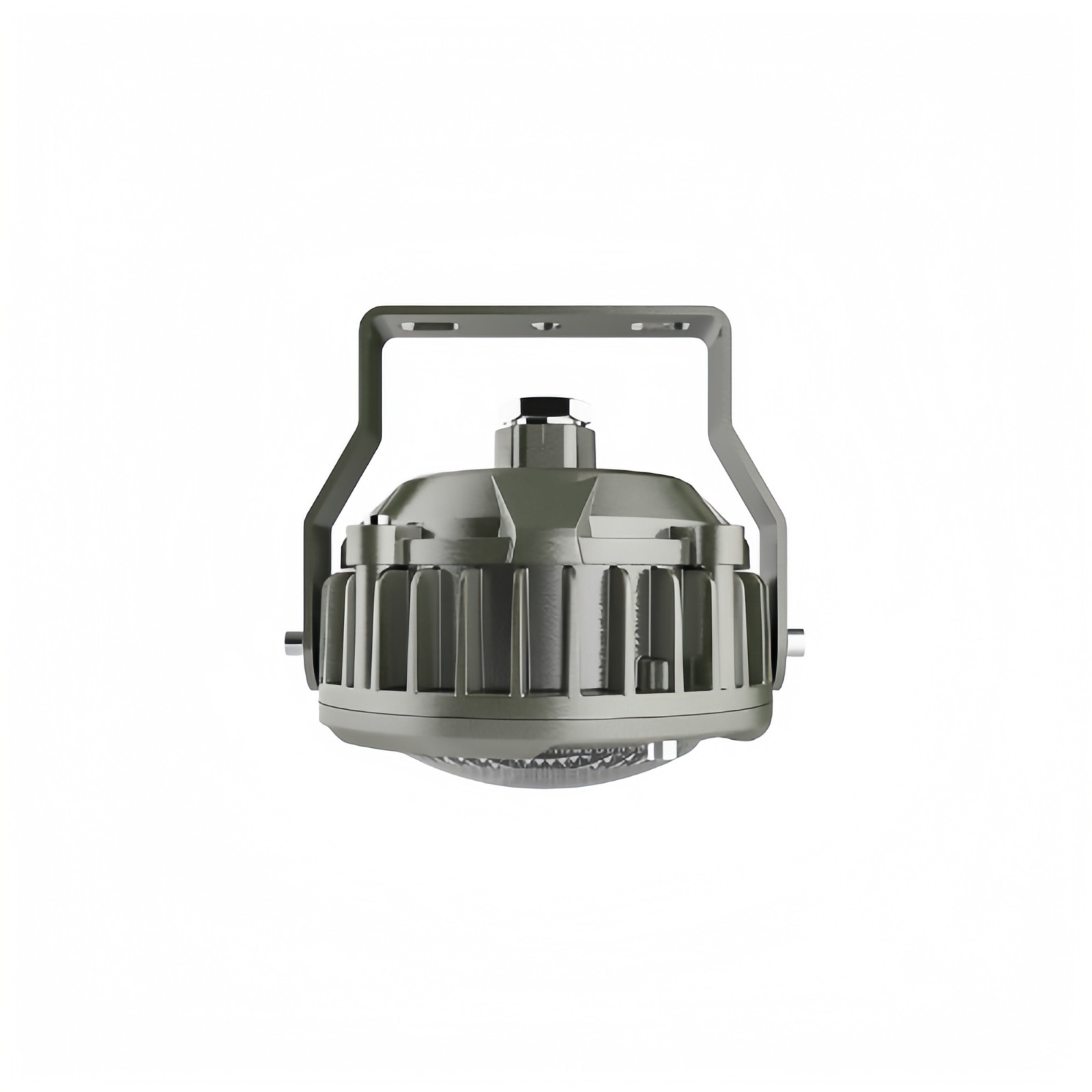

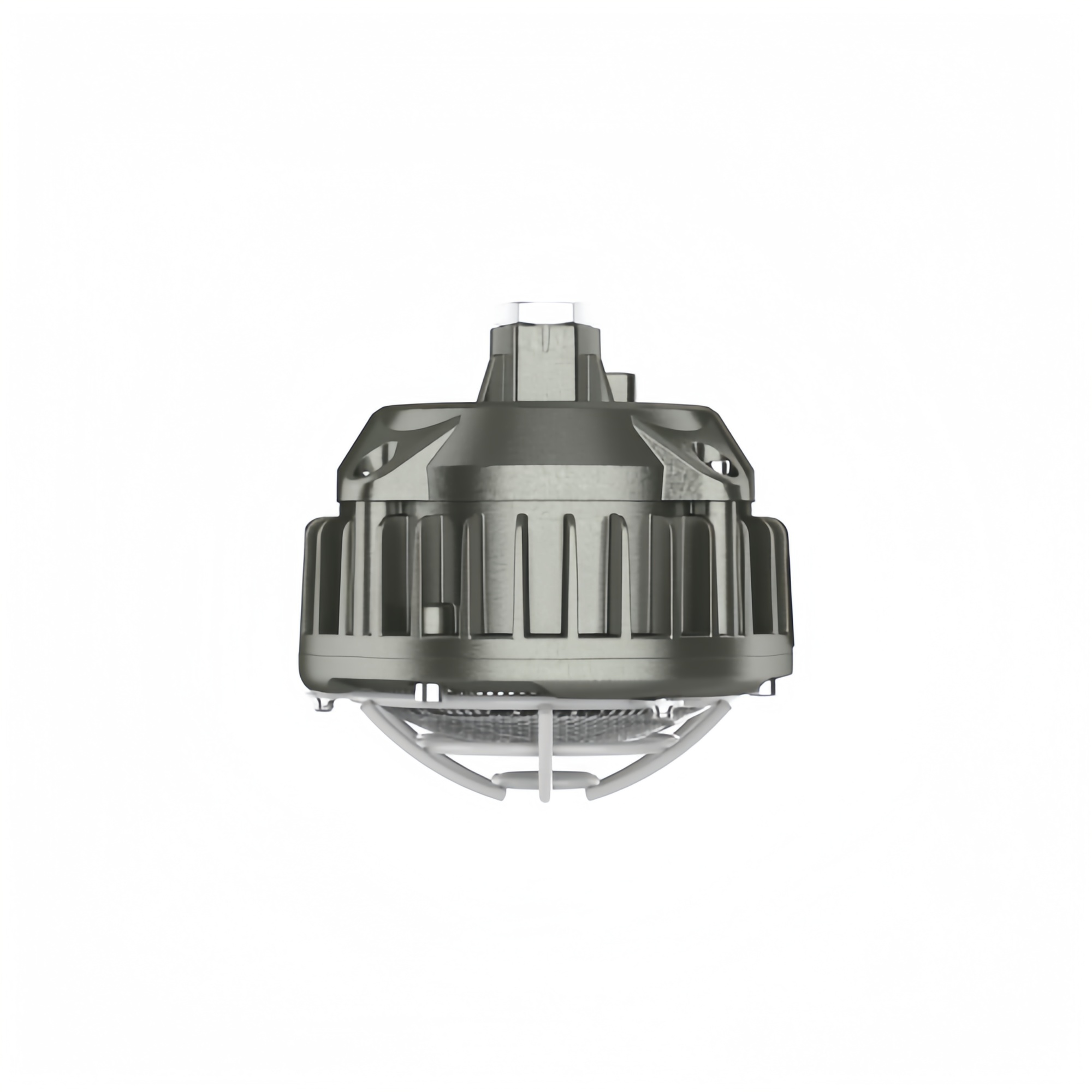

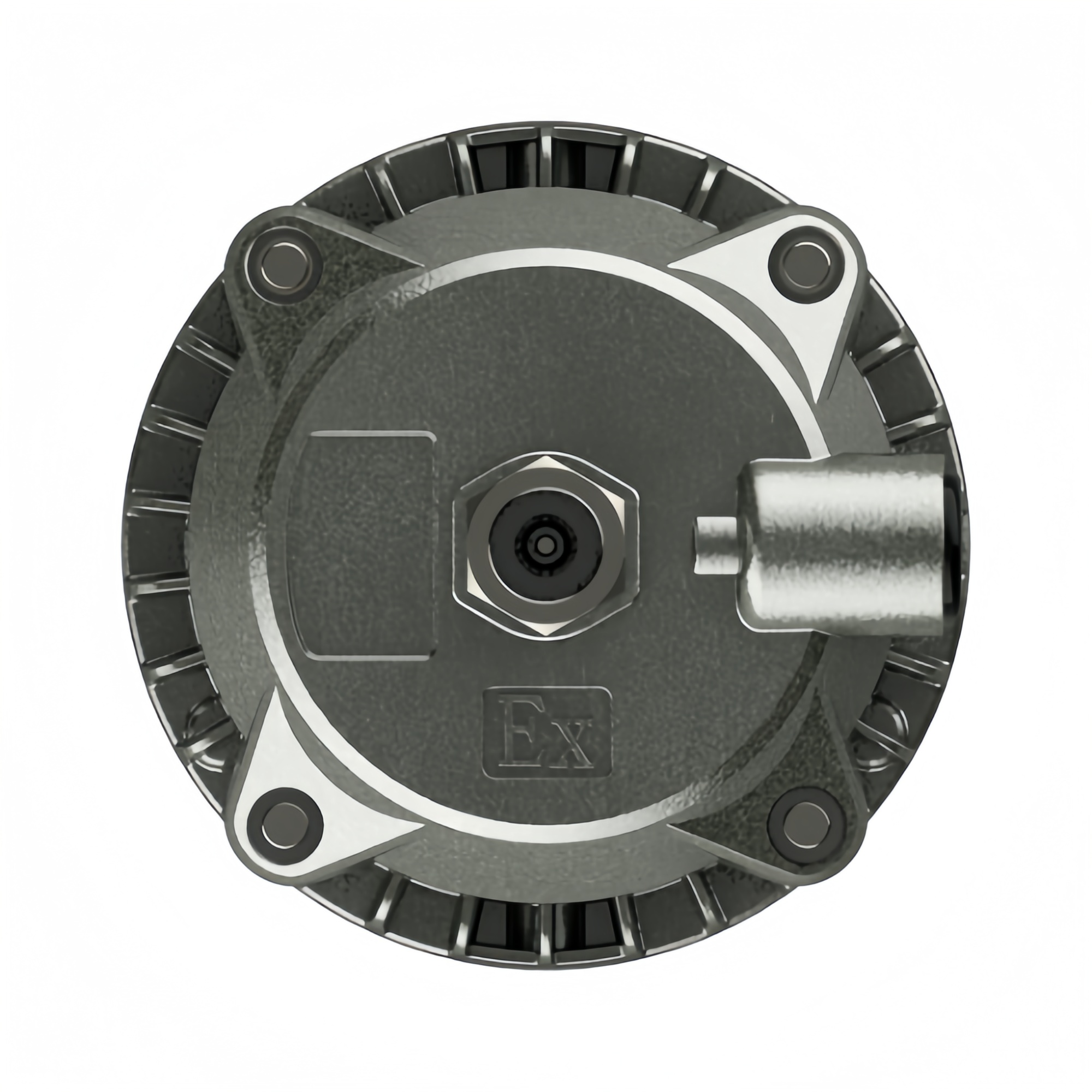

MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
img of detail_inquiryInquire Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
img of mask_layer_close
ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
MXEL 9185 ATEX Explosion proof high bay light
Product Detail

Parameter
ModelMXEL 9185
Rated VoltageAC220V
Power10-30W
Protection LevelIP66
Lighting Angle120°
LED Qty30PCS
Base specificationsCREE3030
Anti-corrosion GradeWF2
Explosion Proof GradeEx d ⅡC T6
Light Efficiency120Lm/W
Frequency50/60Hz
Power Factor＞0.95PF
Operating Temperature-30~50℃
Storage Temperature-30~50℃
Light Sourceled
Correlate Color Temperature3000-6500K
Color Rendering Index≥70RA
LED'S Operating Life100000Hours
Start-up Time≤0.2S
Inlet threadDN20
sCable length50cm
Weight1.4KG
SizeΦ145×130MM
Features

Rugged explosion proof construction makes ATEX explosion proof high bay light ideal for rough industrial environment.
• Wide and narrow optics for uniform illumination.
• Copper free aluminum.
• Surface mounting and pendant installations.
• ATEX Explosion proof high bay light is suitable for humid environments

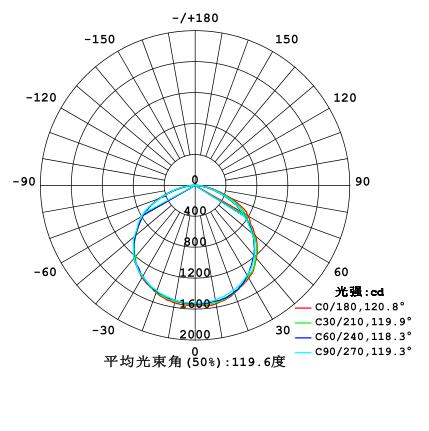

Light Distribution Diagram

Light Distribution Diagram.jpg

Light Distribution Diagram

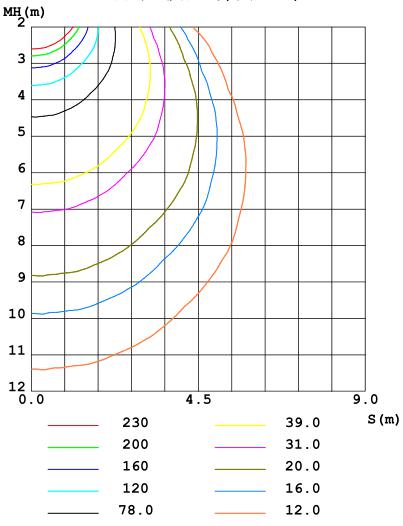

Illuminance Figure.jpg

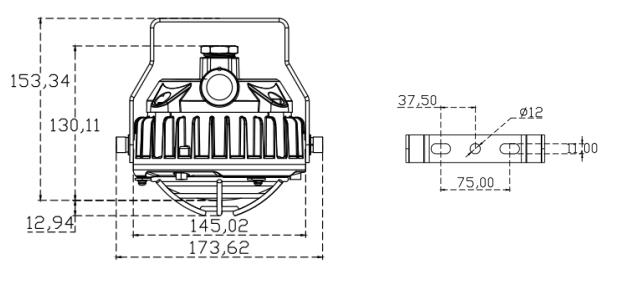

Dimension

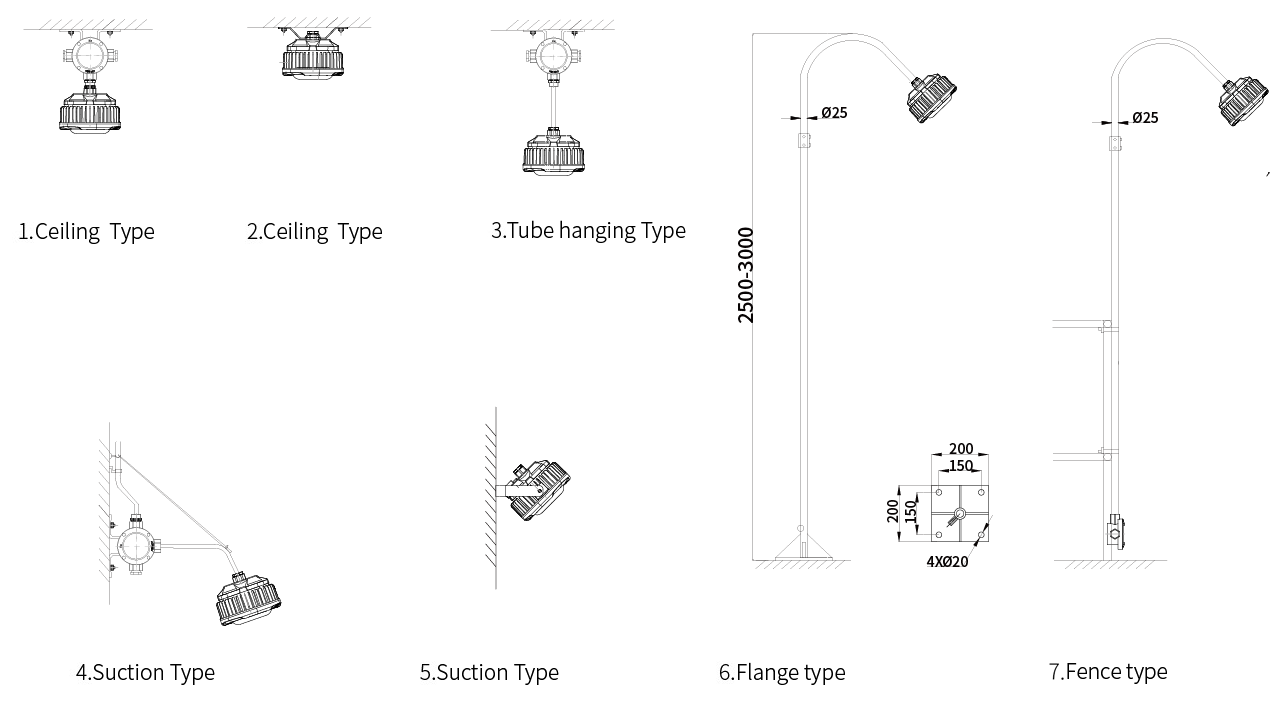

Installation
