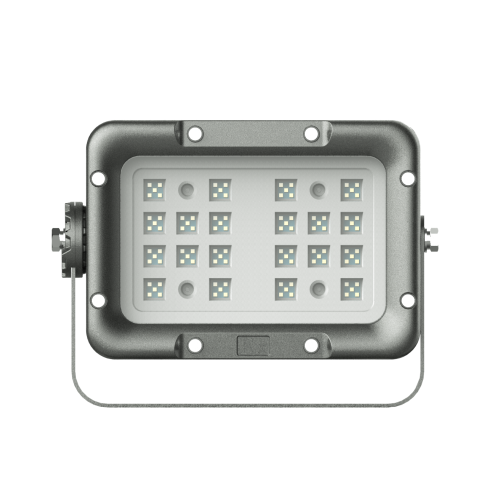

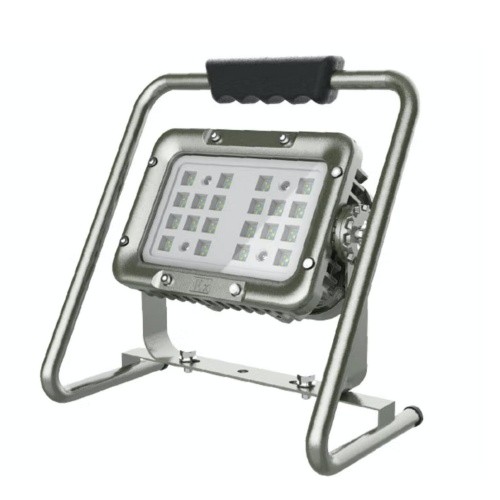

The explosion-proof square floodlight is a high-intensity lighting device specially designed for flammable and explosive environments. It can provide wide-angle uniform lighting in dangerous places while ensuring safety. It adopts an explosion-proof structure design, which can effectively prevent explosion accidents caused by sparks or high temperatures caused by electrical faults.
Product Parameters
ITEM | WATT | LUMEN | VOLTAGE | CCT |
MXEL 8189 | 50W | 6000lm | AC220V 50/60Hz | 3000K 4000K 5000K 6500K |
60W | 7200lm | |||
70W | 8400lm | |||
80W | 9600lm | |||
COMMON | Type Of Light Source: | LED | LIFESPAN: | >100,000h |
IP Grade: | IP66 | IK GRADE: | IK10 | |
CRI: | ≥70RA | Beam Angle: | 15/25/36/45/ 60/90/120 | |
Start Time: | ≤0.2s | Base Specifications: | CREE3030 | |
Anti-corrosion Level: | WF2 | Executive Standard: | GB3836.1,GB3836.2 | |
Explosion-proof Grade: | Ex d IIB T6 Gb | Light Effect: | 120LM/w | |

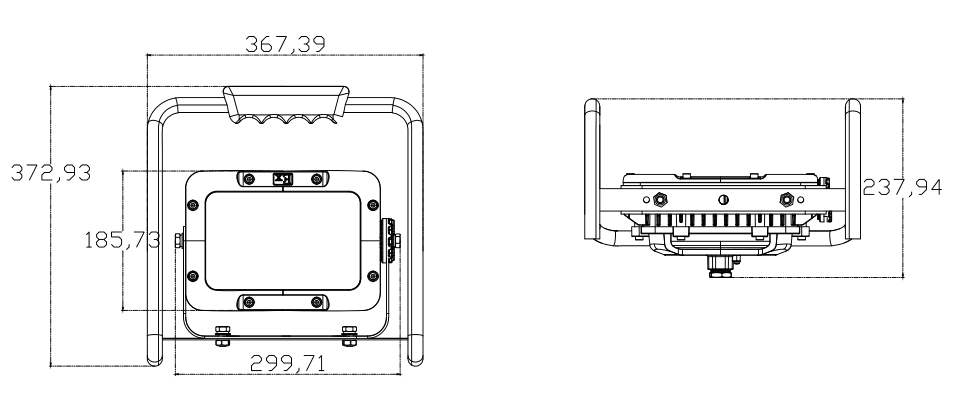

Weight: | 2.3KG | Size: | 300*186*137 mm | |
CERT | ATEX, CE,IP67, IK10 | |||
FEATURES | High Lumen, excellent CRI, accurate CCT; High brightness, no flickering; Meanwell driver assure long time life span; Easy to install with structure; Ideal replacement for conventional incandescent lamp; No mercury and other hazardous materials, fully CE compliant; | |||

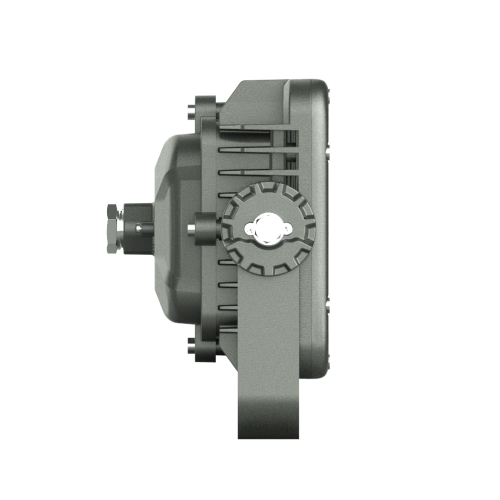

Product Details

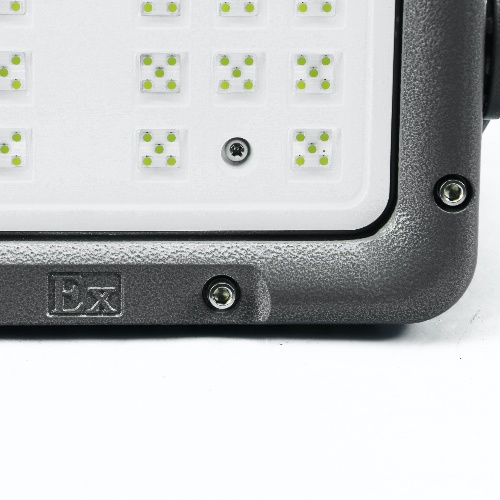

The lamp body is made of high-strength aluminum alloy die-casting, and the surface is treated with high-voltage electrostatic spraying to ensure excellent anti-corrosion performance. The exposed fasteners are made of stainless steel with high anti-corrosion performance, which makes the whole lamp have excellent corrosion resistance. The lamp is equipped with a high-strength transparent cover with high light transmittance and strong impact resistance, and adopts a unique anti-glare design. Combined with an optical reflector cup, it can effectively improve the light reflection efficiency and achieve a better lighting effect.

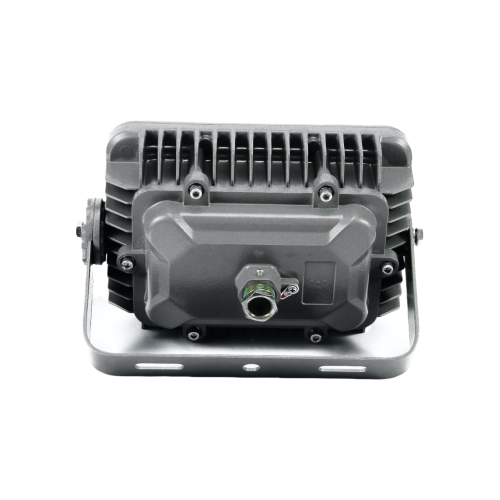

The lamp adopts an integrated streamlined structure design to effectively enhance the thermal conductivity. The explosion-proof electrical box and lamp holder adopt a split double-cavity structure, and the spacious internal space ensures the smooth installation of various large electrical components. The excellent heat dissipation design keeps the temperature of the LED chip and power supply within a reasonable range, thereby greatly improving the service life of the lamp.
The lamps are designed in strict accordance with national explosion-proof standards, with reliable explosion-proof performance and long service life. A dedicated constant current power supply is used to ensure low energy consumption and stable output power. High-quality silicone sealing rings are resistant to high temperatures and aging, effectively improving the sealing performance, giving the lamps a higher level of protection and adapting to various harsh environments.

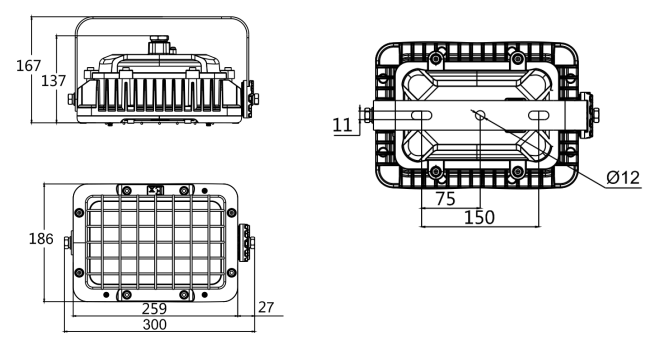

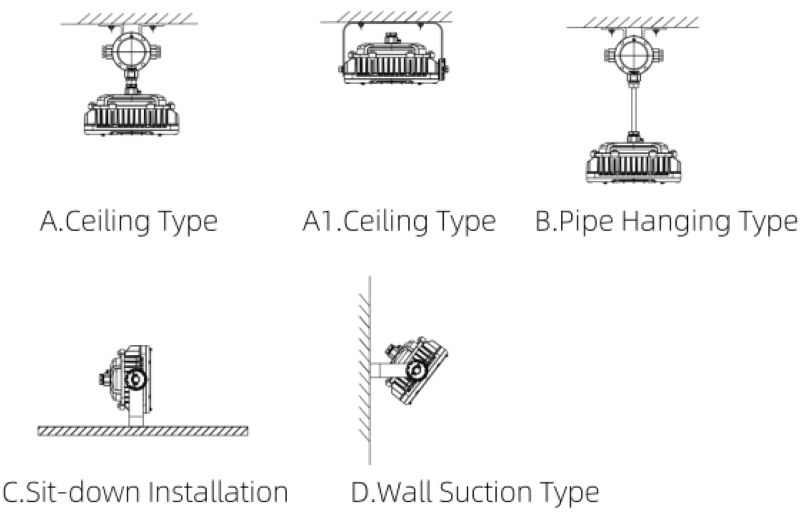

Product Install

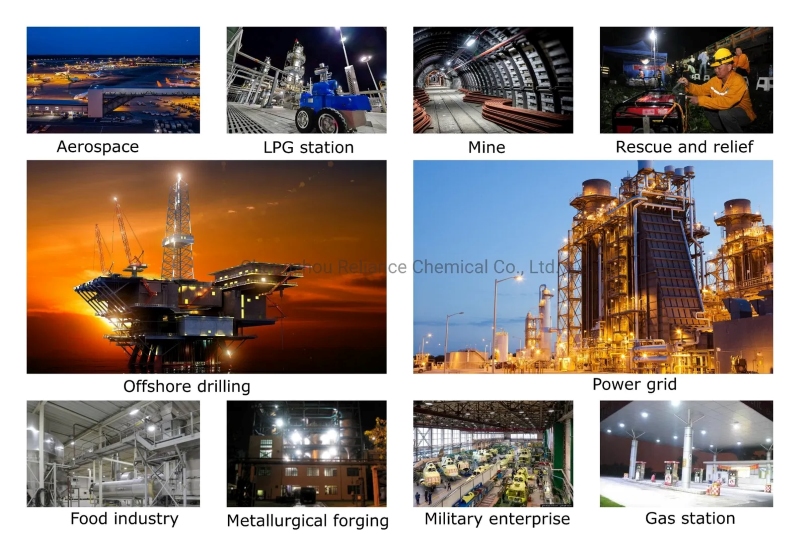

Product Applications
