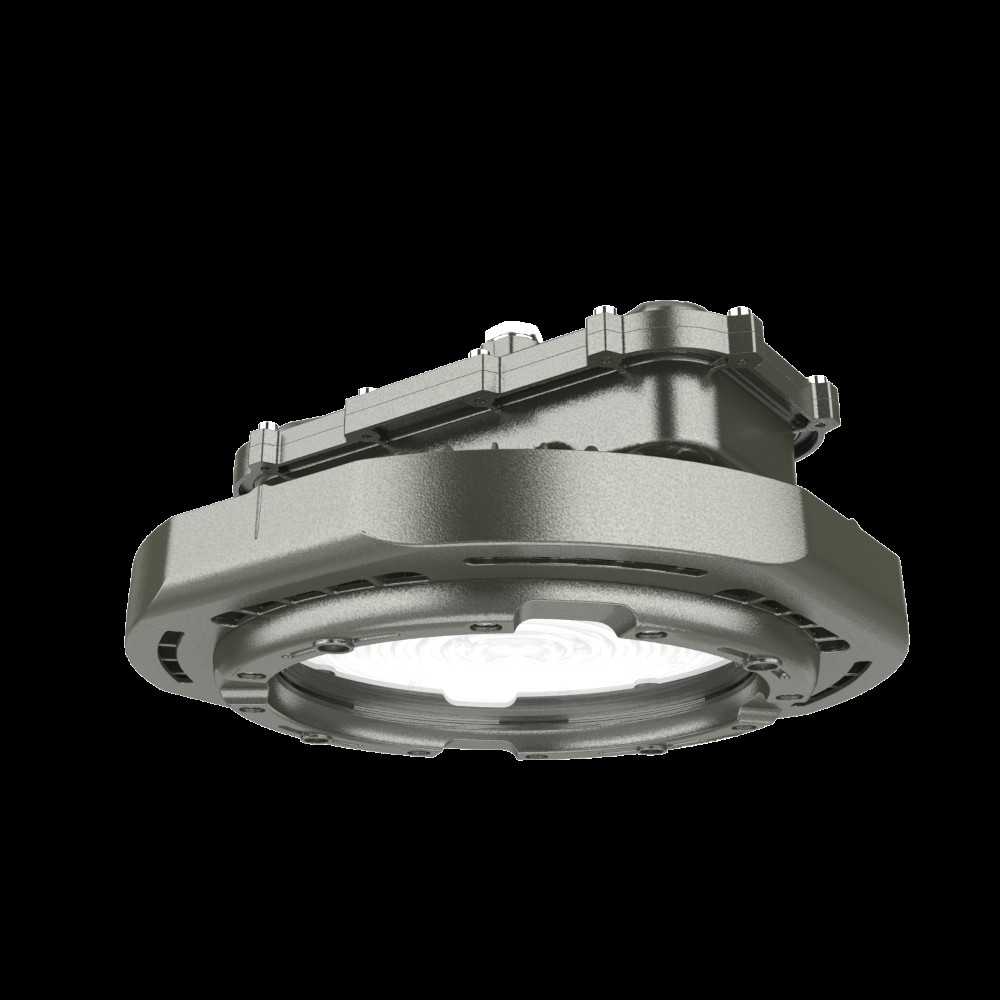

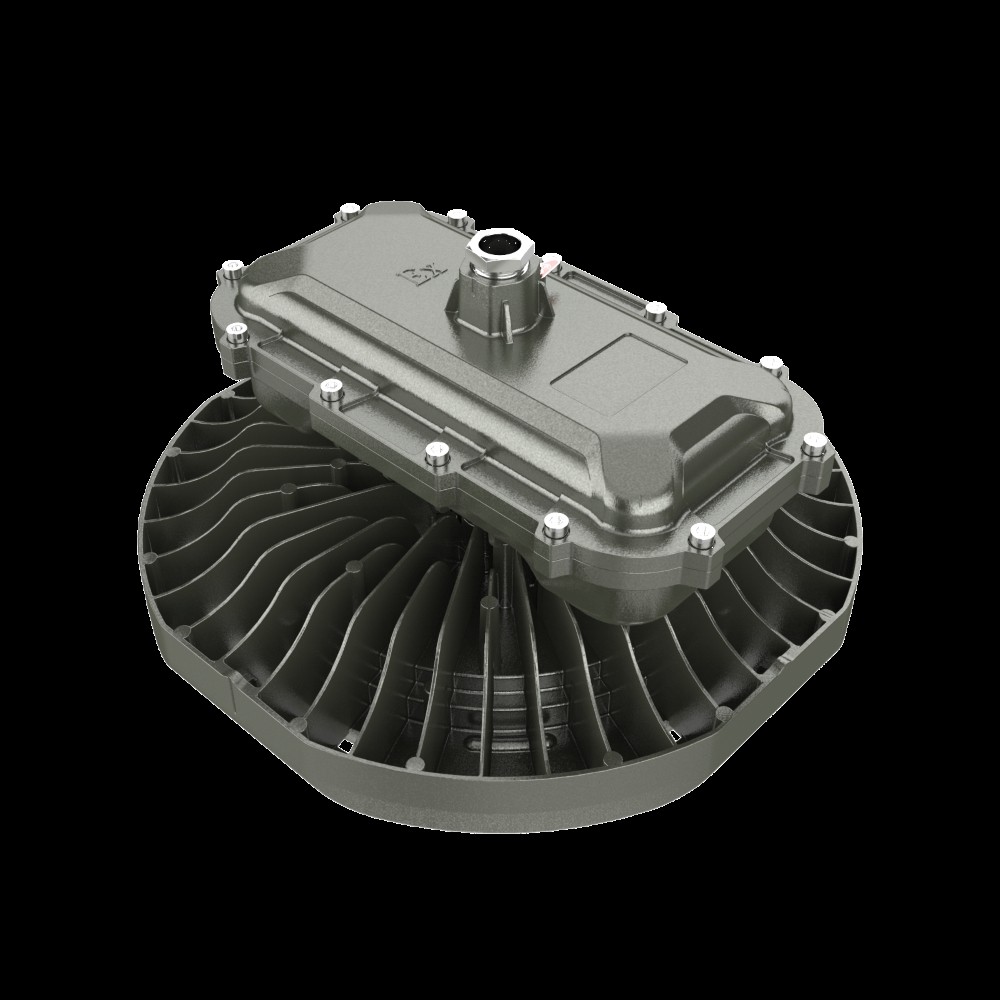

Explosion-proof square high bay light is an industrial lighting device designed for flammable and explosive environments. It adopts a square structure and has explosion-proof, waterproof, dust-proof and anti-corrosion properties. It is commonly used in dangerous places such as petroleum, chemical, electric power, mining, storage, etc. to ensure safe and efficient lighting in harsh environments.
Product Parameters
| ITEM | WATT | VOLTAGE | CCT | |
| MXEL-8236 | 150W | AC220V | 3000-6500K | |
| 200W | ||||
| COMMON | Model: | 8236 | Rated Voltage: | AC 220V 50Hz |
| Degree Of Protection: | IP66 | Anti Corrosion Grade: | WF2 | |
| Light Effect: | 120Lm/w | Power Factor: | >0.95 | |
| Working Ambient Temperature | -20~40°C | Relevant Color Temperature: | 3000-6500K | |
| Light Source Type: | LED | Lamp Beads Specifications: | CREE3030 | |
| Color Rendering Index: | ≥70RA | Light Source Life: | >100000h | |
| IK Grade: | IK10 | Warranty: | 5 Years | |
| CERT | ATEX , CE , IP66 , IK10 | |||
Product Details

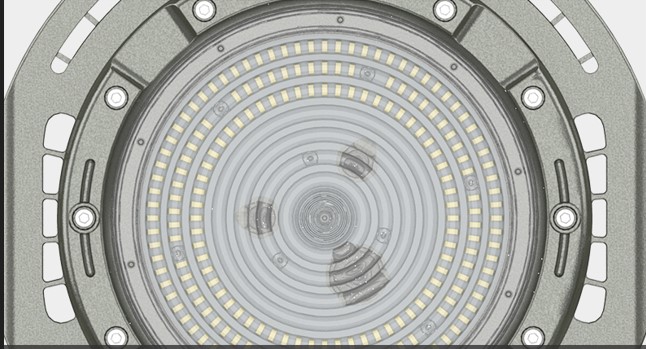

1、Tempered glass
Using 5MM thick high borosilicate tempered glass, impact-resistant, light transmittance up to 95%~98%; the inner wall is prism-treated to prevent glare;

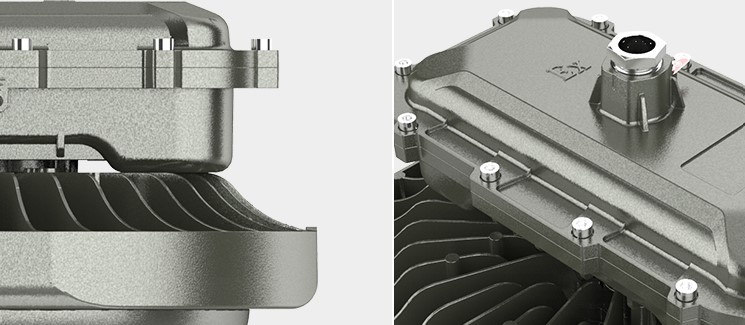

2、Anti-vibration and anti-falling
The mounting bracket adopts an anti-vibration structure, which is safe and stable, anti-vibration and anti-falling; the outlet has a locking structure to effectively prevent the tightening screws of the lamp from loosening in a vibrating environment;

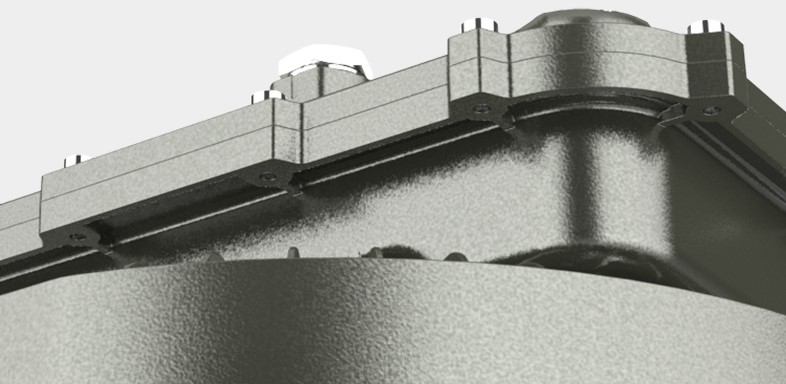

3、Surface treatment
The lamp body is pickled and shot blasted, then treated with high-voltage electrostatic spraying. The fasteners are made of stainless steel, and the anti-corrosion grade of the whole lamp can reach WF2;

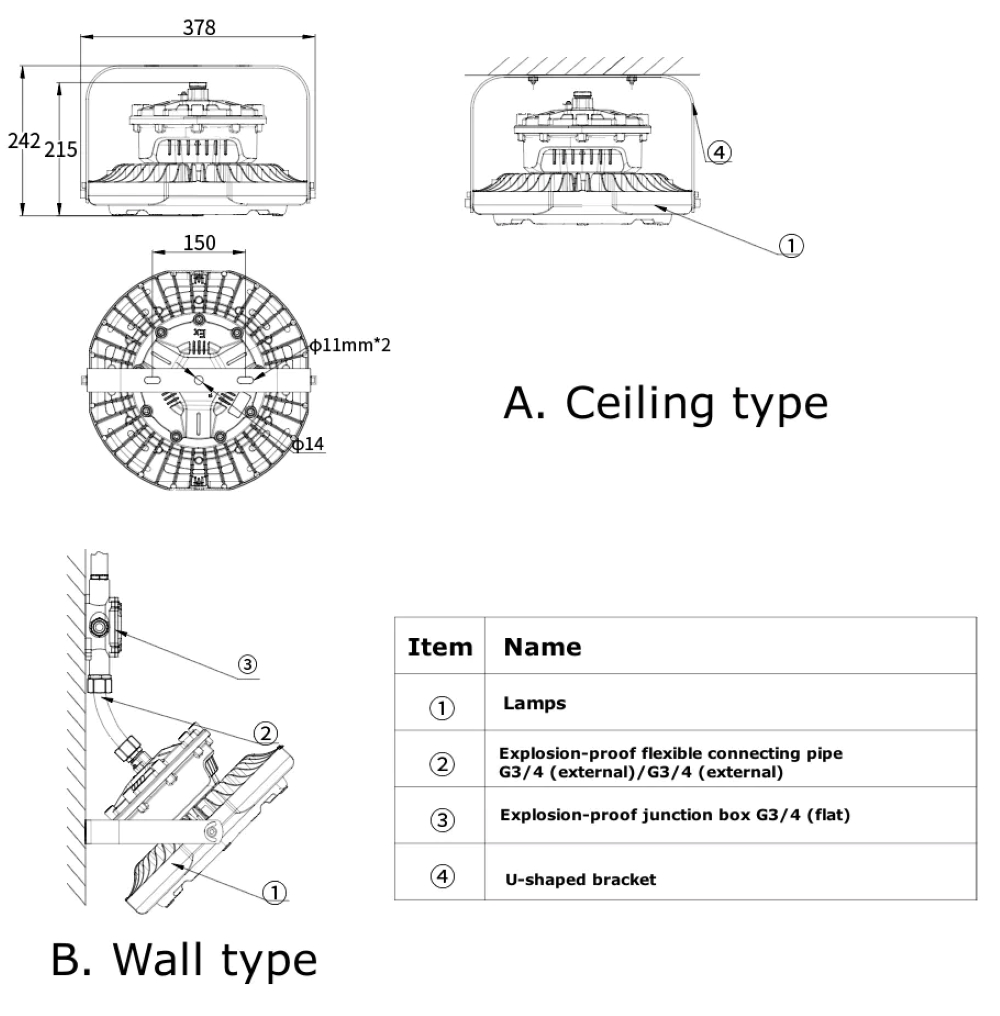

Product Installation

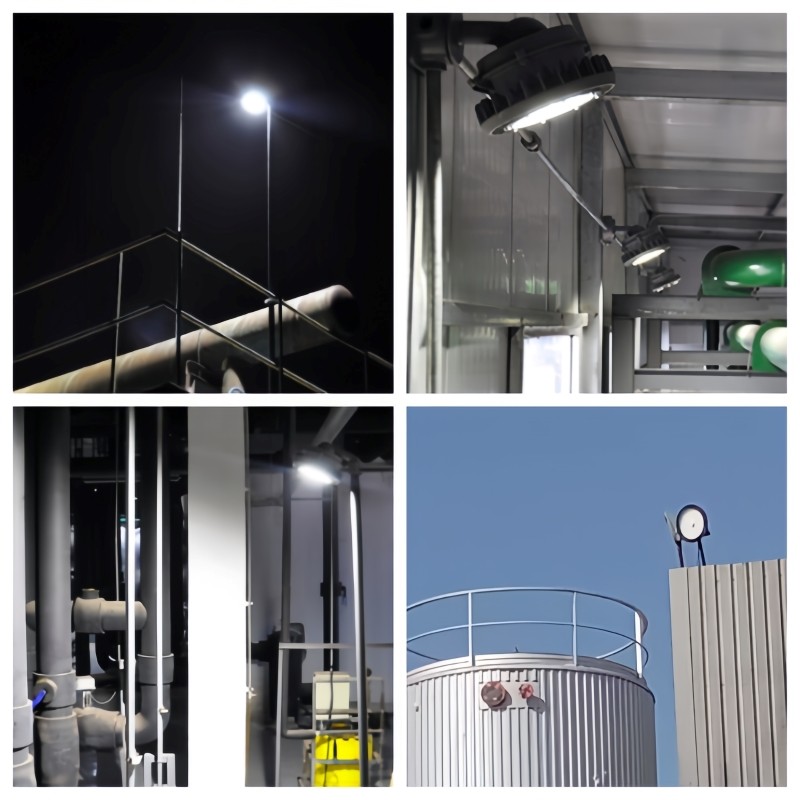

Product Applications
