ATEX Two-headed Rechargeable Emergency Light

This ATEX emergency light has good explosion-proof function and is suitable for explosives of IIA, IIB and IIC include gas environment and various inflflammable and explosive places. It's mainly used in railway, elec-tric power,metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and various types of factories, stations,large facilities, venues and other places.LAMPSUITE supplies explosion proof emergency lights, which are suitable for used as atex lights zone 1. With explosion-proof ratings of IIA/IIB/IIC and an IP66 protection level, the lithium battery can provide a battery life of ≥ 120 minutes. These lights are widely used in industries such as petroleum, chemical engineering, and power, and comply with the GB3836 standard.

atex lights zone 1
atex lights zone 1
atex lights zone 1
explosion proof emergency light
ATEX Two-headed explosion proof emergency light
ATEX Two-headed explosion proof emergency light
img of detail_inquiryInquire Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
img of mask_layer_close
atex lights zone 1
atex lights zone 1
atex lights zone 1
explosion proof emergency light
ATEX Two-headed explosion proof emergency light
ATEX Two-headed explosion proof emergency light
Product Detail

Product Description

ITEM
WATT
LUMEN
VOLTAGE
CCT
MXEL-8190
2W
240lm
100-277V AC 50/60Hz
DC 24V
3000-6500K
2*3W
720lm











COMMON
MODEL：
8190
EFFICIENCY:
120Lm/W
INPUT VOLTAGE:
AC 220V 50/60Hz
BEAM ANGLE:
38°
LED Qty：
2*1PCS
Base Specifications：
CREE3030
Corrosion Resistance Grade：
WF2
Explosion Proof Grade：
Ex d IIB T6
Power Factor：
＞0.95
WORK TEMP:
-20~40℃
Light Source：
LED
Storage Temperature：
-20~40℃
CRI:
≥70RA
LIFESPAN:
＞100000h
Start Time：
≤0.2s
Executive Standard：
GB3836.1、GB3836.2
Emergency Time：
≥120min，180min
Battery Specification：
Lithium Battery
IP Grade：
IP66
Ambient Temperature：
-40℃~ +55℃
-40°F ~ +131°F
IK GRADE:
IK10
Mounting Type：
Bracket，Wall
Weight：
2.5KG

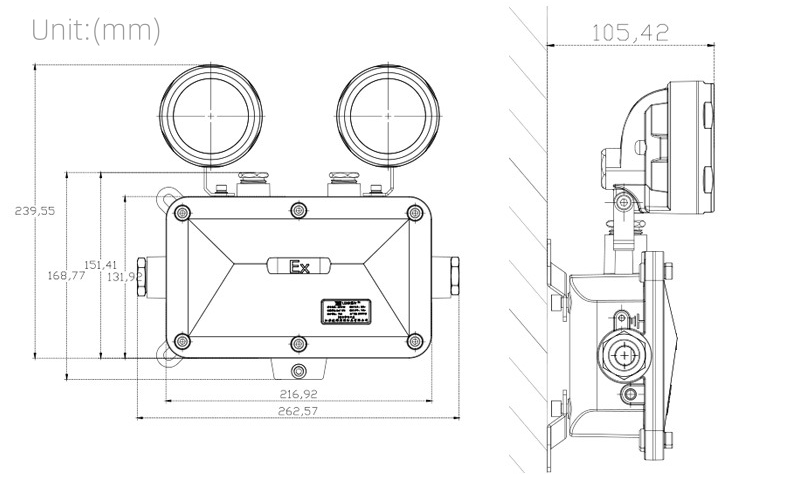

SIze：
230x260x85mm

Product Details

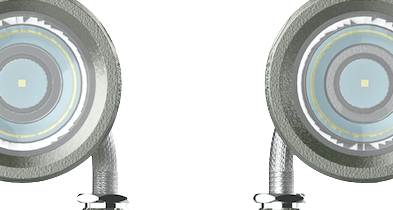

Tempered glass

Using 5MM thick high borosilicate tempered glass, impact-resistant, light transmittance up to 95%~98%; the inner wall is prism-treated to prevent glare.

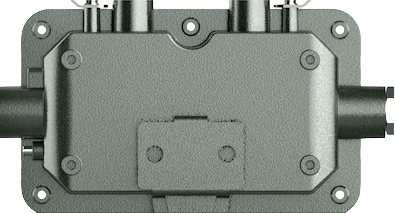

Surface treatment

The lamp body is pickled and shot blasted, then treated with high-voltage electrostatic spraying. The fasteners are made of stainless steel, and the anti-corrosion grade of the entire lamp can reach WF2.









Anti-vibration and anti-falling

The mounting bracket adopts an anti-vibration structure, which is safe and stable, anti-vibration and anti-falling; the outlet adds a locking structure to effectively prevent the tightening screws of the lamp from loosening in a vibrating environment.

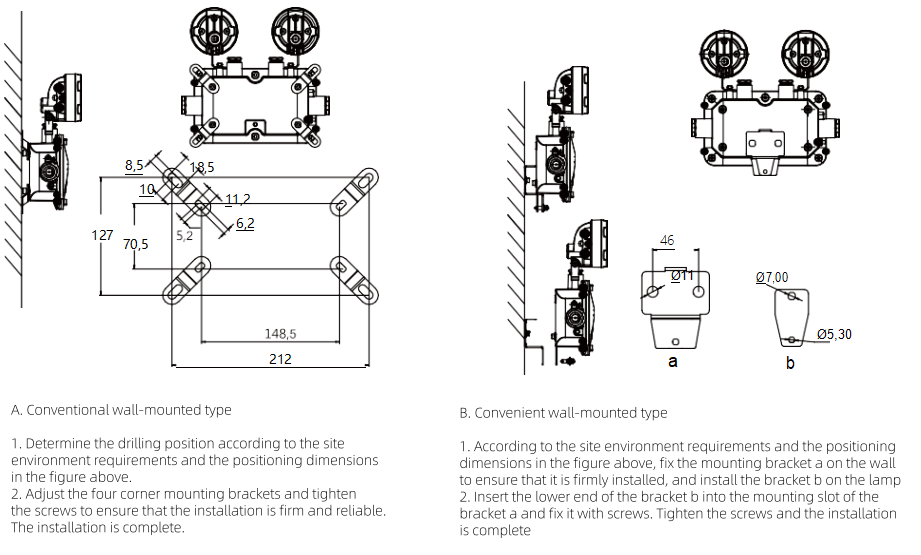

Product Installation



Product Applications

  • Applicable to Zone 1 and Zone 2 places in explosive gas environment;

  • Applicable to IIA, IIB, IIC, explosive gas environment;

  • Suitable for flammable dust environment 21, 22 places;

  • Applicable to T1-T6 (T5) group temperature group;

  • Applicable to energy-saving renovation projects and places where maintenance and replacement are difficult;

  • Suitable for places with high protection requirements, humid and harsh environments;

  • Suitable for places with high anti-corrosion requirements, corrosion and harsh environments;


Packing
