Core Function: Emergency lighting for hazardous areas with ≥180min continuous illumination
Explosion Cert: ATEX, Ex d IIB T6 compliant
Protection Grade: IP66 (waterproof/dustproof) + IK10 impact resistance

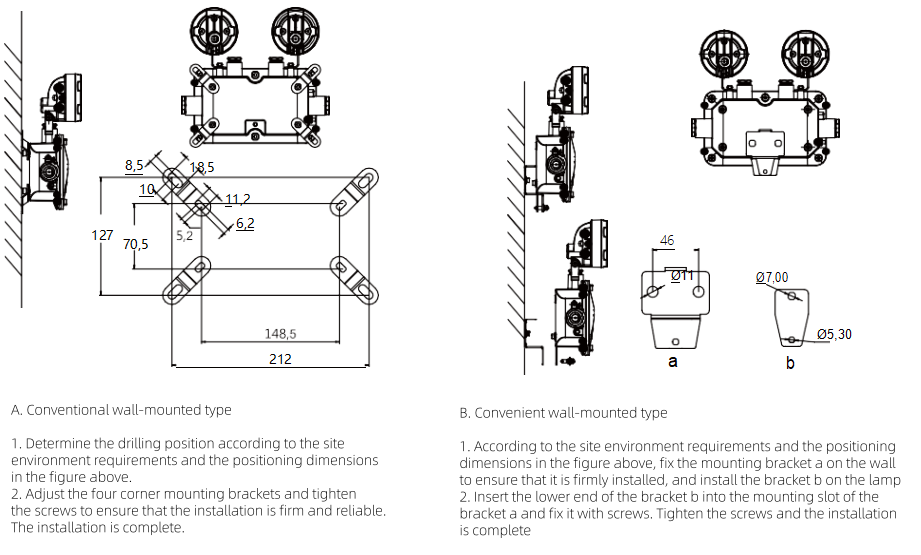

Installation: Bracket/wall mounting, cable wiring for quick setup
Scenarios: Petroleum, petrochemical, mining, gas stations, factories
LAMPSUITE’s LED Explosion proof Emergency Light is a double-headed lighting solution tailored for hazardous environments, boasting explosion-proof, waterproof, and shock-resistant properties—ideal for flammable and explosive sites like petroleum, chemical plants, and mining areas. As a professional LED Explosion proof Emergency Light, it holds ATEX, CE, and ISO 9001 certifications, features an IP66 protection rating (waterproof/dustproof) and IK10 impact resistance, and delivers up to 180 minutes of continuous emergency illumination, perfectly meeting hazardous area lighting demands in petrochemical and related industries. Customizable intelligent systems (DALI, DMX, 0-10V) are also available to suit specific needs.
| ITEM | WATT | LUMEN | VOLTAGE | CCT |
| MXEL-8190 | 2W | 240lm | AC220V/AC110V/DC24V/DC12V | 3000-6500K |
| 2*3W | 720lm | |||
| COMMON | MODEL： | 8190 | EFFICIENCY: | 120Lm/W |
| INPUT VOLTAGE: | AC 220V 50/60Hz | BEAM ANGLE: | 38° | |
| LED Qty： | 2*1PCS | Base Specifications： | CREE3030 | |
| Corrosion Resistance Grade： | WF2 | Explosion Proof Grade： | Ex d IIB T6 | |
| Power Factor： | ＞0.95 | WORK TEMP: | -20~40℃ | |
| Light Source： | LED | Storage Temperature： | -20~40℃ | |
| CRI: | ≥70RA | LIFESPAN: | ＞100000h | |
| Start Time： | ≤0.2s | Executive Standard： | GB3836.1、GB3836.2 | |
| Emergency Time： | ≥120min，180min | Battery Specification： | Lithium Battery | |
| IP Grade： | IP66 | Ambient Temperature： | -40℃~ +55℃ -40°F ~ +131°F | |
| IK GRADE: | IK10 | Mounting Type： | Bracket，Wall | |

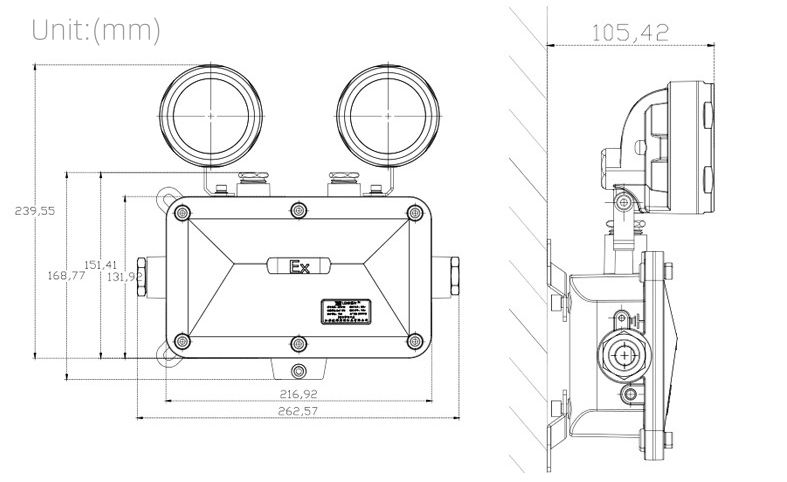

| Weight： | 2.5KG | Size： | 230x260x85mm | |
| OTHERS | Customizable pattern，Digital Smart System(DALI, DMX,0-10V) | |||
| CERT | ATEX, CE,IP67, IK10，ROHS,ISO9001 | |||

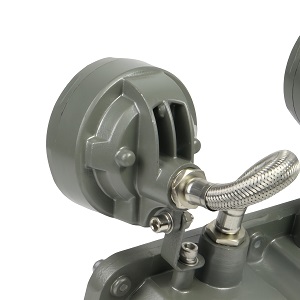

| FEATURES | ●The lamp body is made of aluminium alloy by die casting. The surface of the lamp is sprayed with high voltage electrostatic.The exposed fasteners are stainless steel with high corrosion resistance, and the overall anti-corrosion performance is excellent. ●Adopting high-intensity transparent shield, high-transparency, impact-resistant, unique anti-glare design, with unique optical reflector, it has the characteristics of high light efficiency and low light decay. ●The explosion-proof structure designed in accordance with the national standard GB3836 document has reliable explosion-proof performance, long life, special constant current power supply, low power consumption and constant output power. It adopts high temperature and aging resistant silica gel sealing ring with high protection grade. ●Adopt the international first-line brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up. ●Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps. ●Cable wiring, fast and convenient. | |||
| APPL | ●Railway ●Electric Power ●Metallurgy ●Petroleum ●Petrochemical ●Chemical ●Food and Beverage Processing ●Factories ●Oil And Gas Stations ●Large Facilities ●Venues etc. | |||
