Description

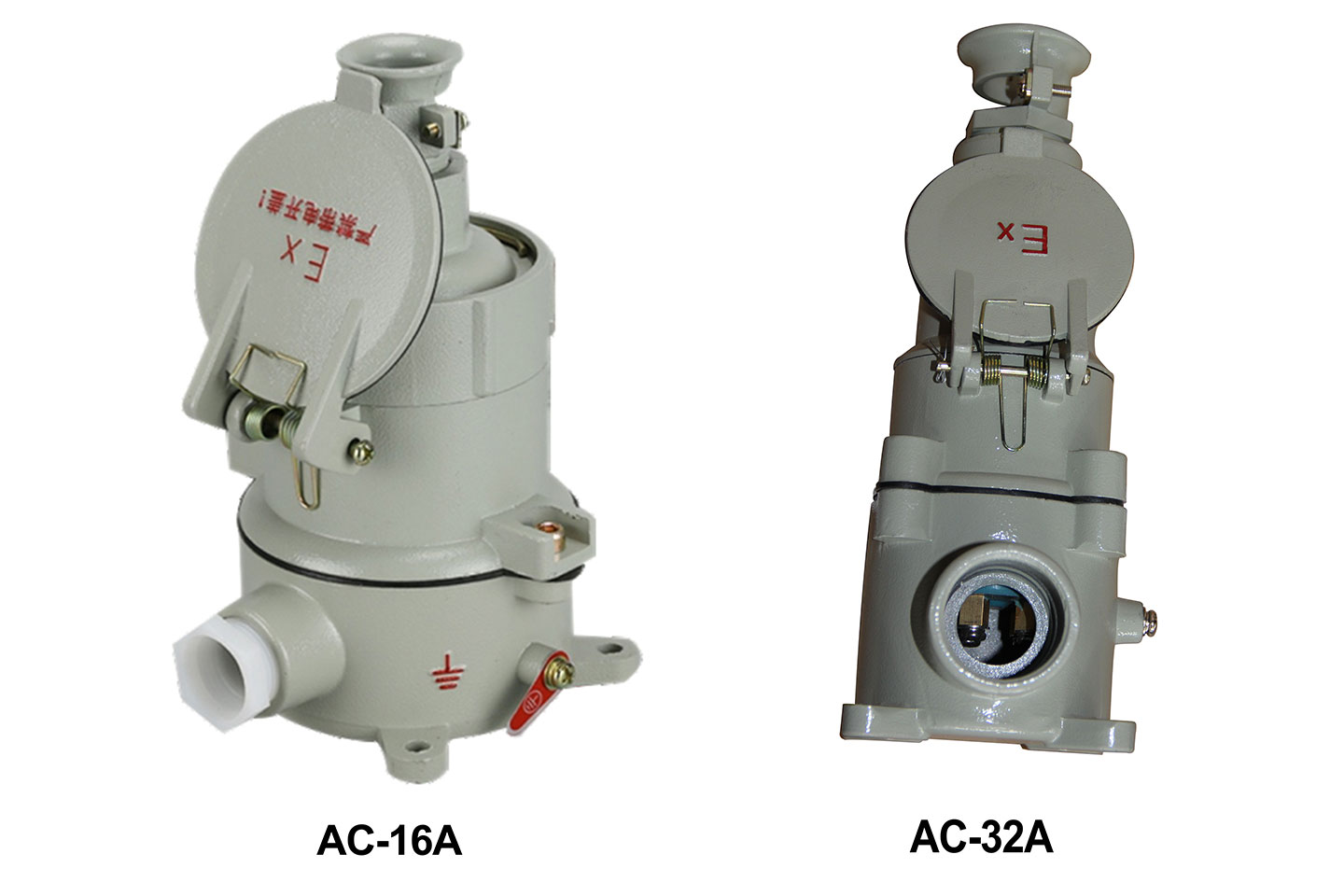

| Models | AC-16A | AC-32A | AC-63A |
| Entries | M25*1.5 (suitable for | M40*1.5 (suitable for | M40*1.5 (suitable for |
| Φ8mm-Φ17mm cable) | Φ13mm-Φ27mm cable) | Φ13mm-Φ27mm cable) |
| Rated Current [A] | 16 | 32 | 63 |
| The cable for plug | Φ8mm-Φ19mm | Φ12mm-Φ28mm | Φ12mm-Φ28mm |
| Inlet threads | G 3/4" | G 1 1/4" | / |
| Nos. of pole | 1P+N+PE, 3P+N+PE |
| Ex rate | Ex d e IIC T6 Gb |
| Rated voltage | AC380V, AC220V |
| Degree of protection | IP65 |
| Application | Zone 1&2, Zone 21&22 |
Features
1. Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The explosion-proof plug has built-in interlocking mechanism. Only when the switch in the socket breaks, the explosion-proof plug can be pulled out.
4. Steel pipe or cable wiring is acceptable
Applications
1. Suitable for ambient temperature:-20℃ ~ +40℃;
2. Suitable for dangerous places of explosive gas mixture: 1 zone and 2 zone;
3. Suitable for combustible dust places: 21 and 22 districts
4. Suitable for dangerous environment such as petroleum exploitation, refining, chemical industry, military industry, offshore oil platform, oil tanker, metal processing, etc;
