Having properly designed Zone 1 area explosion proof fluorescent light fixtures within hazardous locations is of the utmost importance. This is important because without adequate lighting, the overall safety of workers is at risk.
0Having properly designed Zone 1 area explosion proof fluorescent light fixtures within hazardous locations is of the utmost importance. This is important because without adequate lighting, the overall safety of workers is at risk.
| Item | Description | |
| Model | MXEL 8197 | |
| Rated Voltage | AC220V | |
| Power | 1*18/1*36W | |
| Protection Level | IP66 | |
| Lighting Angle | 360° | |
| Base Specifications | CREE3030 | |
| Light Source Specifications | T8 Fluorescent tube | T8 led tube |
| Anti-corrosion Grade | WF2 | |
| Explosion Proof Grade | Ex dⅡB T6 Gb | |
| Light Efficiency | >90Lm/W | >120Lm/W |
| Frequency | 50/60Hz | |
| Power Factor | >0.95PF | |
| Operating Temperature | -30~50°C | |
| Correlate Color Temperature | 3000-6500K | |
| Color Rendering Index | ≥70RA | |
| LED'S Operating Life | 50000Hours | |
| Start-up Time | ≤0.2S | |
| Weight | 2.8Kg | |

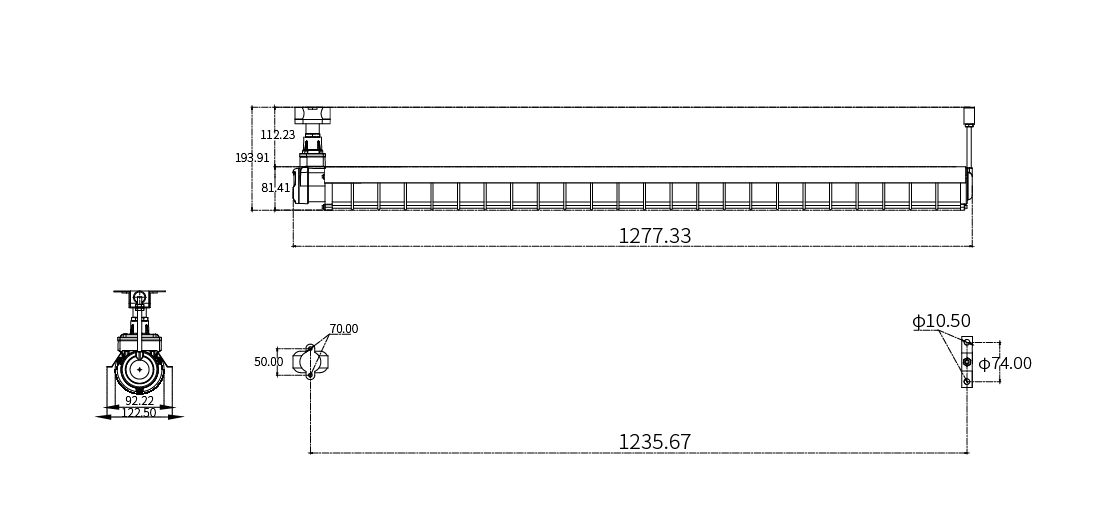

| Size | 1280*202*146MM | |
| Executive Standard | GB3836.1、GB3836.2 | |
Having properly designed Zone 1 area explosion proof fluorescent light fixtures within hazardous locations is of the utmost importance. This is important because without adequate lighting, the overall safety of workers is at risk.
The safety of workers is of particular concern in heavy industrial areas where stray sparks can set off a buildup of flammable gasses and materials and ultimately cause an improperly designed fixture to explode. As a result, we carry specialized Zone 1 area explosion proof fluorescent light for hazardous areas to protect workers and ensure proper illumination.
