Explosion-proof square high bay light is an industrial lighting device designed for flammable and explosive environments. It adopts a square structure and has explosion-proof, waterproof and anti-corrosion properties. It is suitable for dangerous places such as petroleum, chemical, electric power, mining and storage, and can provide safe and reliable lighting in harsh environments.
Product Description
| ITEM | WATT | VOLTAGE | CCT | |
| MXEL-8236 | 150W | AC220V | 3000-6500K | |
| 200W | ||||
| COMMON | Model: | 8236 | Rated Voltage: | AC 220V 50Hz |
| Degree Of Protection: | IP66 | Anti Corrosion Grade: | WF2 | |
| Light Effect: | 120Lm/w | Power Factor: | >0.95 | |
| Working Ambient Temperature | -20~40°C | Relevant Color Temperature: | 3000-6500K | |
| Light Source Type: | LED | Lamp Beads Specifications: | CREE3030 | |
| Color Rendering Index: | ≥70RA | Light Source Life: | >100000h | |
| IK Grade: | IK10 | Warranty: | 5 Years | |
| CERT | ATEX , CE , IP66 , IK10 | |||
| FEATURES | 1. Product configuration: The light source adopts (CREE) brand LED light-emitting chip, with ultra-high light efficiency and an average service life of up to 100,000 hours. It is driven by a first-line brand power supply and processed with wide voltage technology. The quality is guaranteed, with constant current output, short circuit, overvoltage protection and other characteristics. 2. Heat dissipation design: The light source radiator adopts one-piece die-casting, with a tight structure, excellent thermal conductivity and heat dissipation performance, and effectively controls the temperature rise of the lamp within a reasonable range, thereby ensuring the service life of the lamp. 3. Protective lampshade: It adopts high borosilicate tempered glass, which is corrosion-resistant, impact-resistant, high light transmittance, uniform and soft light, and anti-glare. 4. Protection and anti-corrosion: The lamp body adopts high-voltage electrostatic spraying treatment, and the screw fasteners are made of stainless steel. With high-precision processing technology, it has the characteristics of high corrosion resistance, high waterproofness, and high dustproofness. 5. Easy installation: It can be installed in various ways such as ceiling and hanging rod according to the needs, which can meet the use of fixed lighting in various places such as low ceiling, platform, high ceiling and high shed. The independent human-machine wiring cavity design can quickly realize the series and parallel connection requirements of lamps, making installation and wiring more convenient. 6. Product appearance: The appearance continues to use industrial elements and perfectly integrates the structure. The design is exquisite, with clear edges and corners. It uses a special gray color scheme, which is suitable for matching various factory environments. | |||
| APPL | 1. Suitable for efficient lighting in railways, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ships and various factories, stations, large facilities, venues and other places. 2. Suitable for places in Zone 1 and Zone 2 of explosive gas environment; 3. Suitable for explosive gas environment of IIA, IIB, IIC; 4. Suitable for places in Zone 21 and Zone 22 of combustible dust environment; 5. Suitable for temperature groups of T1-T6 (T5); 6. Suitable for energy-saving renovation projects and places with difficult maintenance and replacement; 7. Suitable for places with high protection requirements, humid and harsh environment; 8. Suitable for places with high anti-corrosion requirements, corrosion and harsh environment; | |||
Product Details

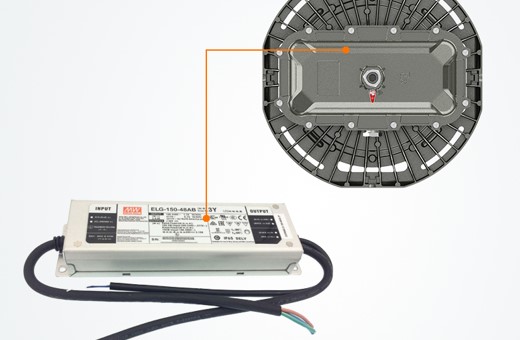

1、Brand driven, more stable
Use well-known brand power supply (optional: Mean Well, Moso, DONE, OSRAM, Inventec, etc.), quality guaranteed, all enjoy three-guarantee service; the power supply adopts wide voltage technology, with constant current output, lightning protection, surge protection, short circuit, overvoltage protection, etc., power factor up to 0.99, more stable quality

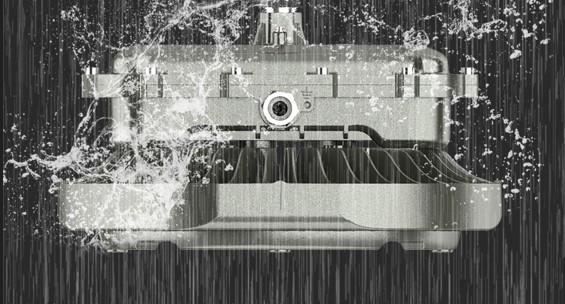

2、Waterproof, dustproof, anti-corrosion
The special silicone sealing ring is used, which has the characteristics of anti-aging, high and low temperature resistance, strong sealing, etc.; with high-precision machining technology, the product protection level can reach IP66; the surface of the lamp body is treated with high-voltage electrostatic spraying, and the screw fasteners are made of stainless steel, which has the characteristics of high corrosion resistance and high rust resistance, especially suitable for working in various harsh environments of strong acid and strong alkali.

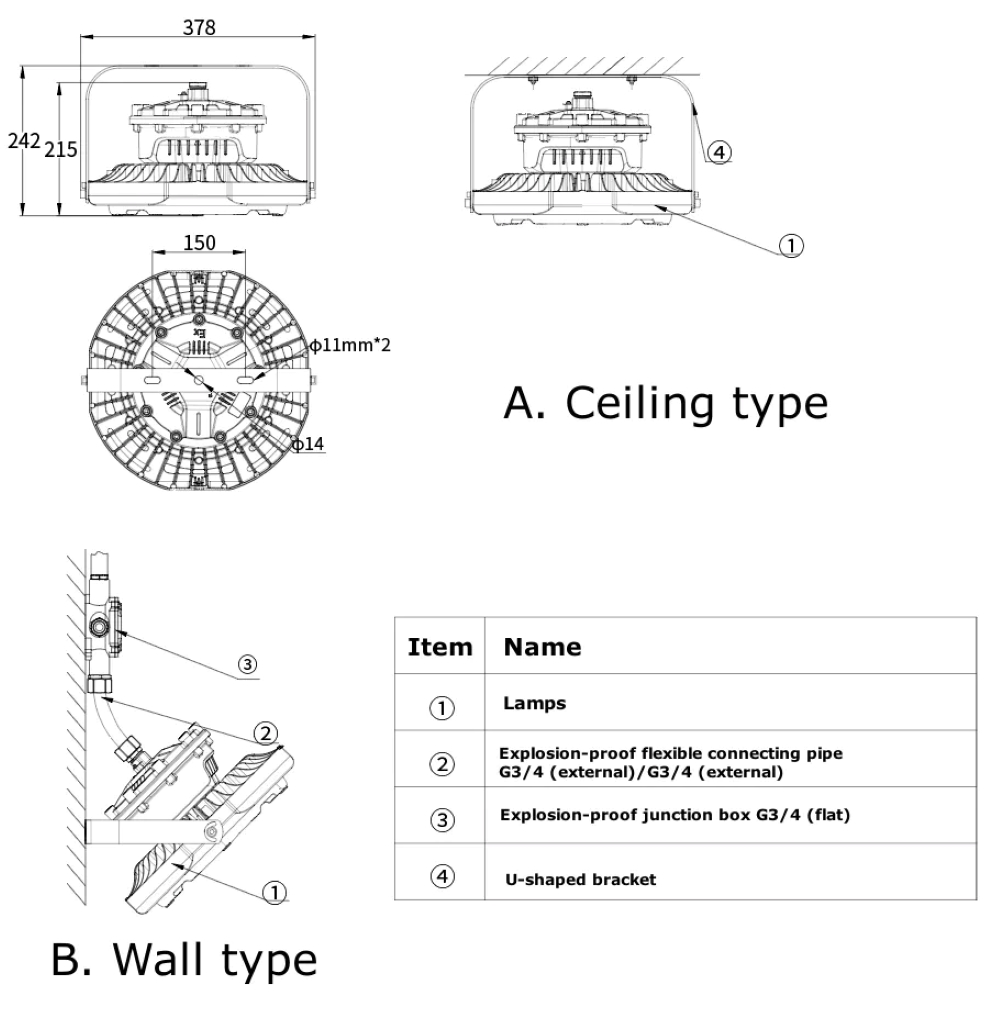

Product Installation

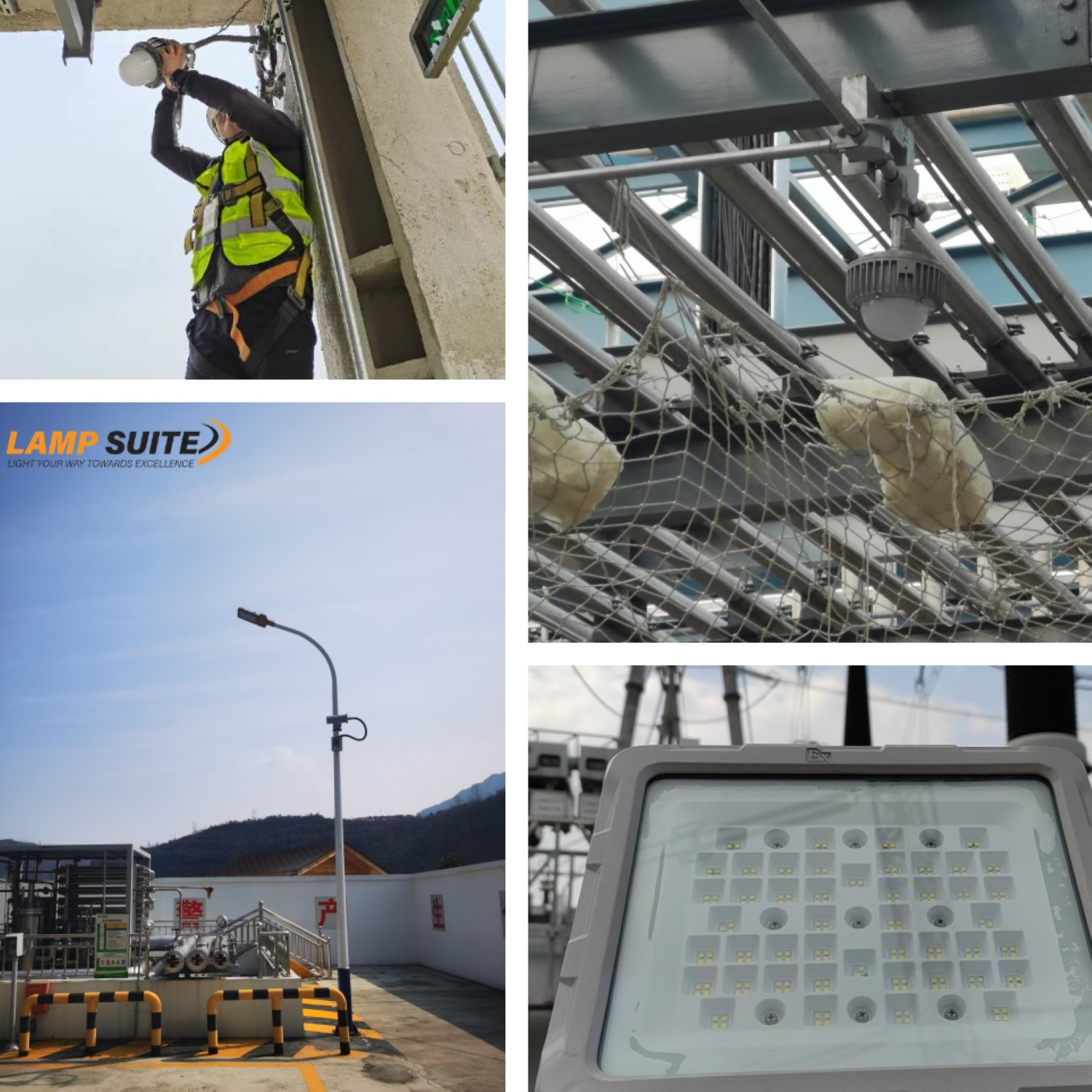

Product Applications
