Product Parameters
| | | | |
| | | AC220V/AC110V/DC24V/DC12V
| |
| |
| |
| RATED POWER: | 3W | EFFICIENCY: | 120Lm/W |
CABLE SPECIFICATION: | Φ5mm-Φ8mm | LED QTY： | 6PCS |
ANTI-CORROSION GRADE： | WF2 | EXPLOSION PROOF GRADE： | ExdIIBT6Gb |
POWER FACTOR： | ＞0.95 | OPERATING TEMPERATURE: | -20~40℃ |
LIGHT SOURCE: | LED | STORAGE TEMPERATURE： | -20~40℃ |
CRI: | ≥70RA | LIFESPAN: | ＞100000h |
START-UP TIME: | ≤0.2s | EXECUTIVE STANDARD： | |
EMERGENCY TIME: | ≥120min | BATTERY SPECIFICATION： | Lithium Battery |
IP GRADE： | IP66 | FEED THREAD: | G3/4" |
IK GRADE: | IK10 | INSTALLATION: | Bracket, Wall, Ceiling, Embedded Type |

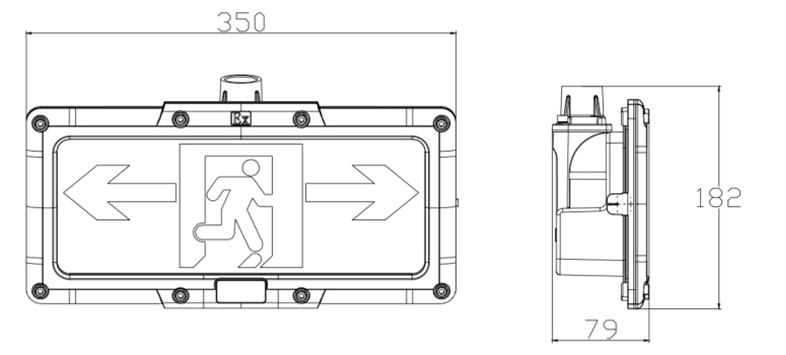

WEIGHT： | 2.8KG | SIZE： | 350*193*79mm |
| Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, shell color etc.Digital Smart System(DALl, DMX,0-10V) |
| ATEX, CE,IP67, IK10，ROHS,ISO9001 |

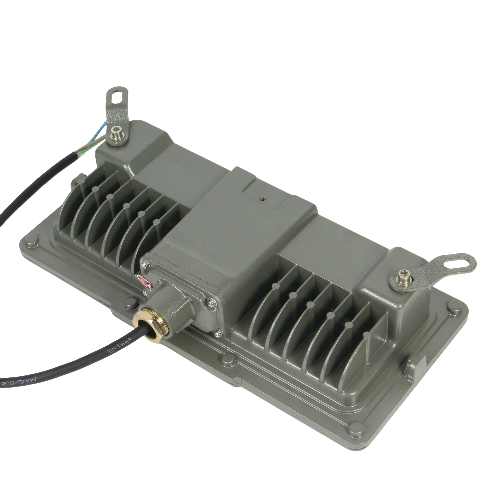

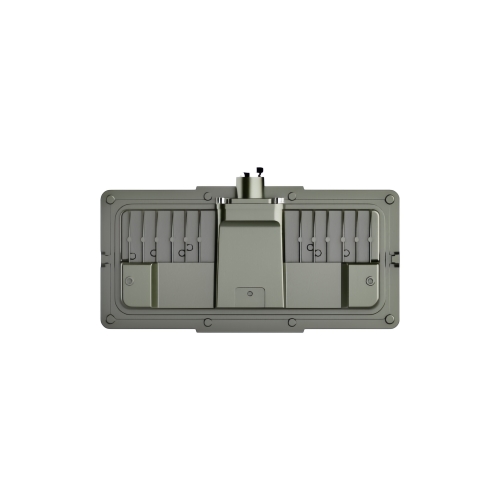

Product Details
Surface Treatment
The lamp body undergoes acid washing and shot blasting, followed by high-pressure electrostatic spraying. Fasteners are made of stainless steel, achieving a corrosion resistance rating of WF2 for the entire lamp.
Built-in battery
The built-in battery of the explosion-proof emergency exit indicator light is mainly used to provide continuous power in the event of a sudden power outage or emergency, ensuring that the indicator light can work normally and guide people to evacuate safely. Since this indicator light is usually used in flammable and explosive environments, such as chemical plants, oil platforms and mines, the stability of the battery is crucial. High-quality built-in batteries can automatically switch to emergency mode after a power outage and provide lighting time long enough to meet the needs of safe evacuation. In addition, the battery usually has explosion-proof, overcharge and over-discharge protection functions to ensure long-term stable operation in harsh environments and improve overall safety.

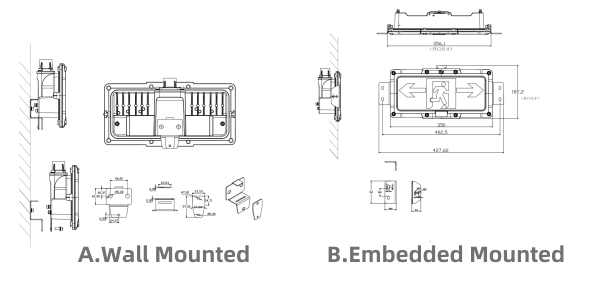

Product Installation
Product Applications

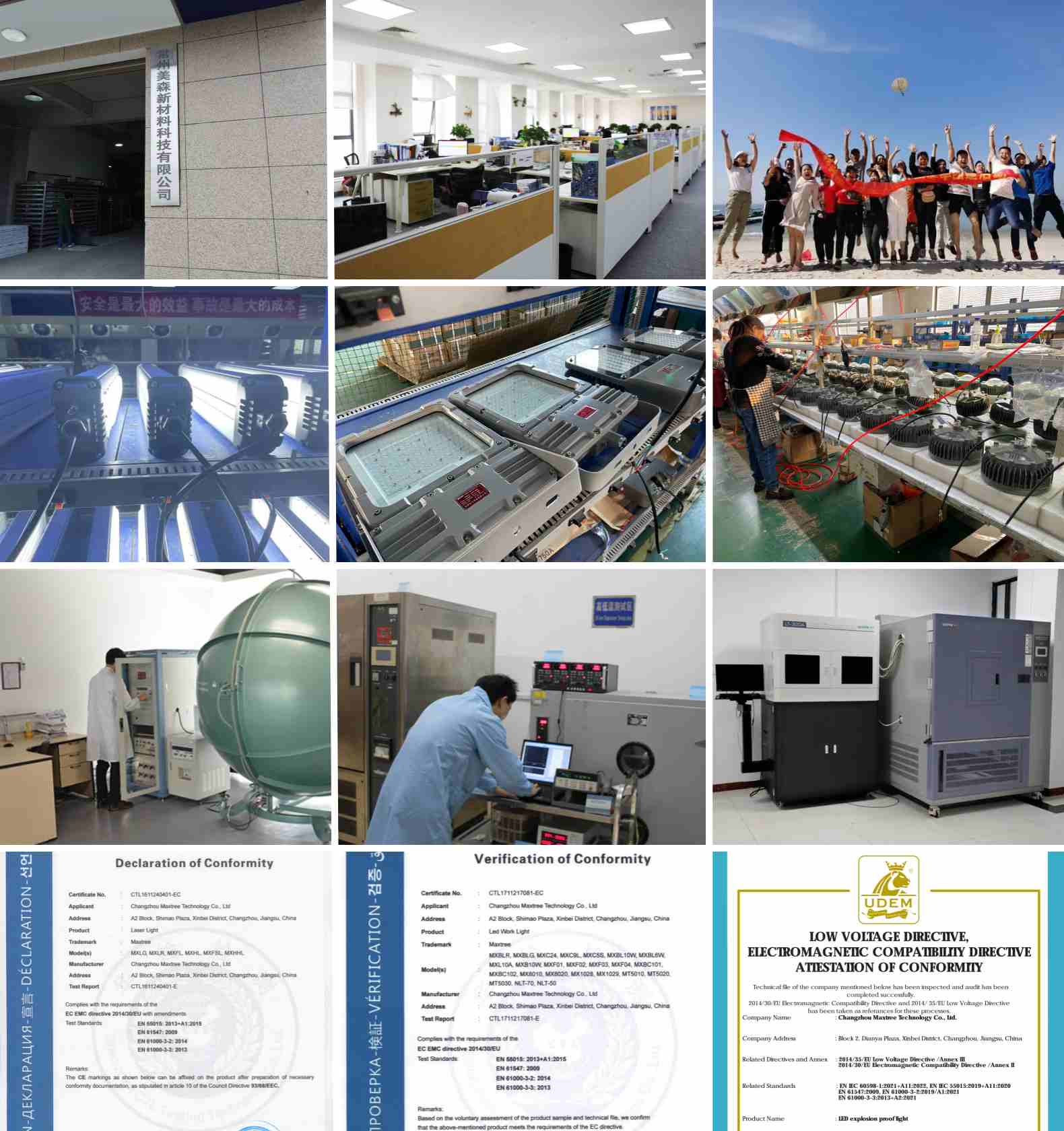

About Us
Lampsuite was established in 2016. It is a national high-tech enterprise that intearates R&D production, sales and service. The headquarters is located in Changzhou Dianya Plaza and serves as the leader of explosion proof lighting industry. There are more than 200 workers including the R&D team, technical engineers and other workers. We have more than 28 production lines. monthly output can reach 10000 units. With the German PHILPS, Cree and other international brand enterprises to cooperate fully, the introduction of advanced technology and production testing equipment at home and abroad, the realization of machining precision automation. Among them, Lampsuite Lighting upholds strict quality management, applies new ideas, new forces, new technologies, and is committed to R&D and production various kinds of industrial lighting fixtures, and provides professional customization according to the individual needs of the market such as oil, chemical, natural gas, marine platform, coal mine, public security, fire, railway, highway, port and other industries.
