Product Description - Explosion Proof Head LampProduct Features
Safety performance: Compliant with ATEX, CE certifications and WF2 anti-corrosion grade, the Explosion Proof Head Lamp ensures safe, reliable operation in hazardous environments.
Intelligent control: Offers three working modes (high light, working light, strobe) with free switching between high and working light, adapting the Explosion Proof Head Lamp to diverse on-site demands.

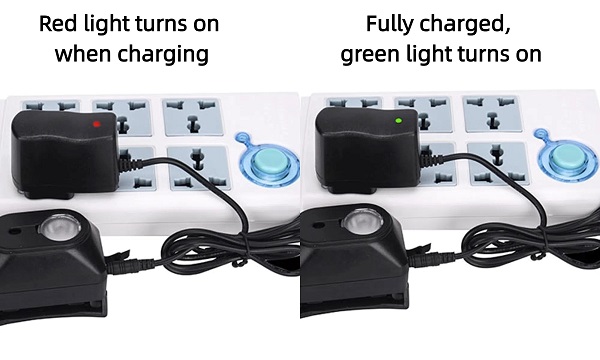

Charging management: Adopts intelligent constant current/constant voltage charging, equipped with overcharge, short circuit protection and charging display—effectively extending the service life of this Explosion Proof Head Lamp.
Power detection: Automatically switches high light to working light when battery power is low, providing uninterrupted illumination for emergency scenarios.

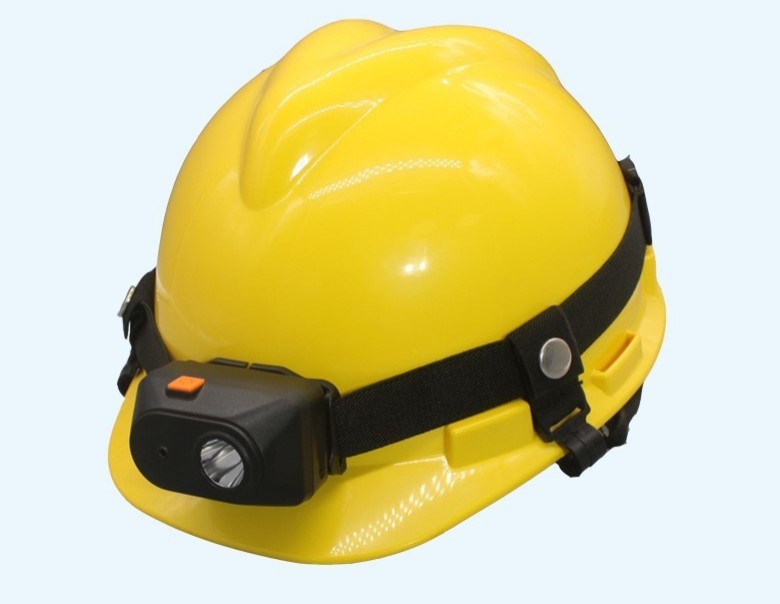

Usability: Directly wearable on the head or mountable on a helmet, with a freely adjustable lighting angle to match different operating postures.
Portability: Features a lightweight design (only 88g) and high flexibility, reducing user fatigue during long-term wear in high-intensity operations.
Product Parameters
|
| MXJW-5147 | 0.5W | 50lm | DC 3.7V |
| 1W | 100lm |
| COMMON | Model: | 5147 | Efficiency: | 100Lm/W |
| Power Factor: | >0.95 | Operating Temperature: | -20°C ~ +50°C |
| IP Grade: | IP65 | Anti-Corrosion Grade: | WF2 |
| CRI: | ≥70 | Light Source: | LED |
| Charging Time: | ≤8H | Service Life: | 100000H |
| Dimensions: | 60x40x40mm | Weight: | 88g |
| CERT | ATEX CE IP65 WF2 |
Product Details

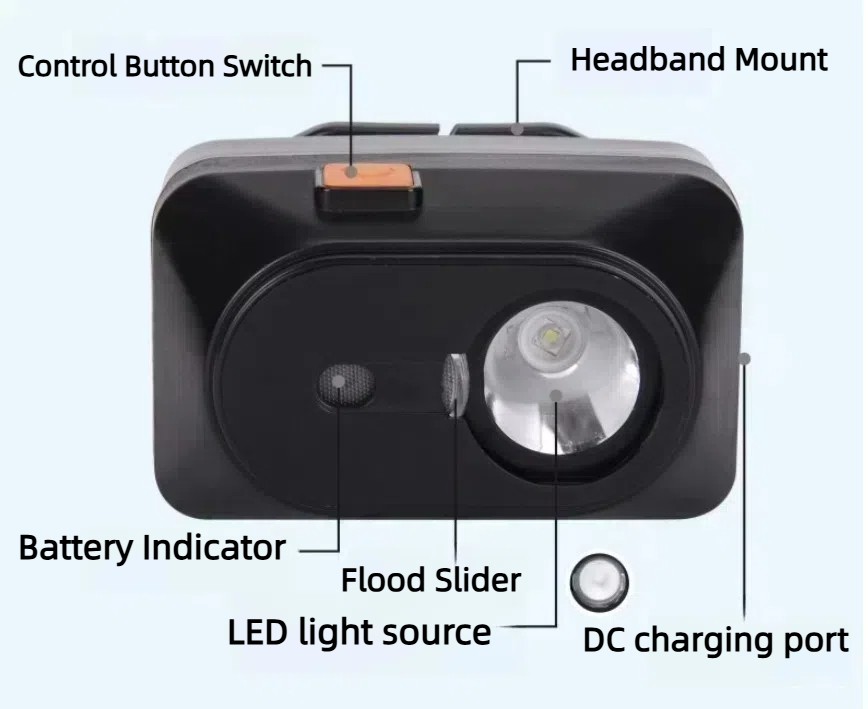

How to use the product
When using, lightly press the switch button to turn on the working light, press the second time to turn on the strong light, and lightly press again to turn off the light source. After long pressing the switch for 3 to 5 seconds, the light source is in a strobe state and can be used for warning and signal communication.
Three working modes: High brightness, working light, and strobe light.
Intelligent chip control. When the battery power is lower than 30%, the strong light will automatically switch to the working light state and turn on the low point prompt function, which is convenient for emergency use.

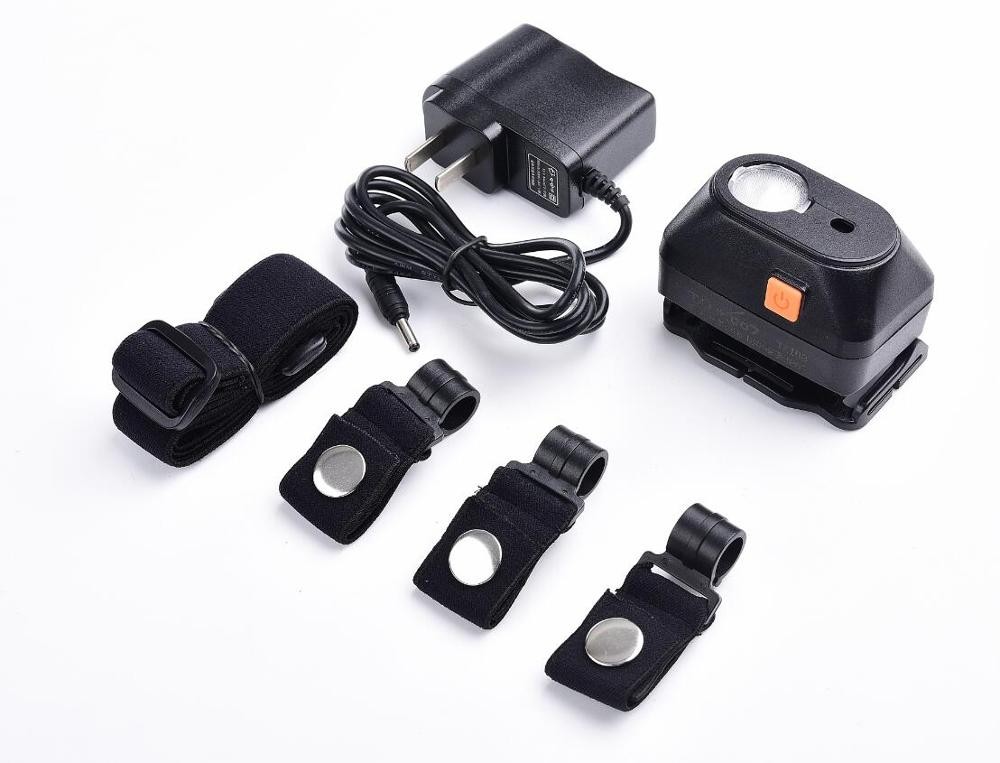

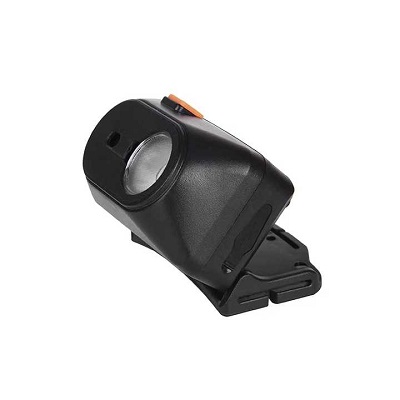

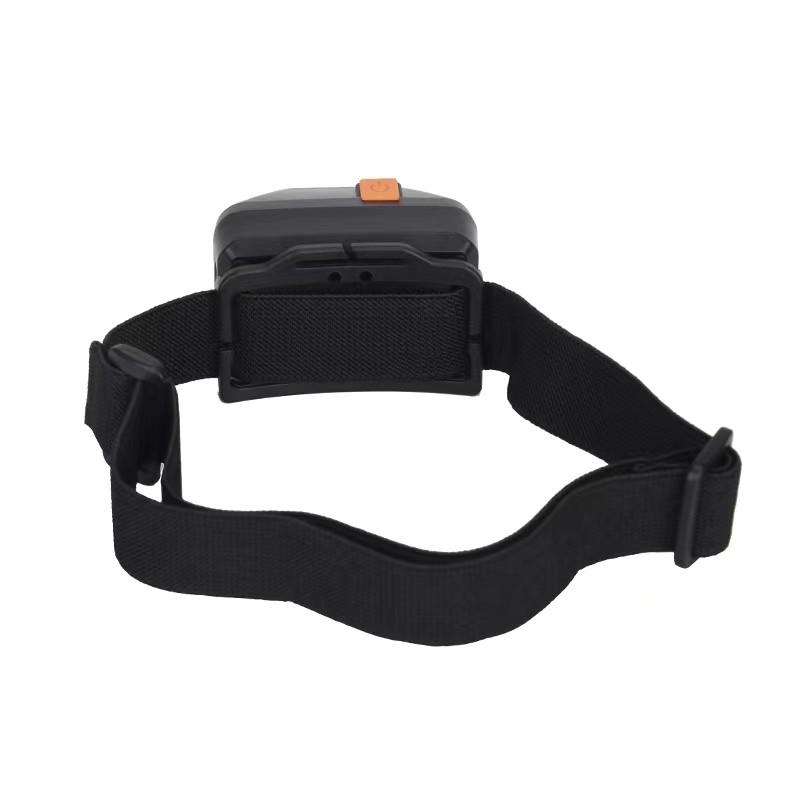

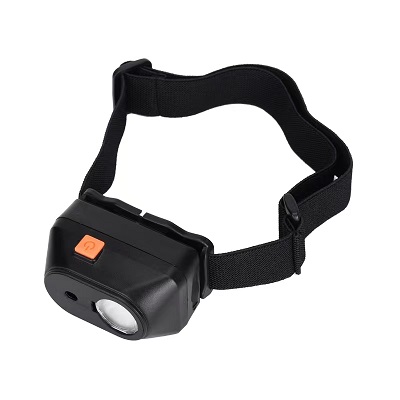

Product Display

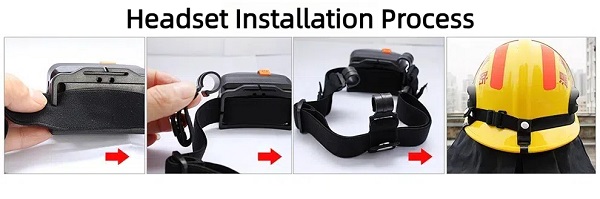

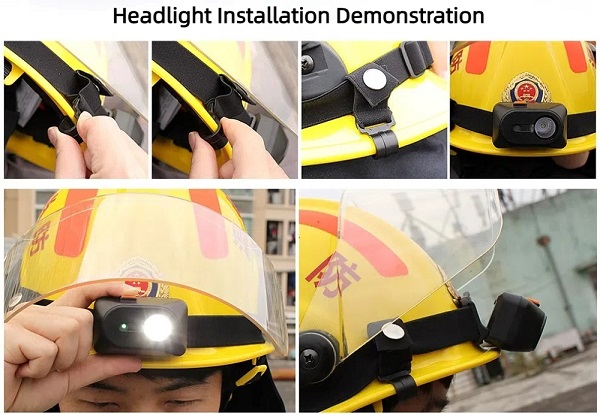

Product Install


Practical Application Diagram

Explosion Proof Head Lamp Applications
◆ Firefighting and emergency rescue
◆ Electric power and tunnel construction
◆ Petrochemical industry
◆ Coal mine and mine operation
◆ Shipping and marine operation
◆ Military industry and security patrol
◆ Medical and post-disaster rescue
◆ Other dangerous or special environment operations
