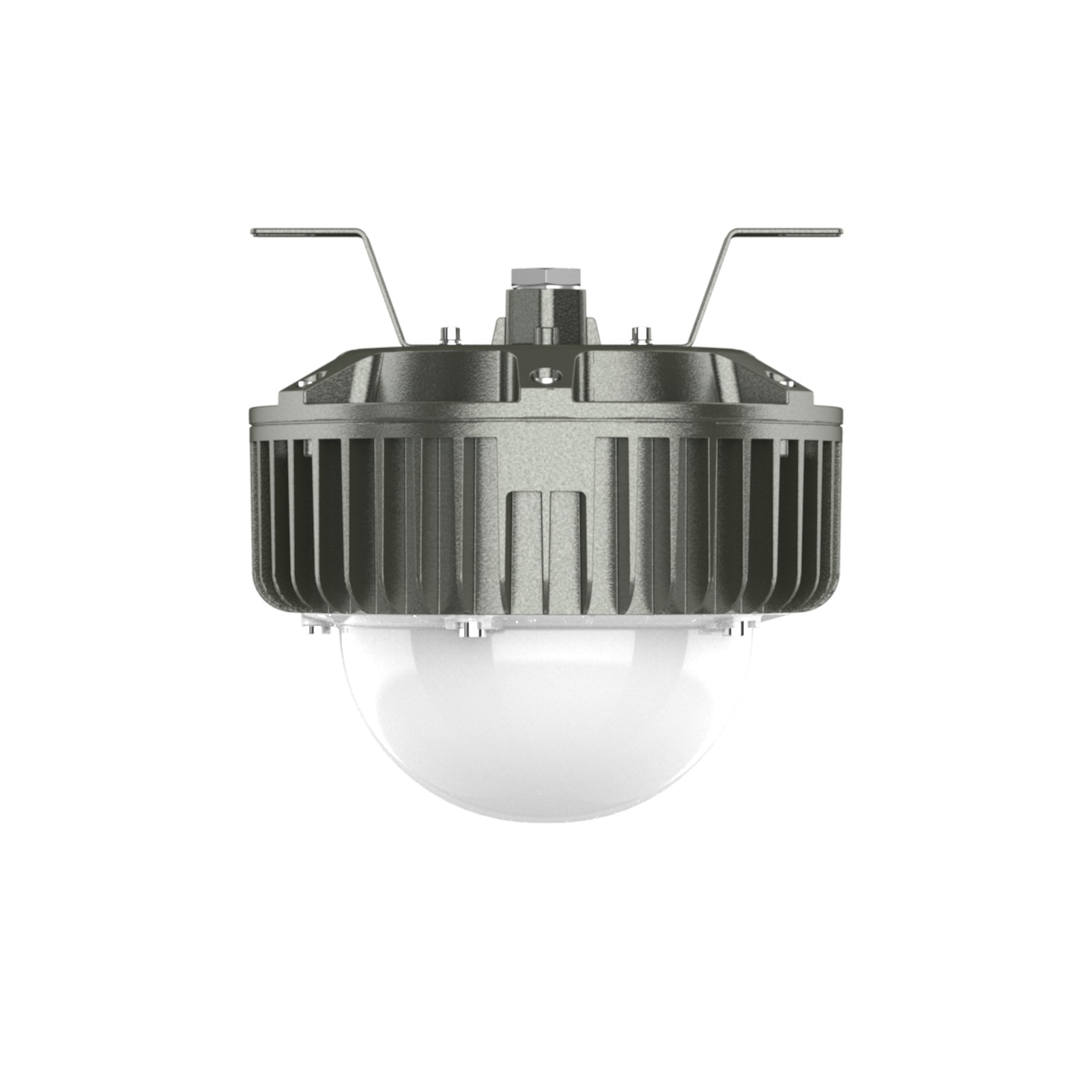

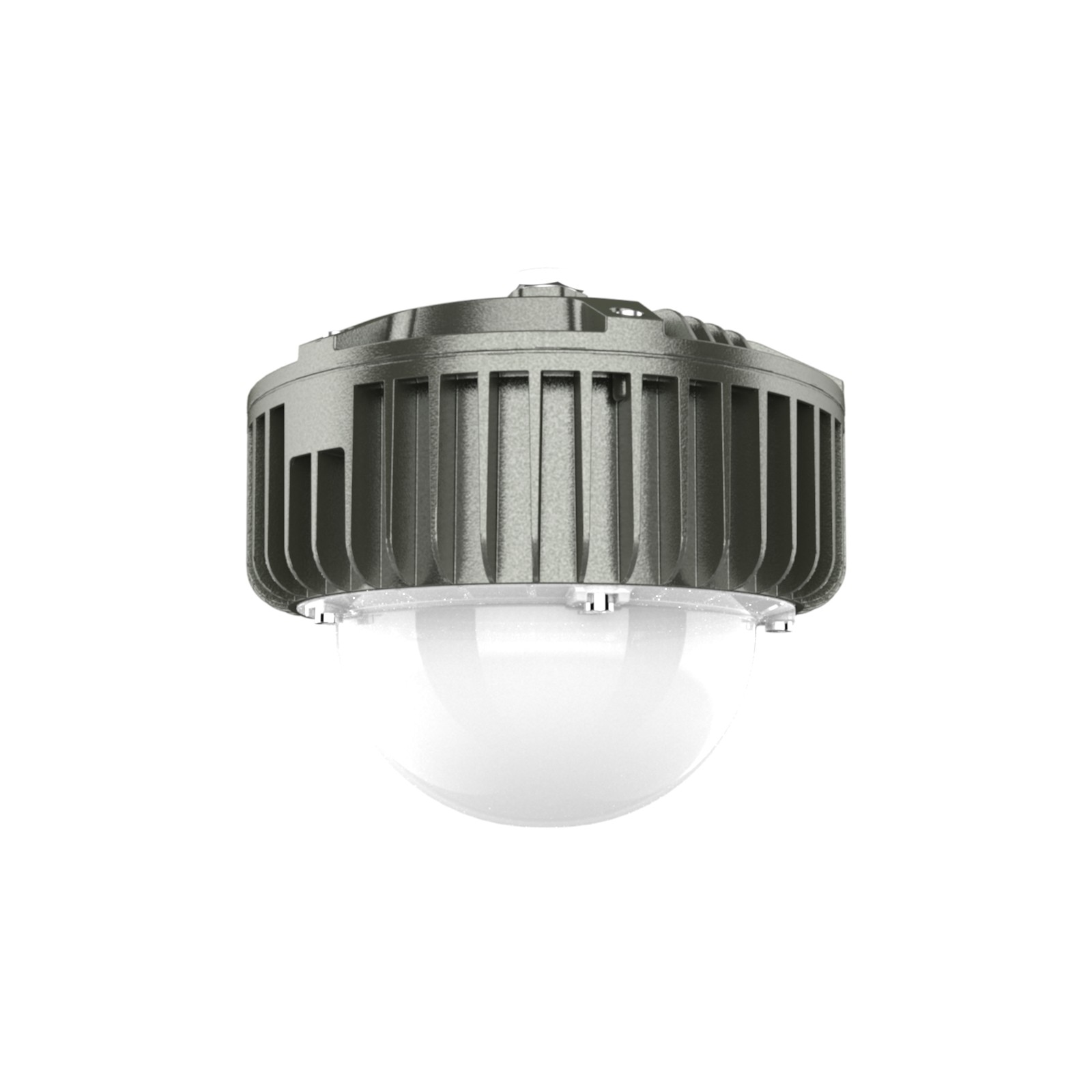

Anti Explosion Round High Bay Light

Explosion-proof lights usually have efficient lighting performance, which can improve the visibility of workers in hazardous environments, thereby improving work efficiency.Lampsuite specializes in manufacturing explosion-proof circular high bay lights, and provides efficient and durable explosion proof high bay LED lights. These lights are in compliance with ATEX certification and are suitable for hazardous environments. As a leading explosion proof lighting manufacturer, Lampsuite supports customization, offers a 5-year quality guarantee, and ensures fast delivery.

Inquire Now

Product Detail


Product Parameters

ITEM	WATT	LUMEN	VOLTAGE	CCT
MXEL-811	20W	2400lm	AC220V/AC110V/DC24V/DC12V	3000K 4000K 5000K 6500K
	30W	3600lm
	50W	6000lm
	60W	7200lm
	70W	8400lm
	80W	9600lm
	100W	12000lm
	120W	14400lm
OTHERS	Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor(motion, voice, light...), shell color etc.Digital Smart System(DALl, DMX,0-10V)
COMMON	MODEL:	811	Power:	10-120W
	EFFICIENCY:	120Lm/W	POWER FACTOR:	>0.95
	BEAM ANGLE:	90°	WORK TEMP:	-30ºC ~ 50ºC
	CCT:	3000K-6500K	ATEX LEVEL:	Zone1/Div1
	CRI:	Ra80	LED CHIPS:	CREE
	MATERIAL:	Aluminum	DRIVER:	Meanwell/Other
	IP GRADE:	IP66	LIFESPAN:	100000 Hours
	IK GRADE:	IK10	WARRANTY:	5 Years
	Ambient Temperature	-40ºC~ +55ºC,-40°F ~ +131°F
CERT	ATEX, CE,IP67, IK10,ROHS,ISO9001

Product Details

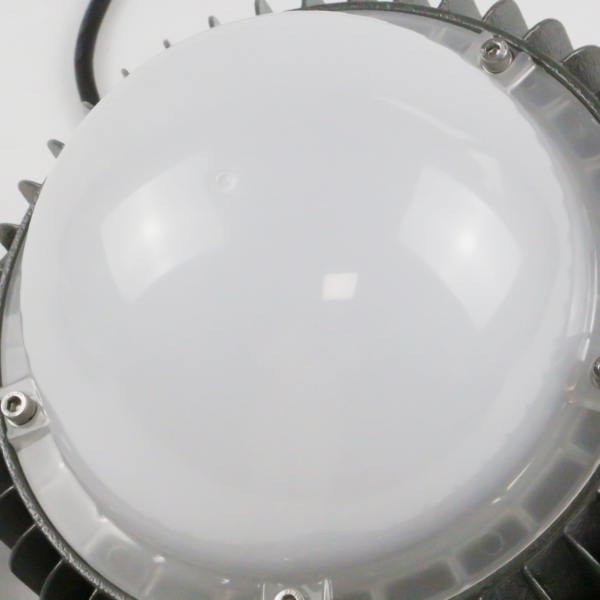

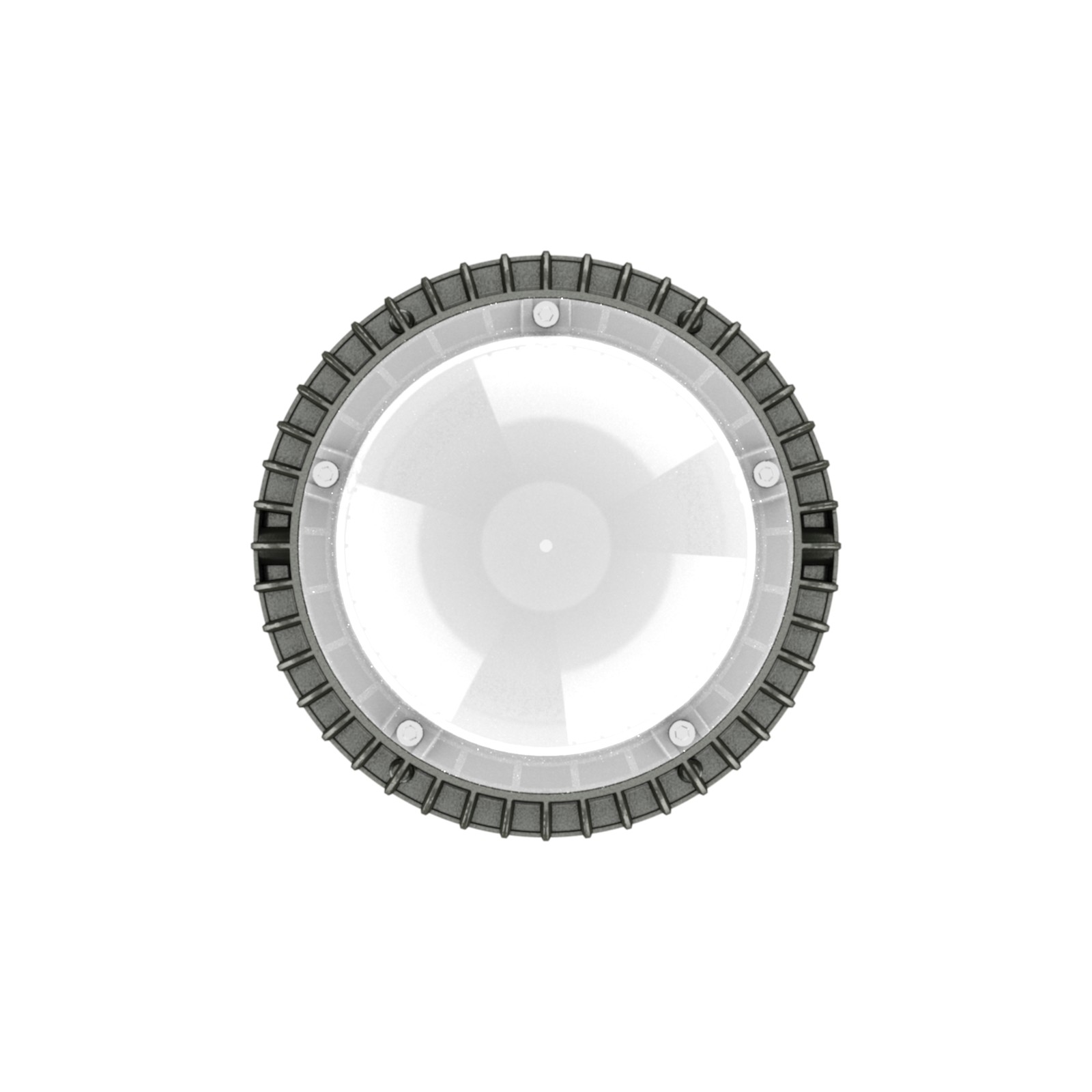

Tempered glass

Tempered glass is used in the design, specifically high borosilicate tempered glass, which offers exceptional durability and resistance to impact. This high-quality glass ensures enhanced safety and longevity, making it ideal for demanding environments. Additionally, it boasts an impressive light transmittance rate of approximately 95% to 98%, allowing for maximum illumination efficiency. To further improve performance, the inner wall of the glass is meticulously treated with a prism structure, effectively reducing glare and providing a more uniform and comfortable lighting experience.


Safety and explosion-proof, precision material selection

Designed and manufactured in strict accordance with the national explosion-proof standard GB3836 series documents, it has passed the inspection of the national explosion-proof agency and obtained the explosion-proof certificate and inspection report; it is made of high-density aluminum alloy with high pressure die-casting, which has high strength, impact resistance, and excellent thermal conductivity and heat dissipation performance; high-precision machining technology, explosion-proof and protective performance are guaranteed;

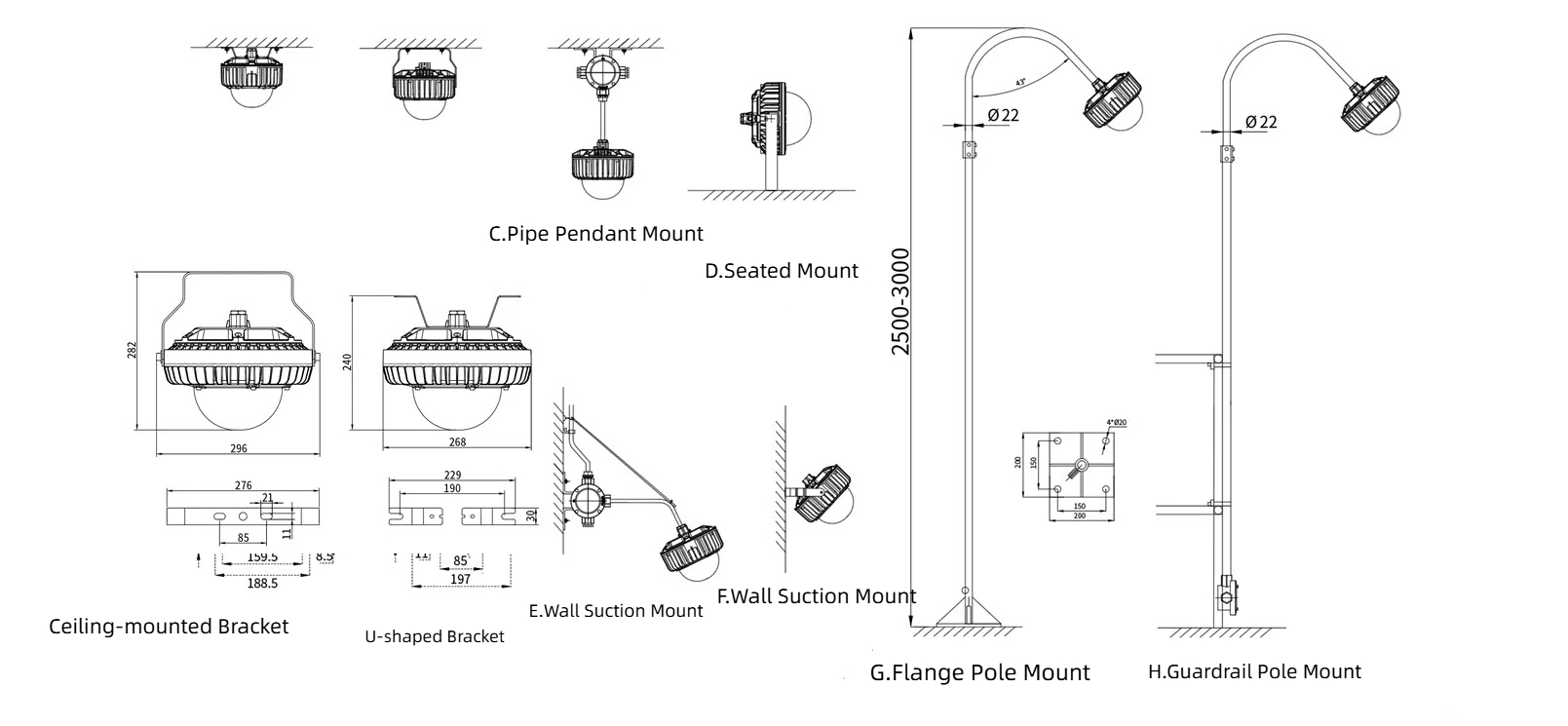

Product Installation
