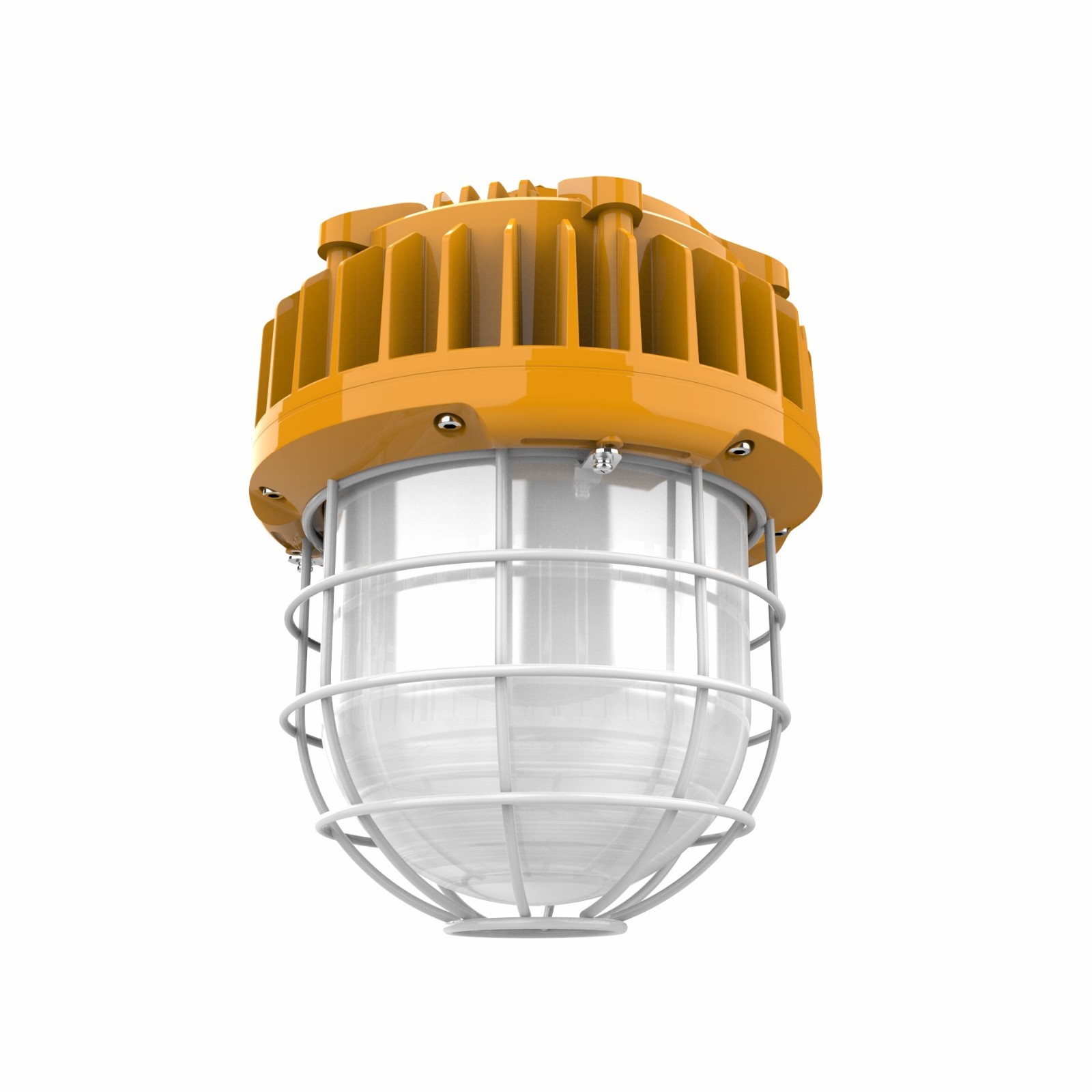

Explosion-proof high bay lights are a type of lighting equipment designed specifically for flammable and explosive environments. They are commonly used in factories, warehouses, gas stations, chemical plants, mines and other places.
Product Description
COMMON | MODEL: | 820 | ANTI-CORROSION GRADE: | WF2 |
EFFICIENCY: | 120Lm/W | POWER FACTOR: | >0.95 | |
RATED POWER: | 40-80W | FREQUENCY: | 50-60Hz | |
IP GRADE: | IP66 | BEAM ANGLE: | 120° | |
OPERATING TEMPERATURE: | -20~40ºC | STORAGE TEMPERATURE: | -20~40ºC | |
CRI: | ≥70RA | LED QTY: | 60/80pcs | |
EXPLOSION PROOF GRADE: | ExdIICT6 | BASE SPECIFICATIONS: | CREE3030 | |
LIFESPAN: | 100000 Hours | START-UP TIME: | ≤0.2 s | |
SIZE: | Φ225×189mm | WEIGHT: | 3.5kg | |
CERT | ATEX, CE, IP66, IK10,+ROHS,ISO9001 | |||
FEATURES | High Lumen, excellent CRI, accurate CCT; High brightness, no flickering; Ideal replacement for conventional incandescent lamp; No mercury and other hazardous materials, fully CE compliant; Various installation methods such as ceiling type, curved rod type, flange type, U-bracket(adjustable angles) are available. The transparent lampshade is made of diffused anti-glare Lingjing tempered glass, which has high tempering purity, corrosion resistance and impact resistance, and the light transmittance can reach 95%-98%; | |||
APPL | Oil and Gas Facilities Chemical Processing Plants Mining Operations Industrial Zones with Hazardous Materials Marine Environments Wastewater Treatment Plants Chemical Storage AreasRailway and Highway Tunnels High-Risk Industrial Zones Iia, Iib, Iic Explosive Gas Atmosphere Wet Fire Explosive Location | |||
Product Details

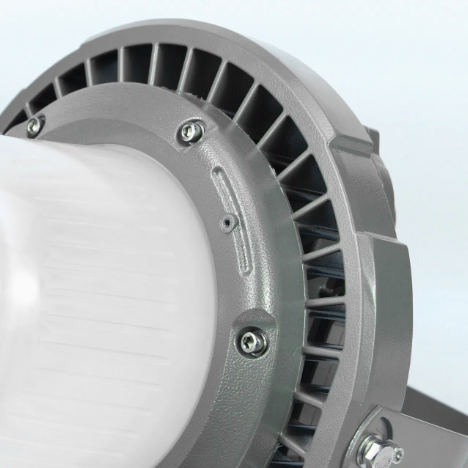

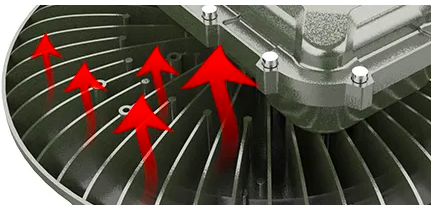

Heat dissipation performance
The light source heat sink of the lamp adopts an integrated die-casting process, with a sturdy and durable structure, excellent thermal conductivity and efficient heat dissipation. By optimizing the heat dissipation structure, the heat generated by the light source can be quickly discharged, effectively reducing the temperature of the lamp body, preventing light decay, and ensuring long-term stable operation. At the same time, good heat dissipation performance helps to extend the service life of the lamp and improve overall reliability. It is suitable for industrial and explosion-proof environments with long-term continuous lighting.
Ultra-high corrosion resistance

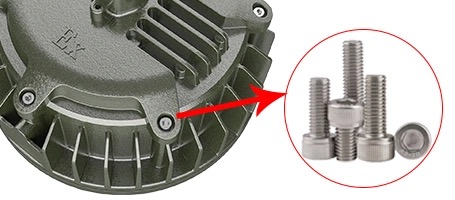

The surface of the radiator of the lamp is treated with high-voltage electrostatic spraying to form a solid protective layer, which effectively improves the corrosion resistance. The screws and fasteners are made of high-quality stainless steel to ensure that they will not rust or loosen after long-term use. Combined with precision processing technology, the lamp has excellent anti-corrosion, anti-rust and waterproof properties, and can operate stably in highly corrosive environments such as strong acids and strong alkalis. It is particularly suitable for complex working conditions with extremely high protection requirements.

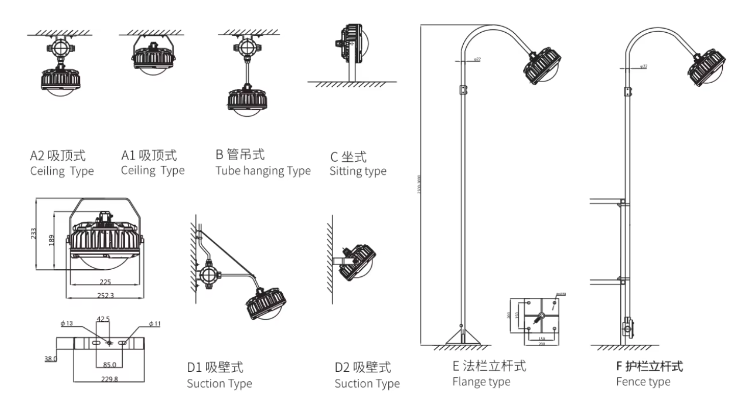

Product Installation

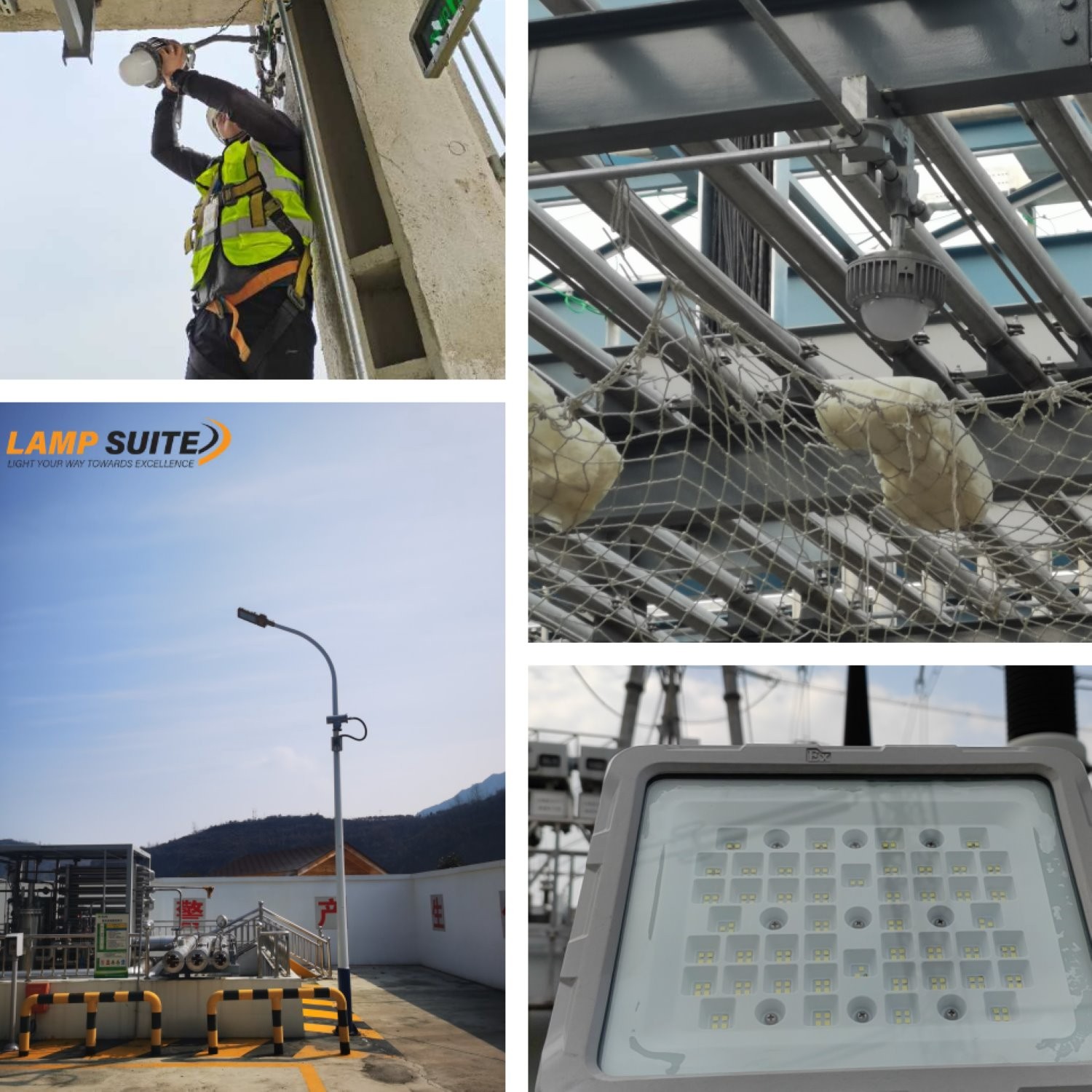

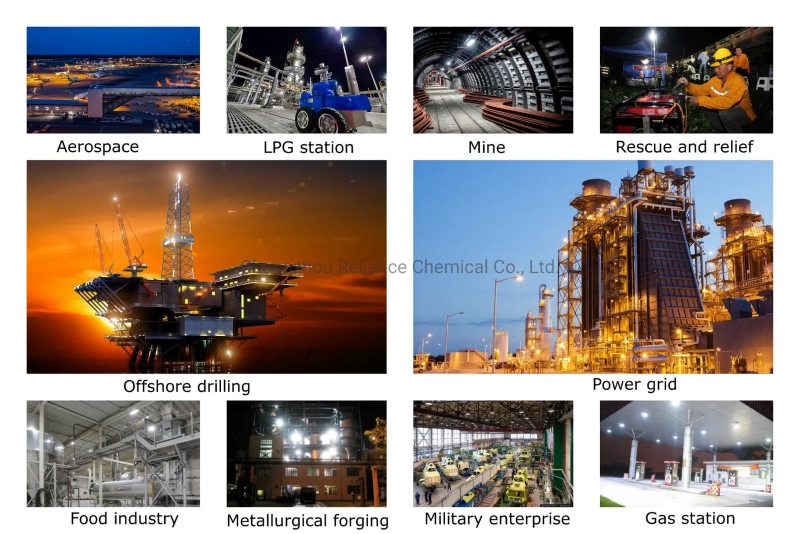

Product Application
Oil and Gas Facilities
Chemical Processing Plants
Mining Operations
Industrial Zones with Hazardous Materials
Marine Environments
Wastewater Treatment Plants
Chemical Storage AreasRailway and Highway Tunnels
High-Risk Industrial Zones
Iia, Iib, Iic Explosive Gas Atmosphere
Wet Fire Explosive Location
About Us

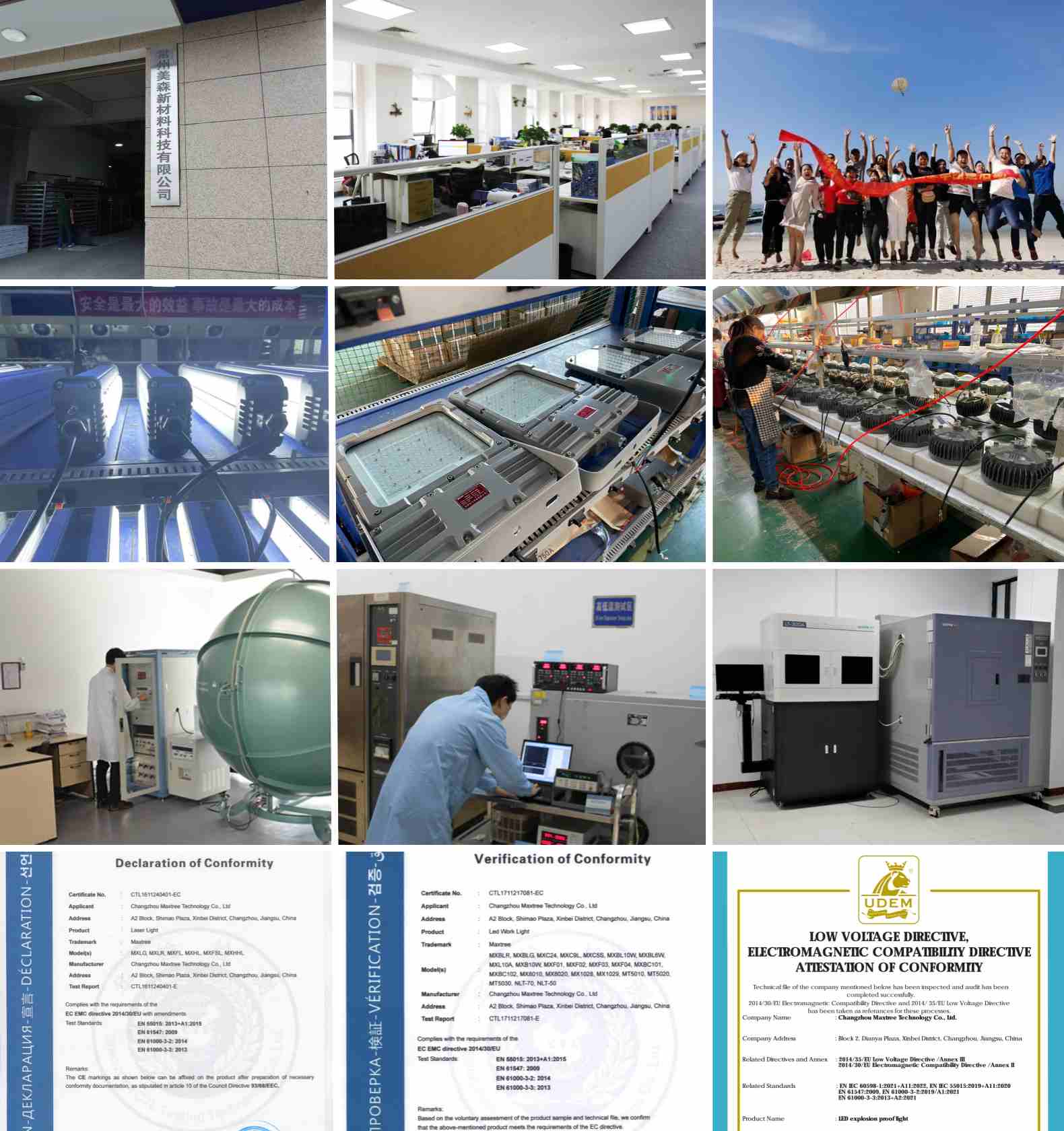

About Lampsuite
