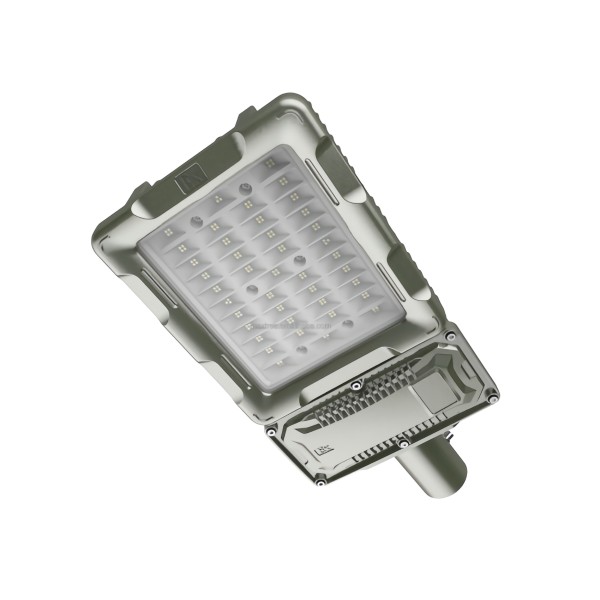

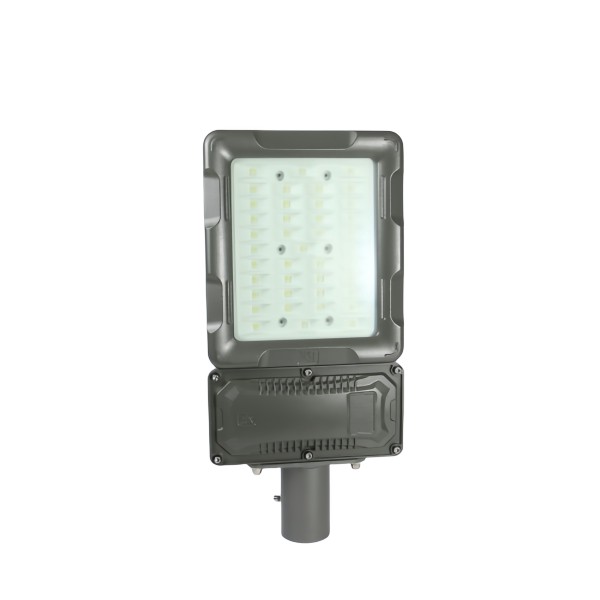

LED Flame Proof Street Light, also known as a hazardous location luminaire, is a specialized lighting fixture engineered to operate safely in environments with explosive gases, vapors, dust, or fibers. It features robust materials and precision construction to prevent ignition of hazardous substances, safeguarding personnel and property in high-risk areas.
● Certifications: Compliant with rigorous international standards including ATEX, IECEx, UL, and CSA, it meets all requirements for use in potentially explosive atmospheres.
● Enclosure Design: Its robust housing is constructed to contain internal explosions, preventing sparks or hot gases from escaping into the surrounding hazardous environment.
● Sealing: Equipped with high-performance seals and gaskets, the fixture blocks ingress of hazardous substances, maintaining structural integrity and operational safety.
● Impact Resistance: Built to withstand mechanical impact and external stresses, it minimizes damage risks in harsh industrial settings for consistent, reliable performance.
● Corrosion Resistance: Selected corrosion-resistant materials, paired with high-voltage electrostatic spraying on the lamp body and stainless steel fasteners, resist chemical and environmental erosion for long-term durability.
● Temperature Ratings: The fixture operates safely within a -20℃~40℃ range, adapting seamlessly to extreme conditions common in hazardous locations.

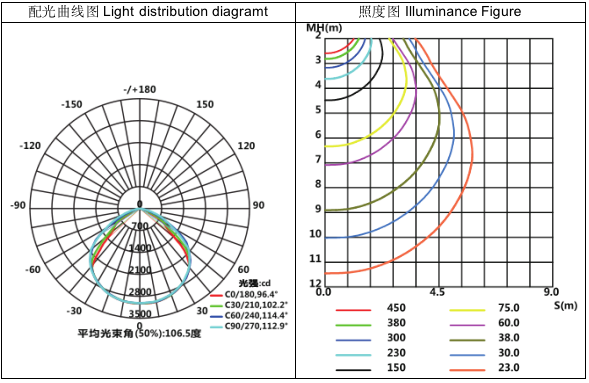

● Efficient Lighting: Despite its rugged design, it delivers 120Lm/W high efficiency and uniform illumination (100° beam angle), enhancing visibility and safety in hazardous areas while reducing energy consumption—true to the LED Flame Proof Street Light's core advantage of balancing performance and safety.
High Quality Chip,High Light Efficiency
The LED Flame Proof Street Light adopts branded LED light-emitting chips, boasting high brightness and exceptional efficiency (over 120Lm/W). With stable performance, the chips offer an average service life of up to 100,000 hours. Equipped with SMT array chip technology, it features excellent thermal conductivity and low light attenuation, ensuring consistent illumination quality over long-term use.

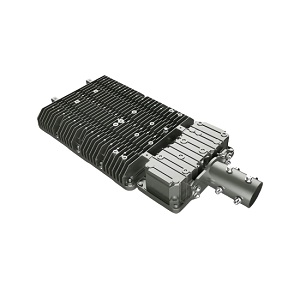

Better Heat Dissipation
Engineered with an air diversion heat dissipation structure, the LED Flame Proof Street Light uses a radiator made of special die-cast ADC12 alloy aluminum—integrally formed via high-pressure die-casting for high strength, fast heat conduction, and powerful heat dissipation. It also applies 3.0 thermal conductivity silicone grease to accelerate heat transfer, effectively preventing overheating and extending the fixture's lifespan.

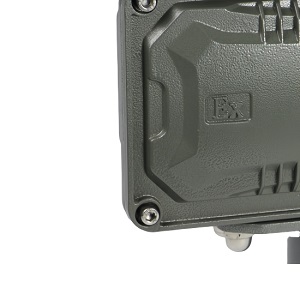

Weatherproof
Fitted with special silicone sealing rings (anti-aging, high/low temperature resistant, and strong sealing), the LED Flame Proof Street Light achieves an IP66 protection rating through high-precision machining. Its lamp body surface is treated with high-voltage electrostatic spraying, and screw fasteners are made of stainless steel, delivering superior corrosion and rust resistance—ideal for harsh environments with strong acids, alkalis, and extreme weather.
Safety and Precision,Material Selection
Designed and manufactured in strict compliance with national explosion-proof standard GB3836 series, the LED Flame Proof Street Light has passed inspections by national explosion-proof authorities and obtained relevant certificates. Crafted from high-density aluminum alloy via high-pressure die-casting, it offers high strength, impact resistance, and excellent thermal conductivity. High-precision machining further guarantees reliable explosion-proof and protective performance for high-risk scenarios.

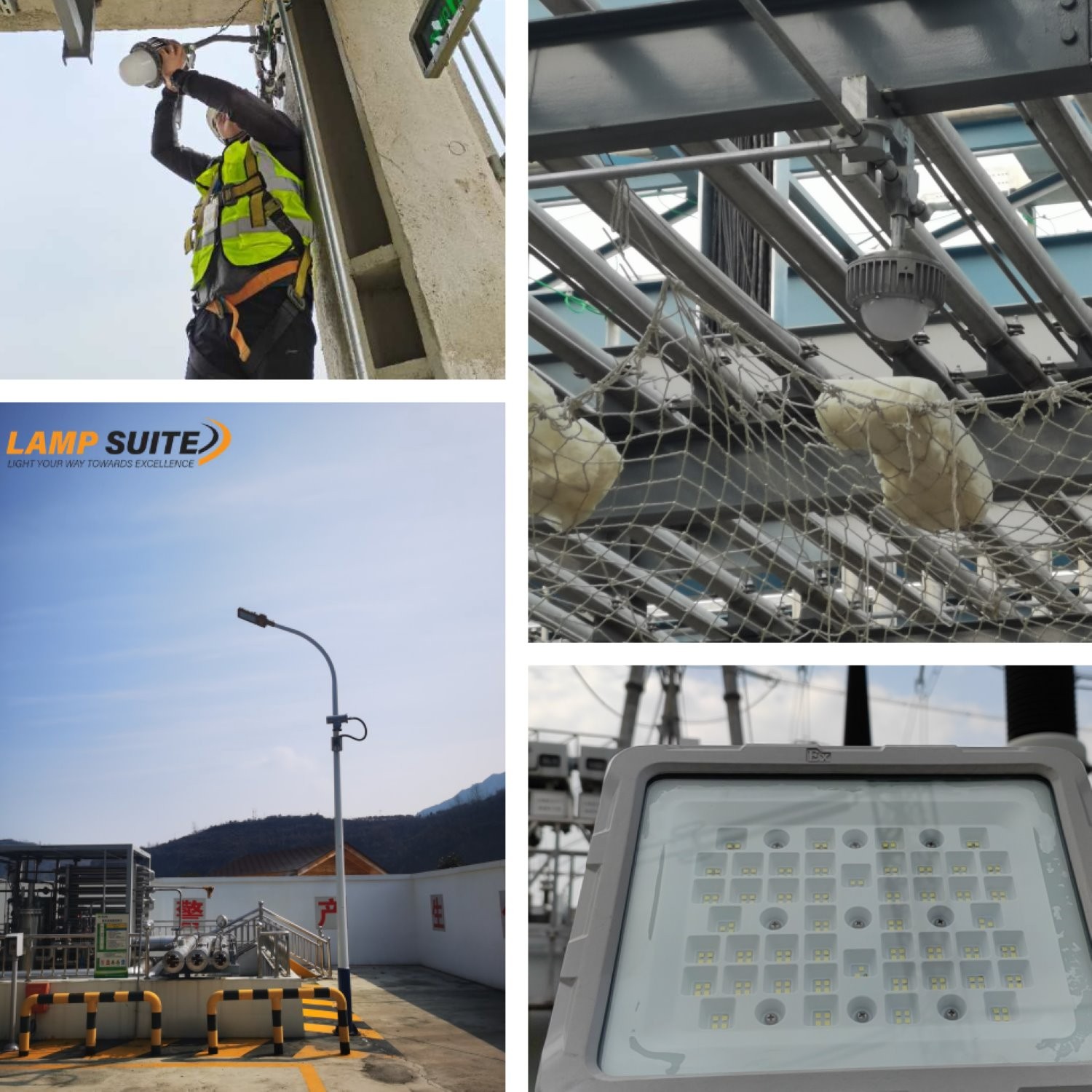

●Warehouse
●Paint Shop
●Plastic Manufacturing
●Oil and Gas Station
●Sports Venues
●Pharmaceutical Sector
●Water Treatment Facilities
●Transportation
●Food and Beverage Processing
●Factory and Industry
●Dust Explosion Area
